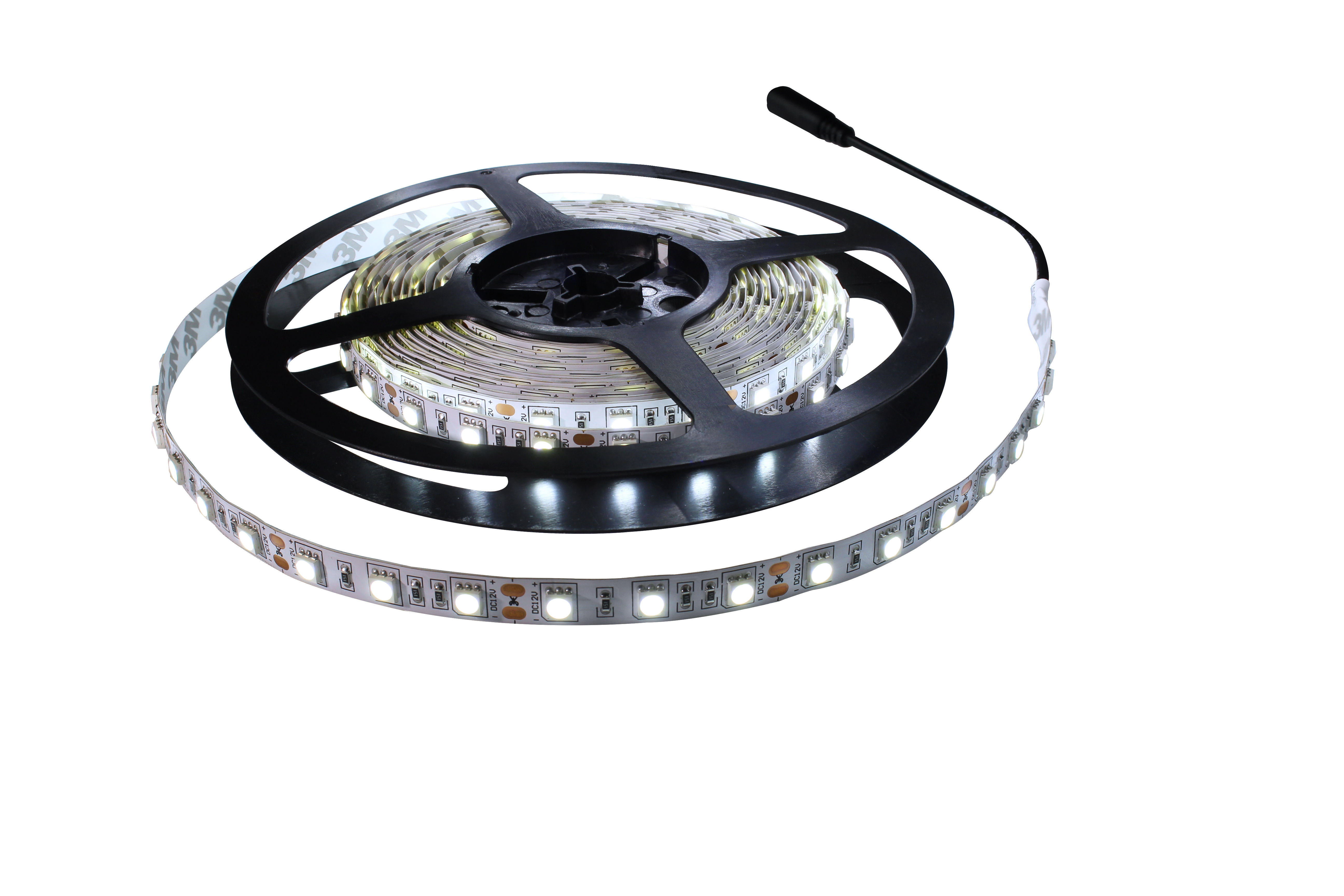

R12V-5M-D5-WW

:: LED: SMD5050 chip spaced 5/8" on center,19 per foot, .08 was each chipDimmable using a magnetic driverWith RGB models controller controls all functionsincluding dimmingCutting increment: can be cut every 3 LEDs,approximately every 2 inchesWorking voltage: 12V DC (LED driver required) Power: 4.4 was per foot, 72 was per 16.4-foot rollRoll length: 16 feet-5 inchesLumens: 254 lumens per foot, 14.2 lumens perLED, 4425 lumens per rollCRI: 80, maximum run is 16 feet120o beam angleIncludes (connected 1 female ribbon-to-power supply connector) and 1 male plug for connection to next ribbon

:: SMD LEDs offer incredible brightness, energy efficiency and color rendering
:: Low heat, easy installation, environmentally friendly and maintenance free for years
:: Indoor series ideal for under cabinet, soffit, cove, display cases and toe kick lighting, task lighting
:: Outdoor series ideal for decks, eaves, landscape and any location where ribbon is exposed to dust or water.
:: 3M double sided tape is pre-installed under each ribbon
