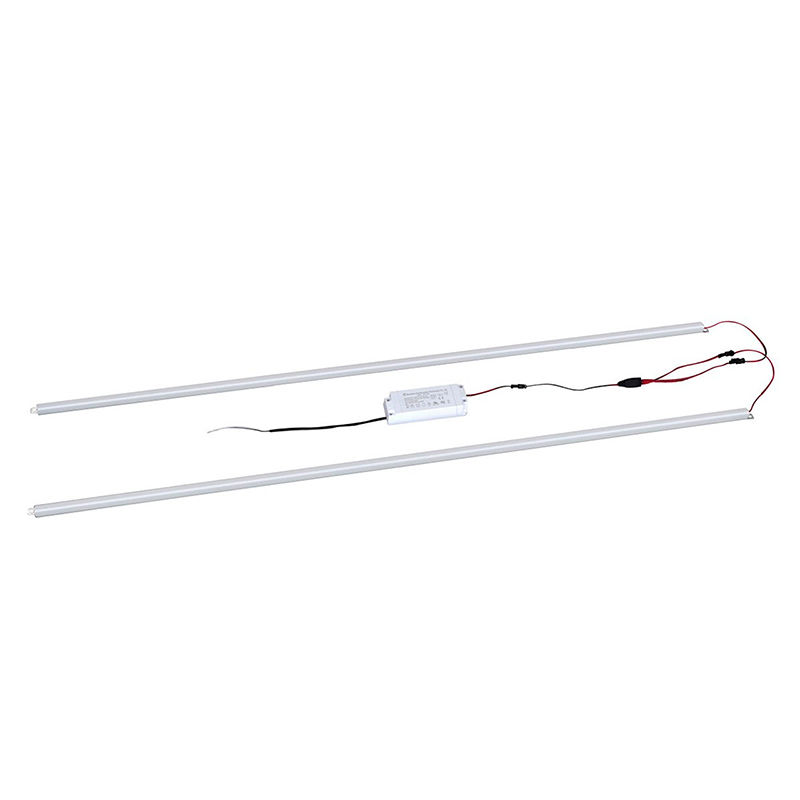

RMS-3FT-35W-MCTP 3FT 20~35W MCTP Magnetic Retrofit Strip Kit, 2-Tube, RMS Series
Technical Specs
- :: Wattage (Selectable): 20W / 28W / 35W
- :: Lumen Output: 2,800LM / 3,920LM / 4,900LM
- :: Voltage: 120-277V AC, 50/60Hz
- :: Efficacy: 140 LPW
- :: Power Factor: >0.9
- :: THD: <20%
- :: Dimming: 0-10V Dimmable
- :: Color Temperature (MCTP Selectable): 2700K / 3000K / 3500K / 4000K / 5000K
- :: CRI: ≥80
- :: Selection: MCTP Multi Color Temperature and Multi Power/Wattage, Selectable Switch on Driver
- :: Configuration: 3FT X 2 (Two Tubes)
- :: Tube Dimensions: 36-inch (L) X 5/8-inch X 5/8-inch
- :: Driver Dimensions: 11-1/4-inch X 1-inch X 1-1/4-inch
- :: Mounting: Magnetic Bar on Back of Driver and Tubes, Easy Connectors Provided
- :: Operating Temperature: -20-degreeF to 115-degreeF
Applications
- :: This RMS kit uses two 3-foot tubes to fit mid-length fluorescent housings that fall between the 2FT and 4FT sizes. It shares the same driver-mounted selectable wattage and color temperature as the rest of the series, landing in a 20W to 35W range with up to 4,900LM. Westgate offers it for 3-foot strip and wrap retrofits in commercial and institutional spaces where the common 4-foot kit does not match the existing fixture length.with unparalleled ease. Designed with convenience in mind, installation is a breeze thanks to the included magnets on both the tube and external driver, ensuring a hassle-free upgrade process. With adjustable power and CCT (Correlated Color Temperature), this retrofit kit empowers users to customize their lighting experience to suit any envi
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 RMS-3FT-LENS INST SPEC | 3FT Frosted Lens Kit for RMS Magnetic Retrofit Strip Kits |
