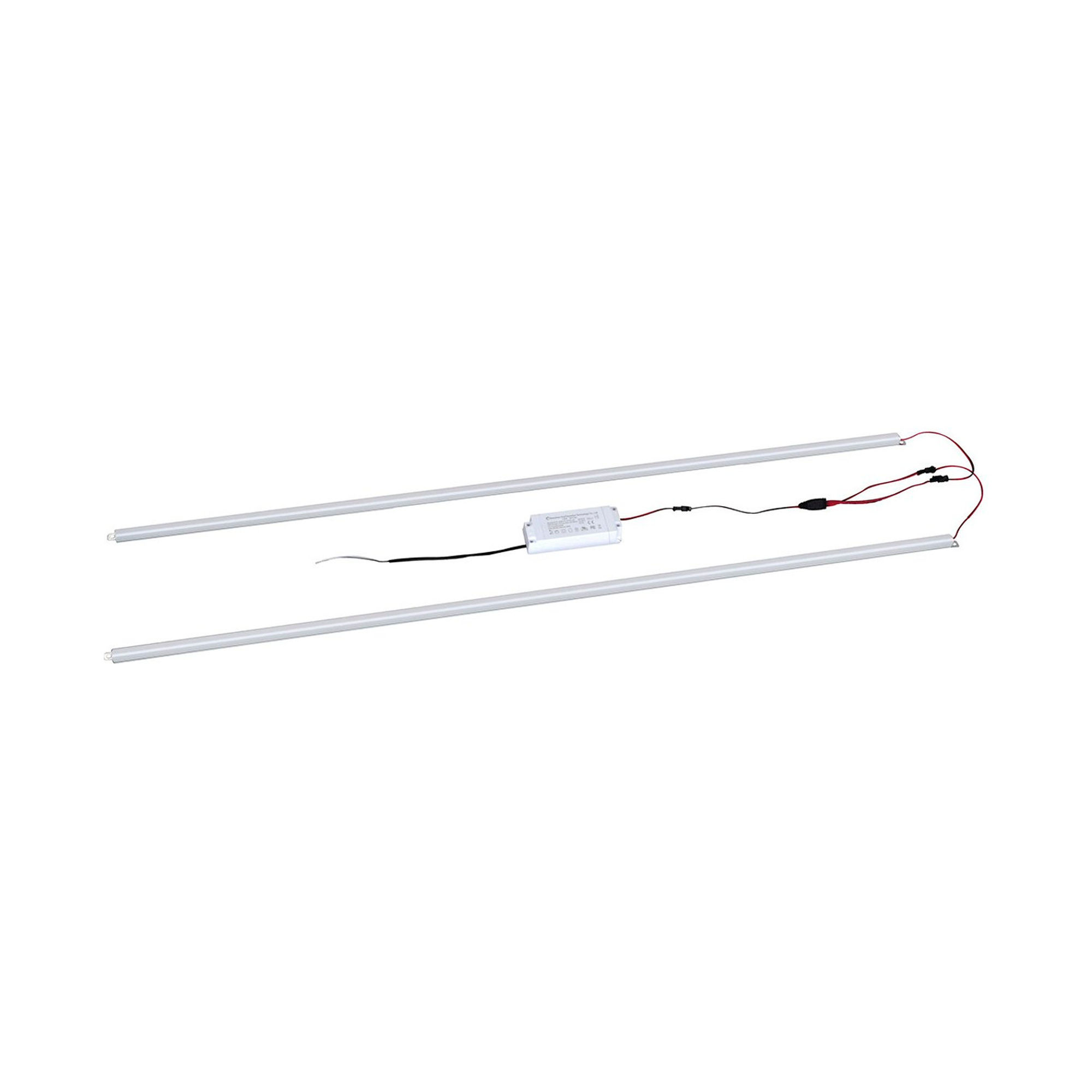

RMS-4FT-35W-MCTP 4FT 20~35W MCTP Magnetic Retrofit Strip Kit, 2-Tube, RMS Series

:: Wattage (Selectable): 20W / 28W / 35W
:: Lumen Output: 2,800LM / 3,920LM / 4,900LM
:: Voltage: 120-277V AC, 50/60Hz
:: Efficacy: 140 LPW
:: Power Factor: >0.9
:: THD: <20%
:: Dimming: 0-10V Dimmable
:: Color Temperature (MCTP Selectable): 2700K / 3000K / 3500K / 4000K / 5000K
:: CRI: ≥80
:: Selection: MCTP Multi Color Temperature and Multi Power/Wattage, Selectable Switch on Driver
:: Configuration: 4FT X 2 (Two Tubes)
:: Tube Dimensions: 48-inch (L) X 5/8-inch X 5/8-inch

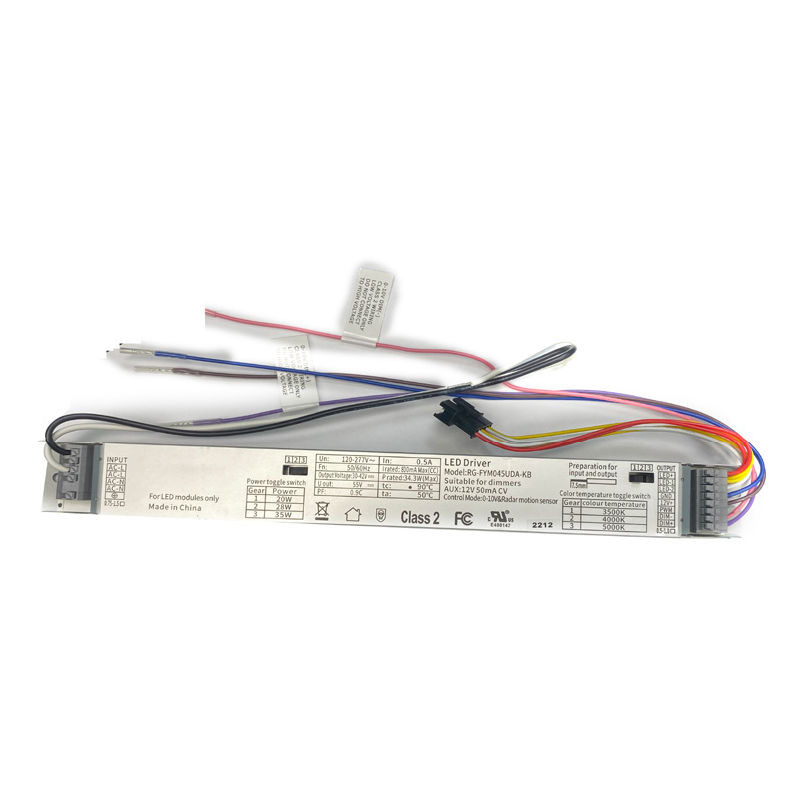

:: Driver Dimensions: 11-1/4-inch X 1-inch X 1-1/4-inch

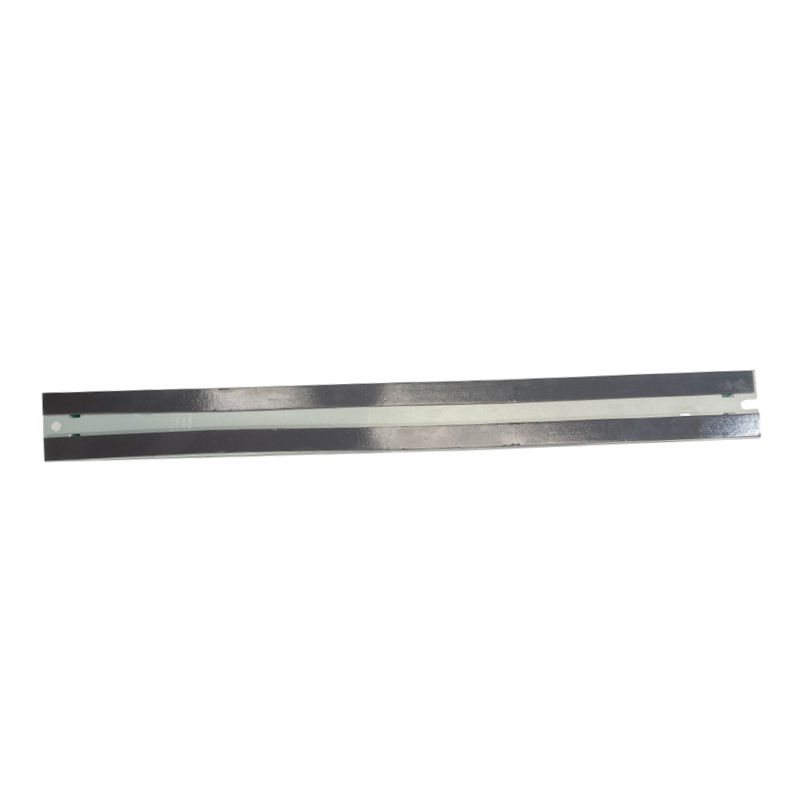

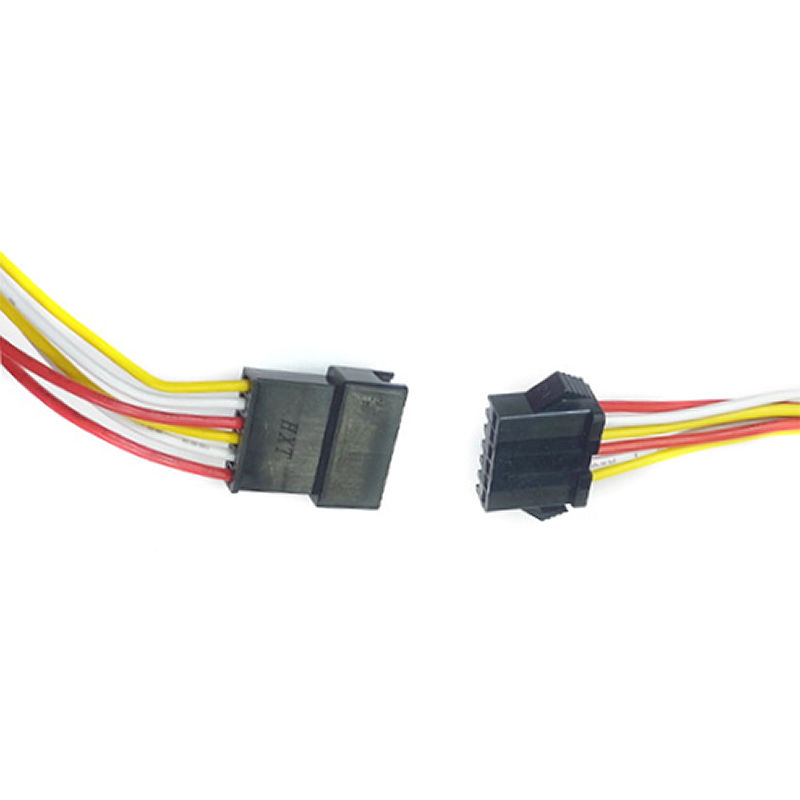

:: Mounting: Magnetic Bar on Back of Driver and Tubes, Easy Connectors Provided
:: Operating Temperature: -20-degreeF to 115-degreeF

:: This is the standard-output 4-foot RMS kit, pairing two 4-foot tubes with the external driver for the most common fluorescent housing size. Its 20W to 35W selectable range covers typical office and retail light levels, and it sits below the higher-output 4FT-46W kit for jobs that do not need maximum lumens. Westgate built it as the go-to magnetic retrofit for standard 4-foot troffers, wraps, and strip fixtures.with External Driver – a game-changer in lighting solutions. This versatile kit seamlessly transforms any fluorescent housing into a high-performing LED system with unparalleled ease. Designed with convenience in mind, installation is a breeze thanks to the included magnets on both the tube and external driver, ensuring a hassle-free upgrade process. With adjustable power and CCT (Correlated Color Temperature), this retrofit kit empowers users to customize their lighting experience to suit any environment or preference. Whether it’s upgrading existing setups or embarki
