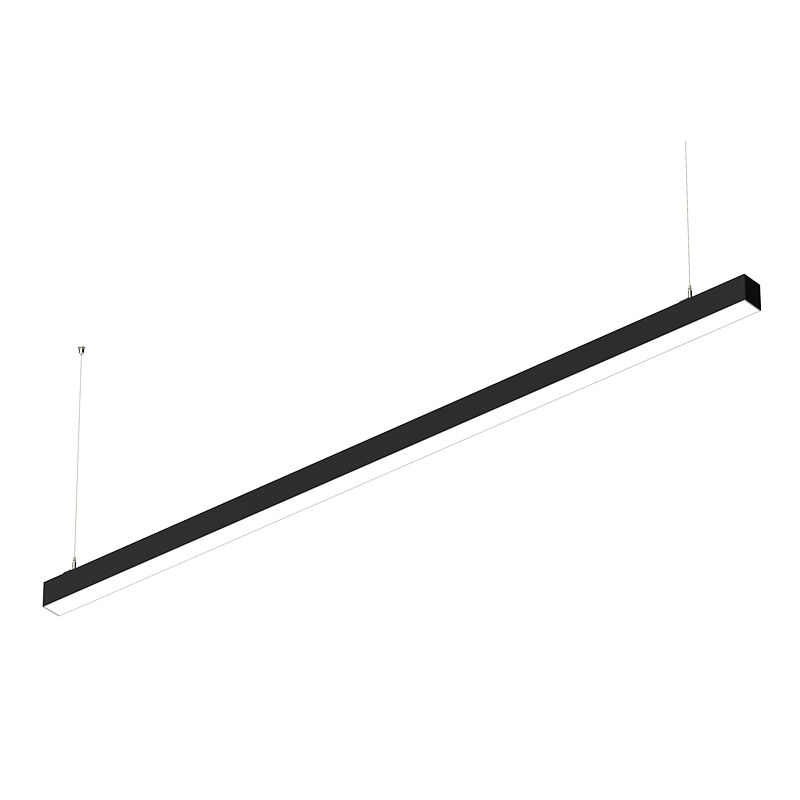

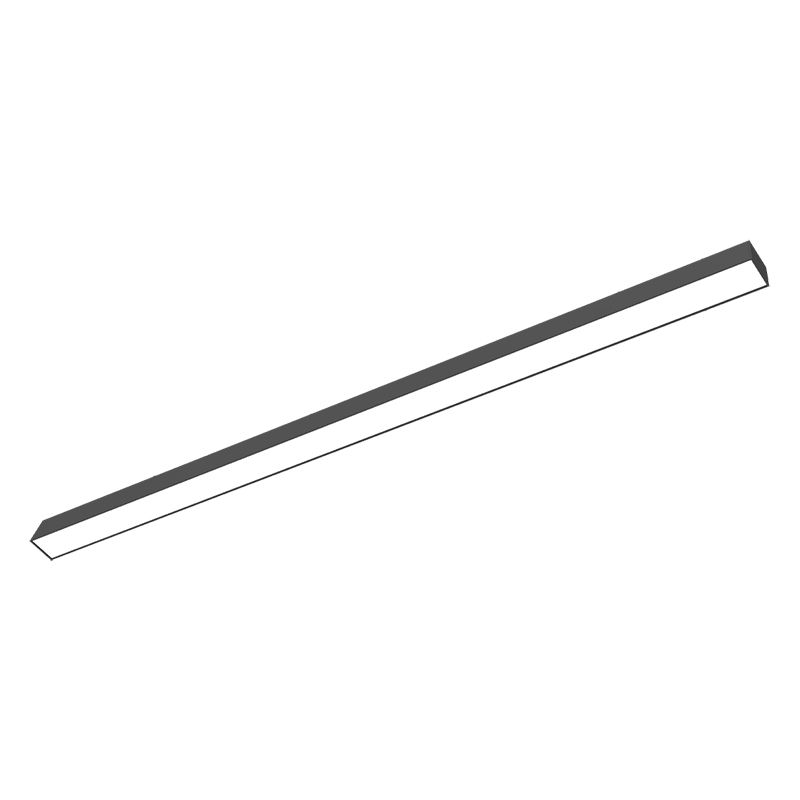

SCE-8FT-70W-MCTP-D-BK Black 8ft 50W/60W/70W Power and CCT Adjustable Linear Light
Technical Specs
- :: Input Voltage: 120-277VAC, 50/60Hz
- :: Wattage: 50W/60W/70W field-selectable
- :: Power Factor: >0.95
- :: Efficacy: 110 LM/W
- :: Lumens: 5500LM (50W) / 6600LM (60W) / 7700LM (70W)
- :: Color Temperature: 3500K/4000K/5000K field-selectable
- :: CRI: ≥80
- :: Dimming: 0-10V dimmable
- :: Beam Angle: 104.8°(H) x 100.5°(V)
- :: BUG Rating: B3-U3-G1
- :: Lens: Opal polycarbonate, direct (down) lighting
- :: Housing: Aluminum with matte finish, low-profile design
- :: Housing Finish: Black
- :: Dimensions: 2-inch (D) x 96-inch (W) x 2-1/4-inch (H)
- :: Mounting: Surface or suspended, with T/L/X linking joints on both ends
- :: IP Rating: IP54
- :: Operating Temperature: -13°F to 104°F
- :: Rated Life: 50,000 hours
- :: Warranty: 5 years
- :: Certifications: UL Listed, DLC
Applications
- :: : The Black 8ft SCE linear light delivers high-output, low-glare architectural illumination for large offices, hotels, corridors, conference halls, retail, and educational spaces, with field-selectable power and color temperature to match nearly any spec from one fixture. It surface-mounts or suspends and links via T/L/X joints for long continuous runs. This Black-finish 8ft model suits darker or accent ceilings and modern interiors at the longest length, differing from the White and Silver finishes.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Length | Color | ||
|---|---|---|---|---|---|
 SCL-CS1-6FT SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Non-Power Side | ||||
 SCL-CS1P-6FT SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Power Side with Cord | ||||
SCL-CS1P-6FT-NC SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Power Side without Cord | ||||
 SCE-ULM-8FT-MCTP-D SPEC IES | 8ft Uplight Module for SCE Series Linear Light | 8FT | |||
 SCE-SB-BK SPEC | Black Straight Linking Bracket for SCE Series Linear Light | Black | |||
 SCE-LB-BK SPEC | Black L Linking Bracket for SCE Series Linear Light | Black | |||
 SCE-XB-BK SPEC | Black X Linking Bracket for SCE Series Linear Light | Black | |||
 SCE-TB-BK SPEC | Black T Linking Bracket for SCE Series Linear Light | Black | |||
 SCE-WM-KIT-SIL SPEC | Field-Installed Wall-Mounting Kit for SCE Series Linear Light | Silver | |||
 SCL-RS-12 SPEC | 12-inch Suspension Rod Kit for SCE Series Linear Light | ||||
SCL-RS-18 SPEC | 18-inch Suspension Rod Kit for SCE Series Linear Light | ||||
SCL-RS-24 SPEC | 24-inch Suspension Rod Kit for SCE Series Linear Light | ||||
SCL-RS-36 SPEC | 36-inch Suspension Rod Kit for SCE Series Linear Light | ||||
SCL-RS-48 SPEC | 48-inch Suspension Rod Kit for SCE Series Linear Light | ||||
 SCL-ASC-500FT SPEC | 1/16-inch 500FT Roll Steel Aircraft Suspension Cable | ||||
 SCL-6FT-SJTW18/5 SPEC | White 6FT SJTW 18 AWG 5-Conductor Suspension Power Cord | ||||
| Heavy-Duty Auxiliary Hook for up to 1/16" Aircraft Cables with Cable Adjustment | |||||
 SCL-GS10 SPEC | Adj. 10ft. 1/16in Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top | ||||
SCL-GS20 SPEC | Adj. 20ft. 1/16in. 1.5mm Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top | ||||
SCL-6FT-SJTW18/6 SPEC | White 6ft. Cord, SJTW 18 AWG 6-Conduct (WH/BK/GN/PU/GY + Red for Emergency) | ||||
| Black 12ft. Cord, SJTW 18 AWG 5-Conduct (WH/BK/GN/PU/GY) |
