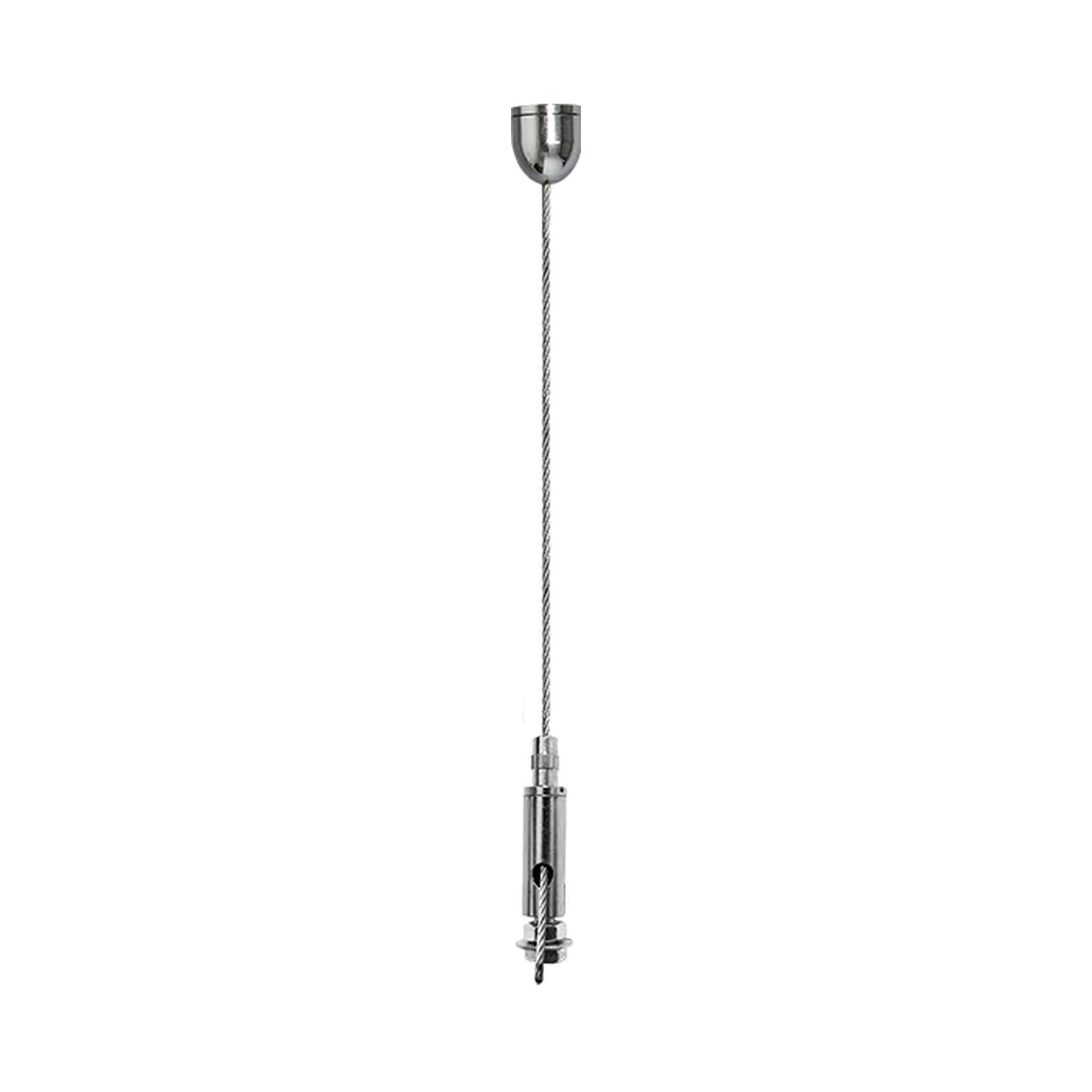

SCL-CCK-12FT 12 ft Adjustable Suspension Cable with Decor Ceiling Bullet, Keyhole End
Technical Specs
- :: Cable: 1/16-inch (1.5mm) diameter steel aircraft cable, 12 ft max length, adjustable
- :: Decor Ceiling Bullet: 0.63-inch Dia. x 0.67-inch H (16mm x 17mm)
- :: Adjustable Cable Gripper: 0.35-inch Dia. x 1.46-inch L (9mm x 37mm)
- :: Fixture Connection: M5 threaded with nut and washer
- :: End Connection: Keyhole
- :: Included: Ceiling anchor and mounting screw
- :: Compatible With: Westgate SCX Series (single keyhole)
- :: Quantity Guide: 2 cables for 2 ft, 3 ft, and 4 ft fixtures; 3 cables for 6 ft and 8 ft fixtures
Applications
- :: The Westgate SCL-CCK-12FT gives suspended fixtures a clean, minimal look with a compact decorative ceiling bullet in place of a bulky canopy. It is ideal for hanging keyhole-mount linear and pendant fixtures in offices, retail spaces, lobbies, showrooms, and other open-ceiling interiors where a refined, architectural finish matters. The adjustable cable gripper makes it easy to fine-tune fixture height on site, and the included ceiling anchor and mounting screw simplify installation. This model features the standard finish, and the same cable is also available in Black to match darker ceilings and fixtures.
