SPEC
SPEC SHEET

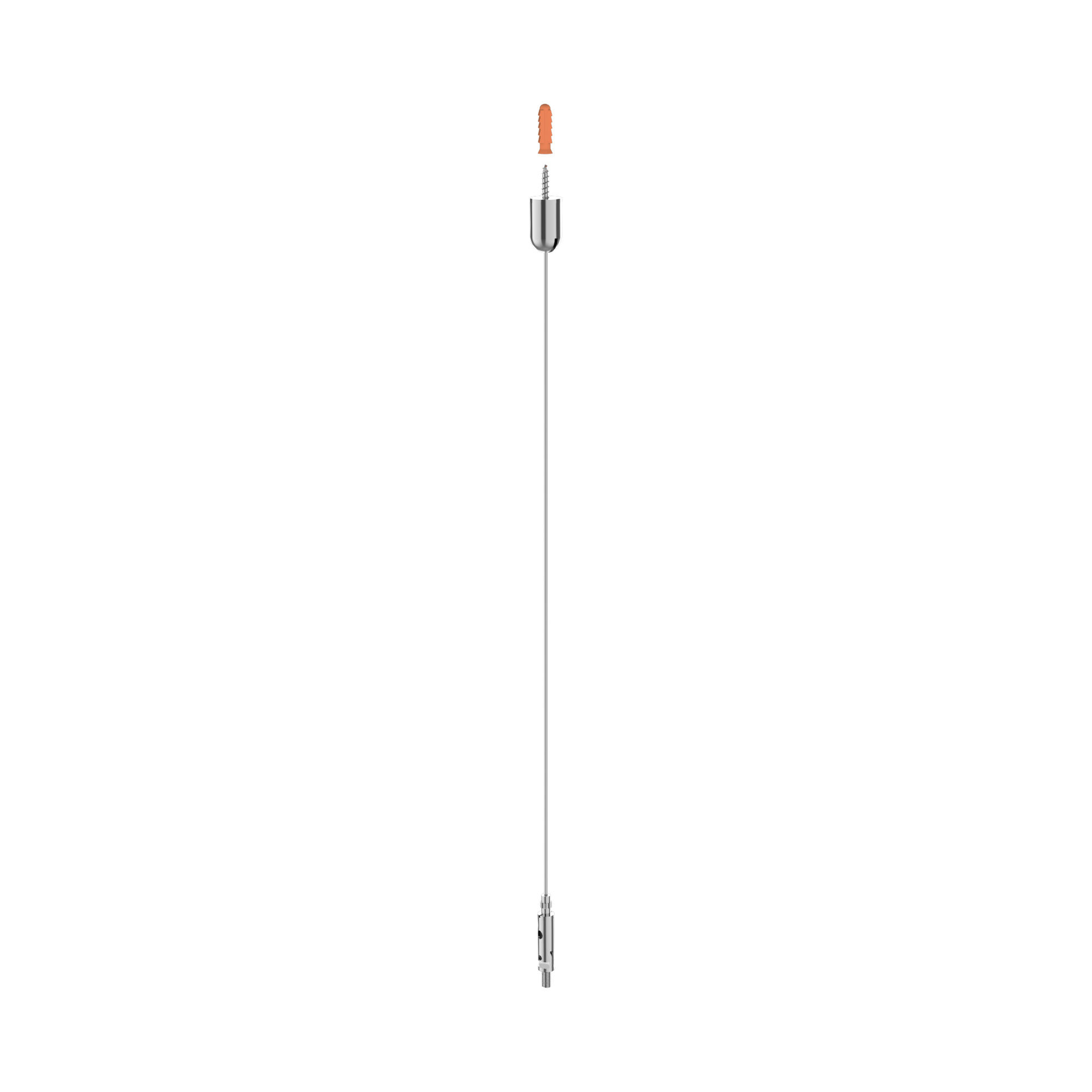

SCL-CCKS-12FT 12 ft Adjustable Swivel Suspension Cable with Decor Ceiling Bullet, Keyhole End
Technical Specs
- :: Cable: 1/16-inch (1.5mm) diameter steel aircraft cable, 12 ft max length, adjustable
- :: Decor Ceiling Bullet: 0.63-inch Dia. x 0.99-inch H (16mm x 25mm)
- :: Adjustable Cable Gripper: 0.47-inch Dia. x 2.36-inch L (12mm x 60mm)
- :: Fixture Connection: Threaded
- :: End Connection: Keyhole
- :: Swivel: Swivel connection at both ends
- :: Compatible With: Westgate SCX Series (single keyhole)
- :: Quantity Guide: 2 cables for 2 ft, 3 ft, and 4 ft fixtures; 3 cables for 6 ft and 8 ft fixtures
Applications
- :: The Westgate SCL-CCKS-12FT gives suspended fixtures a clean, minimal look with a compact decorative ceiling bullet in place of a bulky canopy. It is ideal for hanging keyhole-mount linear and pendant fixtures in offices, retail spaces, lobbies, showrooms, and other open-ceiling interiors where a refined, architectural finish matters. Unlike the standard SCL-CCK cable, this version adds swivel connections at both ends, giving installers extra flexibility when positioning and aligning fixtures. The adjustable cable gripper makes it easy to fine-tune fixture height on site. This model features the standard finish, and the same cable is also available in Black.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
| White 12ft. Cord, SJTW 18 AWG 5-Conduct (WH/BK/GN/PU/GY) | |||
| White 12ft. Cord, SJTW 18 AWG 6-Conduct (WH/BK/GN/PU/GY + Red for Emergency) | |||
 SCL-ASC-1000FT SPEC | SCL-ASC-1000FT | 1/16" 1000ft. Steel Aircraft Suspension Cable | ||
SCL-ASC-50FT SPEC | SCL-ASC-1000FT | 1/16" 1000ft. Steel Aircraft Suspension Cable | ||
SCL-ASC-100FT SPEC | SCL-ASC-100FT | 1/16" 100ft. Roll Steel Aircraft Suspension Cable | ||
SCL-ASC-500FT SPEC | 1/16-inch 500FT Roll Steel Aircraft Suspension Cable | ||
| White 100FT SJTW 18 AWG 6-Conductor Cord Roll with Emergency Lead | |||
| White 100FT SJTW 18 AWG 5-Conductor Cord Roll | |||
 SCL-CMDCK-2PK SPEC | 2-Pack Replacement Decor Ceiling Attachment for 1/16-inch Cable with Crimp Sleeves | ||
 SCL-CMSCK-2PK SPEC | 2-Pack Replacement Decor Slope Ceiling Attachment for 1/16-inch Cable with Crimp Sleeves |
