SPEC SHEET

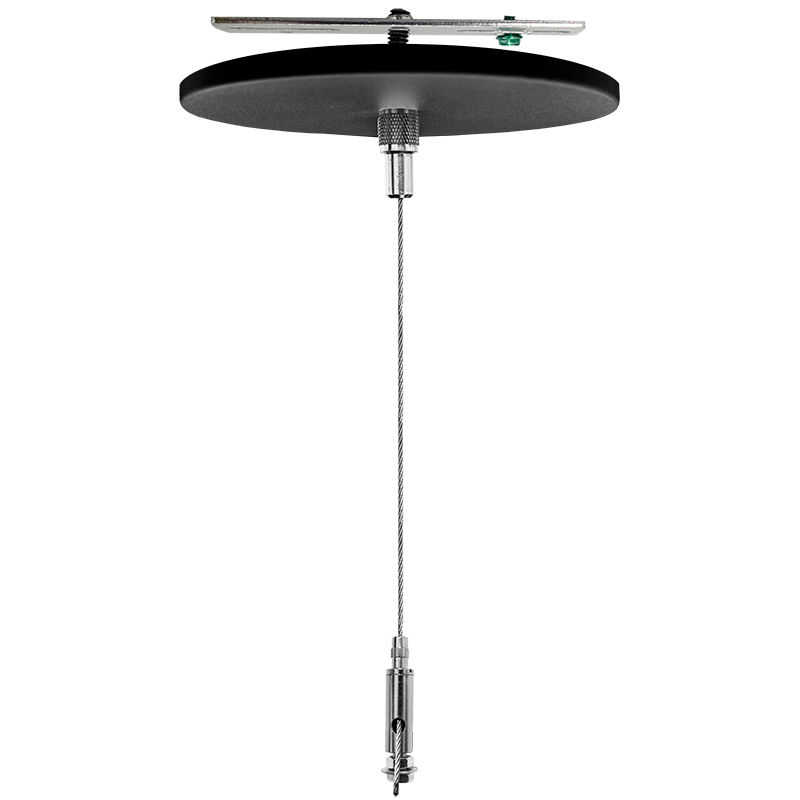

SCL-CS1-12FT-BK Black 12FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Non-Power Side

:: Set Type: Non-power side single suspension canopy set
:: Cable: Adjustable 1/16-inch steel aircraft cable, 12FT max
:: Connectors: Zinc-plated steel, keyhole end
:: Canopy: Steel, black powder coat, 5.12-inch dia. x 0.39-inch H
:: Max Load: 70 lbs per cable
:: Mounting: Fits standard 3-inch or 4-inch junction boxes and T-bar ceilings
:: Top Bracket: 3.88-inch, mounting slots adjust 2.28-inch to 3.51-inch
:: Included: Steel T-bar clip

:: The Westgate SCL-CS1-12FT-BK is a single suspension canopy set for hanging LED linear and pendant fixtures from higher ceilings in open offices, retail stores, showrooms, lobbies and schools. The keyhole end connector makes it quick to attach and level the fixture, and the longer adjustable aircraft cable lets installers drop fixtures further to reach the work plane. This model is the non-power side set, with a solid canopy and no cord, and pairs with a power side set such as the SCL-CS1P-12FT-NC-BK. Its black canopy disappears into dark, open and exposed ceilings, while the SCL-CS1-12FT offers the same set in white.
