SCL-CSK-20FT-BK Black 20FT Adjustable Suspension Canopy Complete Kit with Keyhole End Connectors
Technical Specs

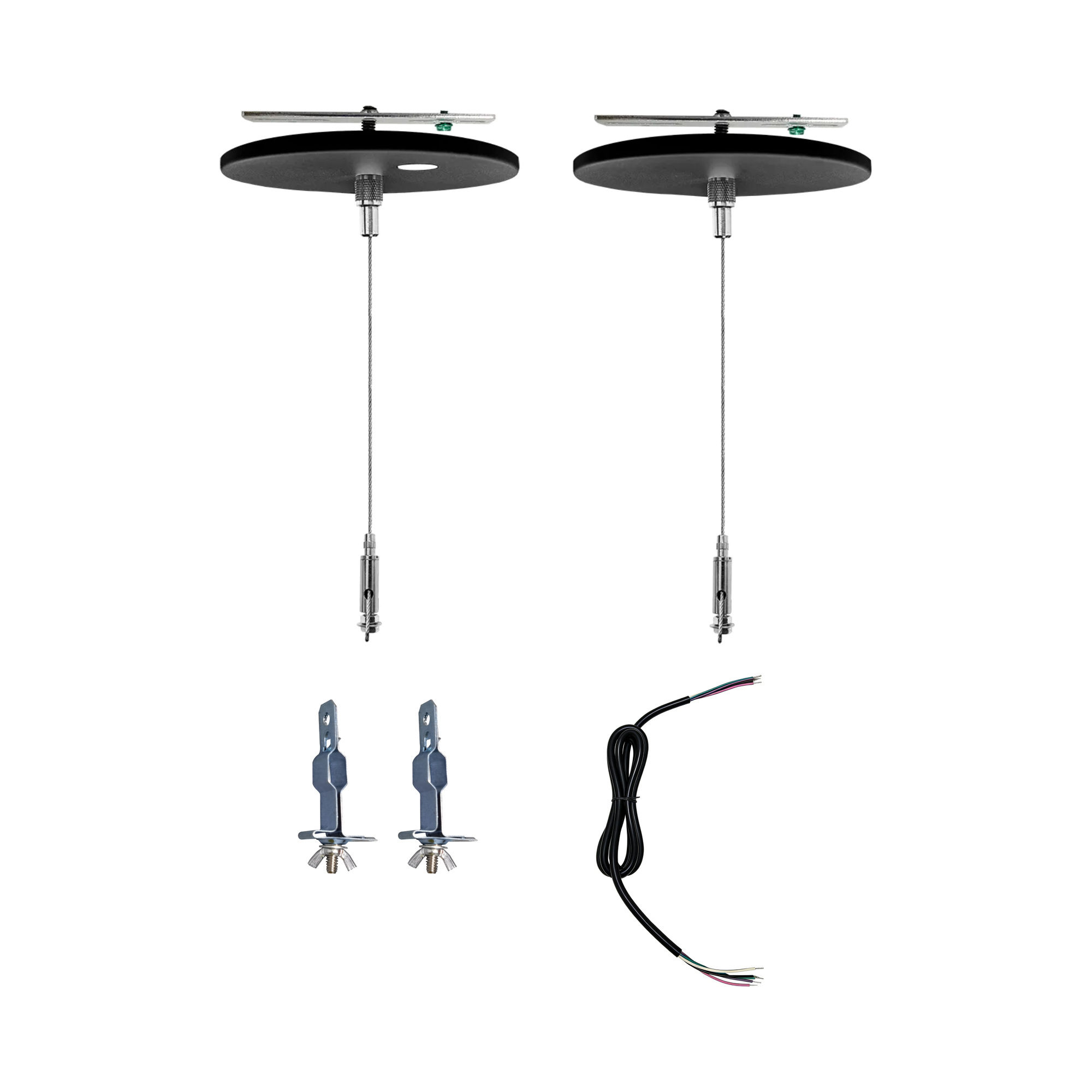

- :: Kit Contents: 1 non-power side canopy set, 1 power side canopy set with cord
- :: Cable: Adjustable 1/16-inch steel aircraft cable, 20FT max
- :: Connectors: Zinc-plated steel, keyhole end
- :: Canopy: Steel, black powder coat, 5.12-inch dia. x 0.39-inch H
- :: Cord: SJTW 18 AWG 5-conductor (WH/BK/GN/PU/GY), 20FT
- :: Max Load: 70 lbs per cable
- :: Mounting: Fits standard 3-inch or 4-inch junction boxes and T-bar ceilings
- :: Top Bracket: 3.88-inch, mounting slots adjust 2.28-inch to 3.51-inch
- :: Included: Steel T-bar clip and plastic cable bushing
Applications
- :: The Westgate SCL-CSK-20FT-BK is a complete suspension kit that includes both the power side and non-power side canopy sets needed to hang an LED linear or pendant fixture in a single order. As the longest kit in the lineup, it is built for high and open ceilings in warehouses, gymnasiums, atriums, big-box retail and manufacturing spaces where fixtures must hang well below the structure. Keyhole end connectors make it quick to attach and level the fixture, and the adjustable aircraft cable lets installers fine-tune hanging height on site. This model features a black canopy that disappears into dark, open and exposed ceilings for a clean, industrial look, while the SCL-CSK-20FT offers the same kit in white.
