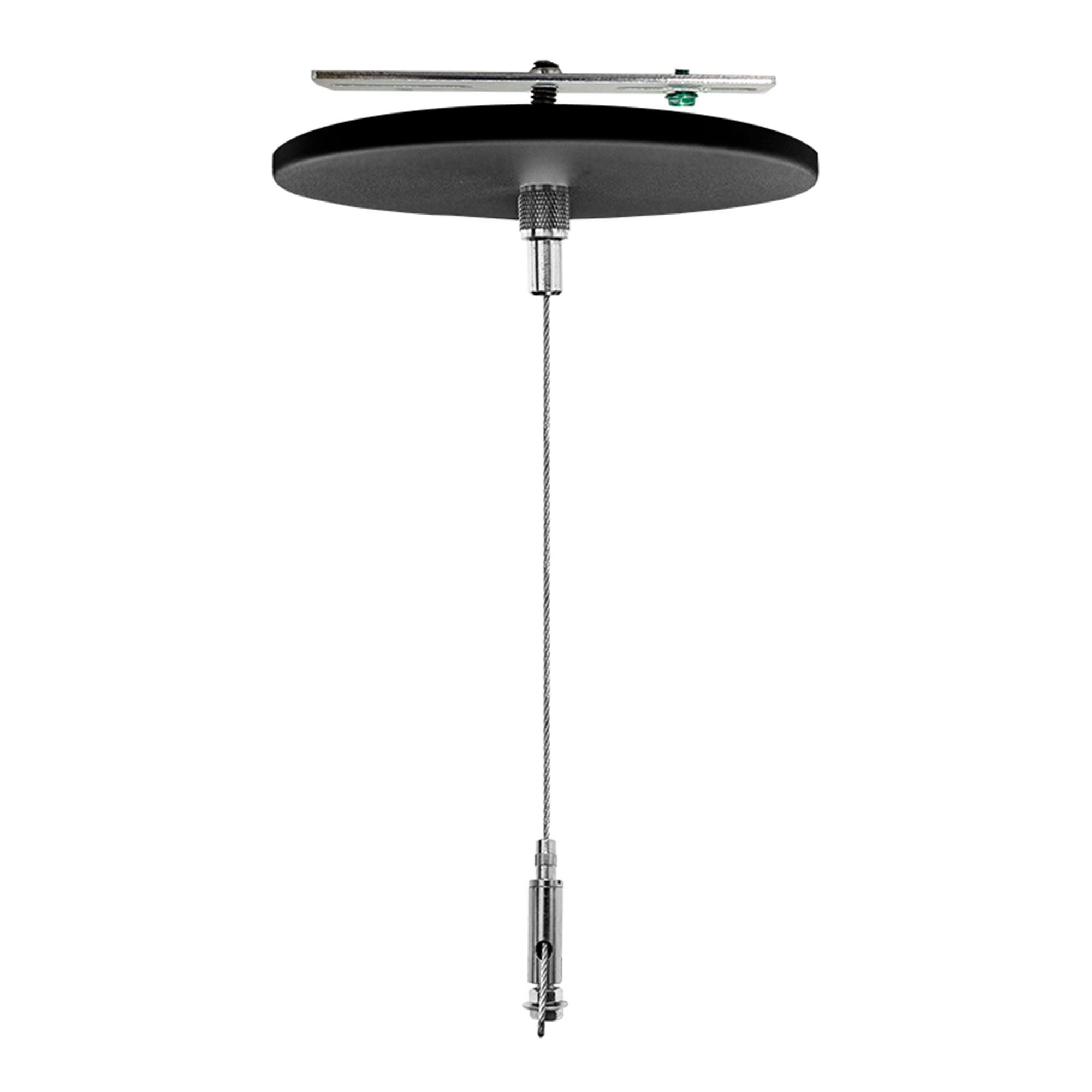

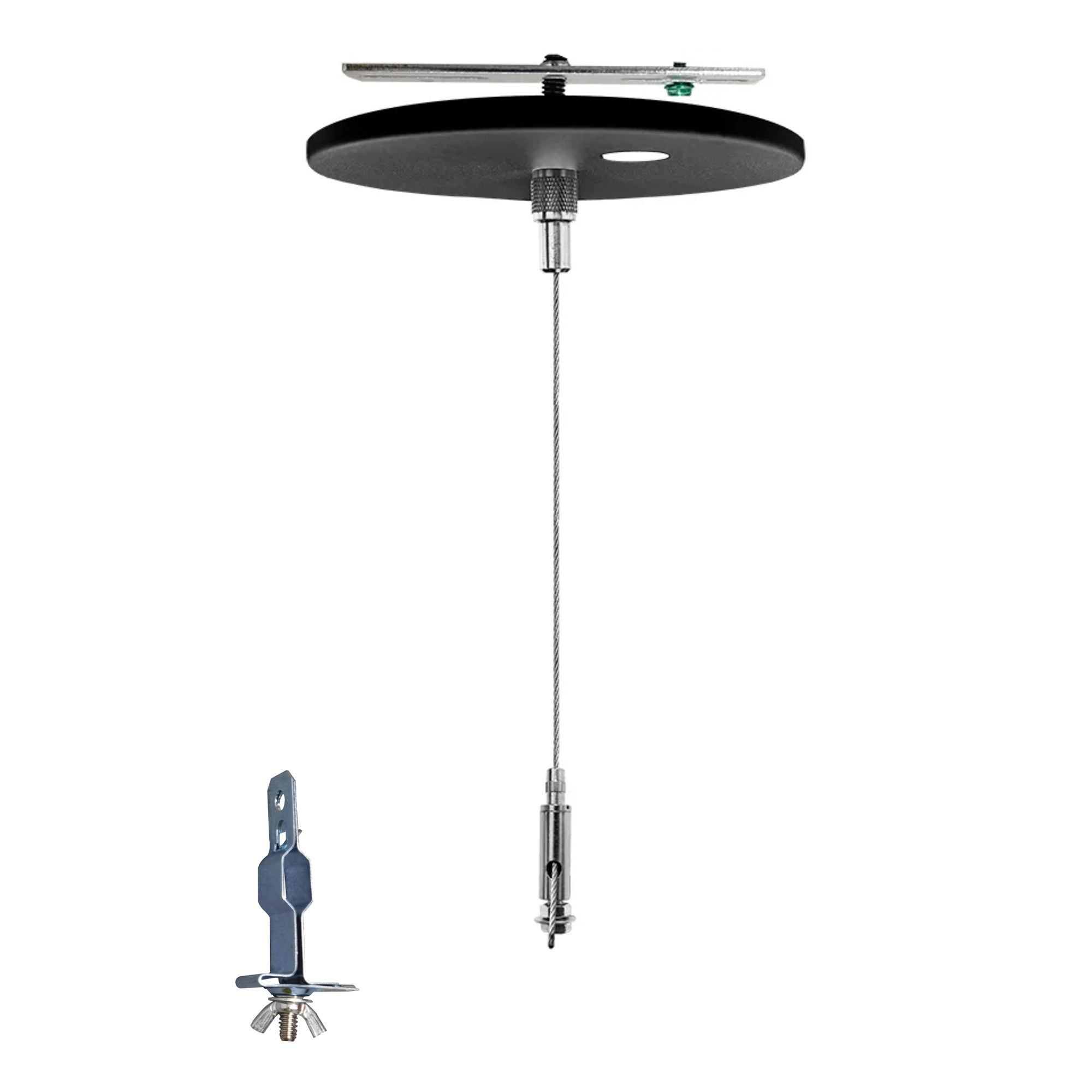

SCL-CSK-6FT-BK Black Adj. 6FT 1/16in. Single Suspension Canopy Complete Kit with Keyhole End Connectors
Technical Specs
- :: Includes 1 suspension cable set: 1 power-side canopy, 1 non-power-side canopy
- :: Adjustable steel aircraft cable, 6FT max length
- :: Cable diameter: 1/16"
- :: Connectors: Zinc-plated steel
- :: Canopy finish: Black powder coated steel
- :: Max load: 70 lbs. per cable
- :: Compatible with standard 3" or 4" junction boxes
- :: Compatible with T-bar ceilings
- :: Steel T-bar clip included
- :: White plastic cable bushing included
- :: Cord: White 6FT, SJTW 18 AWG, 5-conductor (WH/BK/GN/PU/GY)
- :: Keyhole end connectors on both power and non-power sides
- :: Canopy diameter: 5" (non-power side), 5.12" (power side)
Applications
- :: The SCL-CSK-6FT-BK is a complete adjustable 6FT suspension canopy kit in Black, designed for pendant-mounted linear and area lighting installations. Ideal for commercial interiors, office spaces, retail environments, and warehouses where suspended fixtures need a clean, secure, and adjustable hanging solution. The kit includes both a power-side and non-power-side canopy with keyhole end connectors, adjustable 1/16" steel aircraft cable, and a SJTW 18/5 white cord for a complete ready-to-install package. Compatible with standard 3" or 4" junction boxes and T-bar ceilings for versatile installation flexibility.
