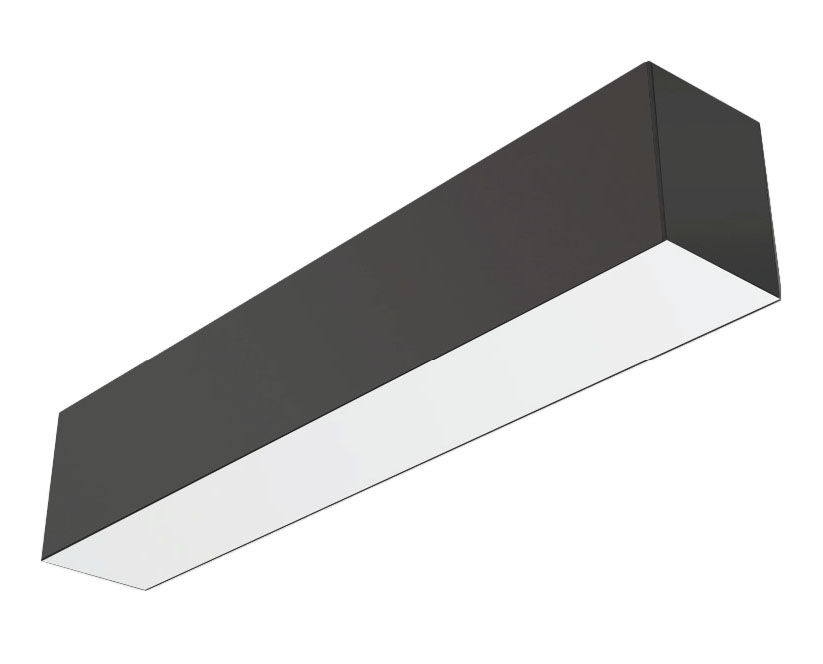

SCX-1FT-10W-MCT4-D-BK 1ft. LED 2-3/4" Black Superior Architectural Seamless Linear Lights, 10W, 3000K/3500K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V AC 50/60Hz
- :: Wattage: 10W
- :: Power Factor: >0.95
- :: Total Harmonic Distortion: ≤ 20 %
- :: Efficacy: 110 LPW
- :: Low Profile Modern Design
- :: Aluminum Housing With Matte White Finish
- :: Custom Colors Available
- :: Lens Snaps into Housing
- :: Make Different Connections Via T/L/X Joints on Both Ends
- :: Mounting Options: Surface, Suspended, Wall, Recessed
- :: IP Rating: IP54
- :: Operating Temperature: -13°F~104°F
- :: Adjustable Suspension Brackets Provided on Top of The Fixtures
- :: 5-Year Warranty
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 1100LM
- :: Color Temperatures: 3000K/3500K/4000K/5000K
- :: Multi-CCT(Selectable with Switch Inside the Fixture)
- :: Color Rendering Index: CRI ≥ 80
- :: Up Light Option Available
- :: 50,000 Hours Rated Life
- :: Beam Angle: 104.8°(H) x 100.5°(V)
Applications
- :: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions.
- :: It can be used in any indoor applications.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Color Temp | Lumens | Dimensions | ||
|---|---|---|---|---|---|---|
 SCL-CS1-6FT SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Non-Power Side | |||||
 SCL-CS1P-6FT SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Power Side with Cord | |||||
SCL-CS1P-6FT-NC SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Power Side without Cord | |||||
 SCX-L-MCT4-BK SPEC INST | Joint Type: L | 3000K/3500K/4000K/5000K | 508LM/575LM/616LM/660LM | 5.75” X 5.75”X 3.35” X 2.75” | ||
 SCX-T-MCT4-BK SPEC INST | Joint Type: T | 3000K/3500K/4000K/5000K | 629LM/726LM/787LM/854LM | 8.75” X 3” X 3” X 3.35” X 2.75” | ||
 SCX-X-MCT4-BK SPEC INST | Joint Type: X | 3000K/3500K/4000K/5000K | 733LM/863LM/944LM/1037LM | 3” X 3” X 3.35” X 2.75” | ||
 SCX-IC-MCT4-BK SPEC INST | Joint Type: Inside Corner | 3000K/3500K/4000K/5000K | 629LM/726LM/787LM/854LM | 7.25” X 7.25” X 3.35” X 2.75” | ||
 SCX-L1FT-20W-MCT4 SPEC INST | Joint Type: L Fixture | 3000K/3500K/4000K/5000K | 2197LM/2316LM/2348LM/2390LM | 12” X 12” X 3.35” X 2.75” | ||
 SCX-C120-MCT4-BK SPEC INST | Joint Type: 120° Corner | 3000K/3500K/4000K/5000K | 508LM/575LM/616LM/660LM | 6” X 6” X 3.35” X 2.75” | ||
 SCX-Y-MCT4-BK INST SPEC | Joint Type: Y | 3000K/3500K/4000K/5000K | 508LM/575LM/616LM/660LM | 3” X 3” X 3.35” X 2.75” | ||
 SCX-6IN-MCT4-BK SPEC INST | Joint Type: 6in Module | 3000K/3500K/4000K/5000K | 508LM/575LM/616LM/660LM | 5.98” X 2.76” X 3.35” | ||
 SCX-9IN-MCT4-BK SPEC INST | Joint Type: 9-Inch Module | 3000K/3500K/4000K/5000K | 508LM/575LM/616LM/660LM | 8.98” X 2.76” X 3.35” | ||
 SCL-ASC-500FT SPEC | 1/16-inch 500FT Roll Steel Aircraft Suspension Cable | |||||
 SCL-6FT-SJTW18/5 SPEC | White 6FT SJTW 18 AWG 5-Conductor Suspension Power Cord | |||||
| Heavy-Duty Auxiliary Hook for up to 1/16" Aircraft Cables with Cable Adjustment | ||||||
 SCL-GS10 SPEC | Adj. 10ft. 1/16in Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top | |||||
SCL-GS20 SPEC | Adj. 20ft. 1/16in. 1.5mm Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top | |||||
 SCL-CSK-6FT SPEC | White 6FT Adjustable Suspension Canopy Complete Kit with Keyhole End Connectors |
