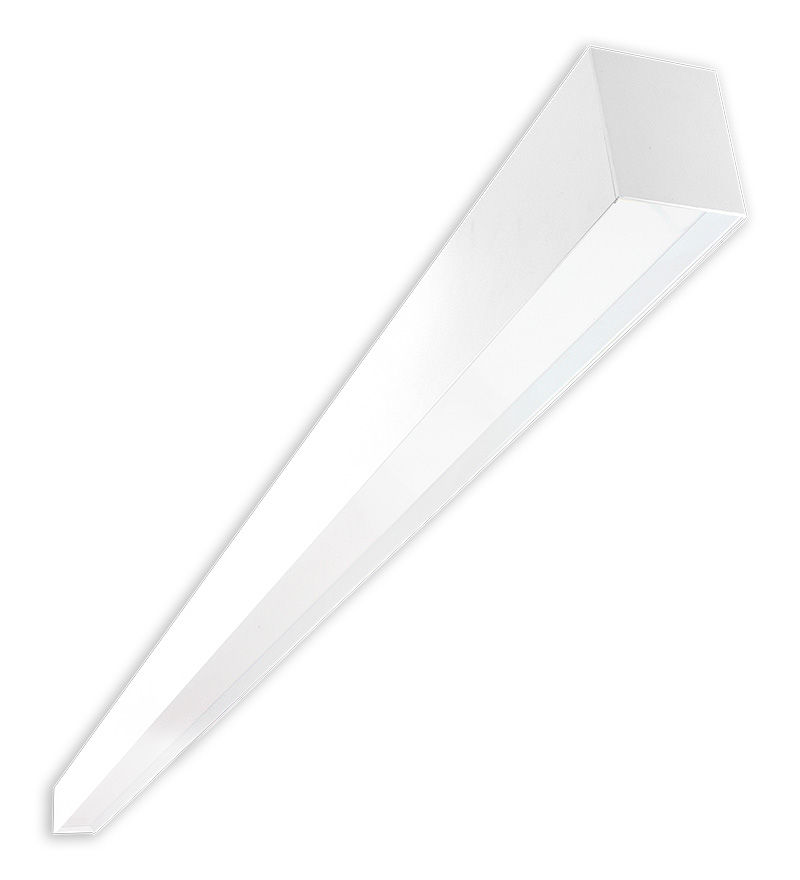

SCX-6FT-60W-MCT4-D-REG

LED 2-3/4" Superior Architectural Seamless Linear Lights with Regressed Lens, 60W, 3000K/3500K/4000K/5000K

Technical Specs

  • :: Voltage: 120-277VAC 50/60Hz
  • :: Wattage: 60W
  • :: Power Factor: >0.95
  • :: Total Harmonic Distortion: ≤ 20 %
  • :: Efficacy: 110 LPW
  • :: Low Profile Modern Design
  • :: Aluminum Housing With Matte White Finish
  • :: Custom Colors Available
  • :: Lens Snaps into Housing
  • :: Mounting Options: Surface, Suspended, Wall, Recessed
  • :: IP Rating: IP54
  • :: Operating Temperature: -13°F~104°F
  • :: Lens Type: Opal Polycarbonate Lens (Regressed)
  • :: Adjustable Suspension Brackets Provided on top of the Fixtures
  • :: 5-Year Warranty
  • :: Dimmable: 0~10V Dimming
  • :: Total Lumens: 66500LM
  • :: Color Temperatures: 3000K/3500K/4000K/5000K
  • :: Multi-CCT(Selectable Switch Inside Fixture)
  • :: Color Rendering Index: CRI ≥ 80
  • :: Up Light Option Available
  • :: Beam Angle: 104.8°(H) x 100.5°(V)
  • :: 50,000 Hours Rated Life

Applications

  • :: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
  • :: It can be used in any indoor applications

Features

  • UL Listed
  • Dimming 0-10V
  • DAMP
  • MCT4

ACCESSORIES

Product NameDescription
image description
ADJ. 6FT 1/16in, 1.5mm SINGLE SUSPENSION 5in CANOPY SET WITH KEYHOLE END CONNECTOR, NONPOWER SIDE
image description
ADJ. 6FT 1/16in, 1.5mm SINGLE SUSPENSION 5in CANOPY SET WITH KEYHOLE END CONNECTOR, POWER SIDE WITH SJTW18/5 WHITE CORD
image description
White 6ft. Cord, SJTW 18 AWG 6-Conduct (WH/BK/GN/PU/GY + Red for Emergency)
image description
ADJ. 6FT 1/16in,1.5mm SINGLE SUSPENSION 5in CANOPY SET WITH KEYHOLE END CONNECTOR, POWER SIDE WITHOUT CORD
image description
1/16" 500 FT. steel aircraft suspension cable
image description
White 6ft. Cord, SJTW 18 AWG 5-Conduct (WH/BK/GN/PU/GY)
image description
Heavy-Duty Auxiliary Hook for up to 1/16" Aircraft Cables with Cable Adjustment
image description
Adj. 10ft. 1/16in Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top
image description
Adj. 20ft. 1/16in. 1.5mm Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top
image description
Adj. 6ft. 1/16in Suspension Canopy Complete Kit for Both Sides with Keyhole End Connectors
