SCXT-2FT-10-20W-MCTP-D-DL White 2FT Drop Lens 10-20W LED Linear T-Grid Fixture
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 10W/15W/20W (Selectable)
- :: Lumens: 1,100 LM/1,650 LM/2,200 LM
- :: Efficacy: 110 LM/W
- :: Color Temperature: 3000K/3500K/4000K (Selectable)
- :: Power and CCT Selection Switches on Driver
- :: CRI: ≥80
- :: Power Factor: >0.95
- :: THD: ≤20%
- :: Dimming: 0-10V
- :: Beam Angle: 104.8°(H) x 100.5°(V)
- :: BUG Rating: B1-U2-G1
- :: Lens: Opal Polycarbonate Drop Lens
- :: Housing: Aluminum, Matte White Finish
- :: Dimensions: 24-inch L x 1-inch W x 1-1/3-inch H

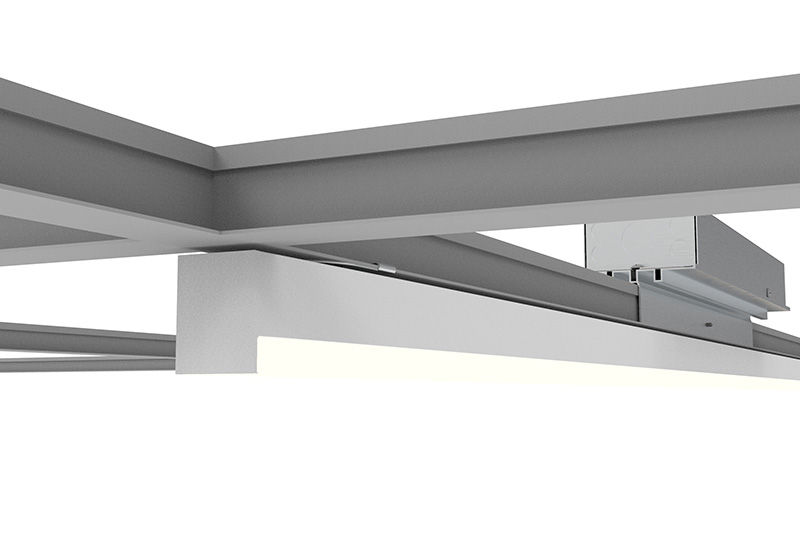

- :: Mounting: T-Bar Grid (Clips Included), Surface, Suspended, Recessed
- :: Linkable With Included Coupling Bracket (Not Seamless)
- :: External Driver Required, Sold Separately
- :: Uplight Option Available
- :: IP Rating: IP54
- :: Operating Temperature: -13°F to 104°F
- :: Rated Life: 50,000 Hours
- :: Warranty: 5-Year
- :: Certifications: cULus Listed, Damp Locations
Applications

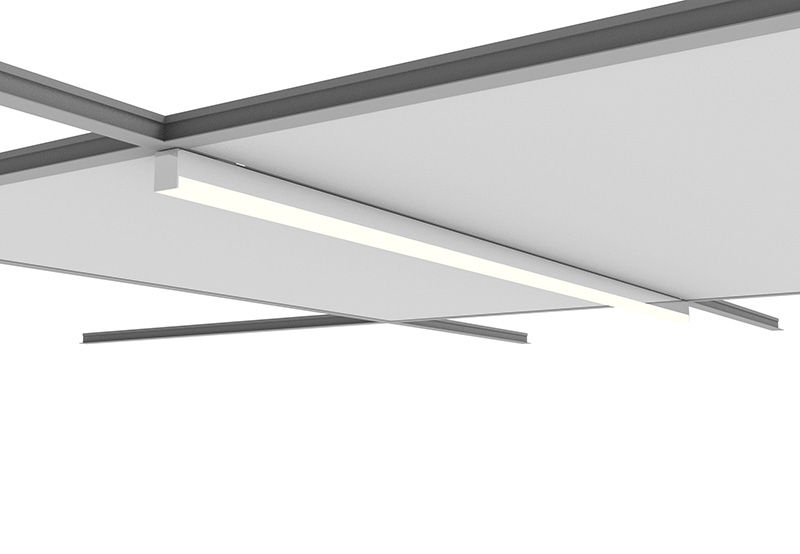

- :: The Westgate SCXT 2-foot linear fixture brings clean, low-profile light to offices, conference rooms, meeting rooms, libraries, hotels, corridors, and education facilities. It clips directly onto the T-grid or can be surface mounted or suspended, and installers set power and color temperature right on the driver to suit each space. This version pairs a matte white housing with a soft drop lens that blends into white ceilings, while its siblings offer a matte black housing or a flush flat lens.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
| SCXT Series 20W Driver Kit With Power & CCT Selection Switches | |||
| SCXT Series 40W Driver Kit With Power & CCT Selection Switches | |||
 SCXT-TGRID-DSP1 SPEC | SCXT Series T-Grid Driver Support Platform For Up To 80W Driver Kit | ||
| Comm. Multi-Purp. Extension Cable With RJ11 Ends - 6Ft | |||
| Comm. Multi-Purp. Extension Cable With RJ11 Ends - 8Ft | |||
| Comm. Multi-Purp. Extension Cable With RJ11 Ends - 12Ft | |||
| Comm. Multi-Purp. Extension Cable With RJ11 Ends - 24Ft | |||
