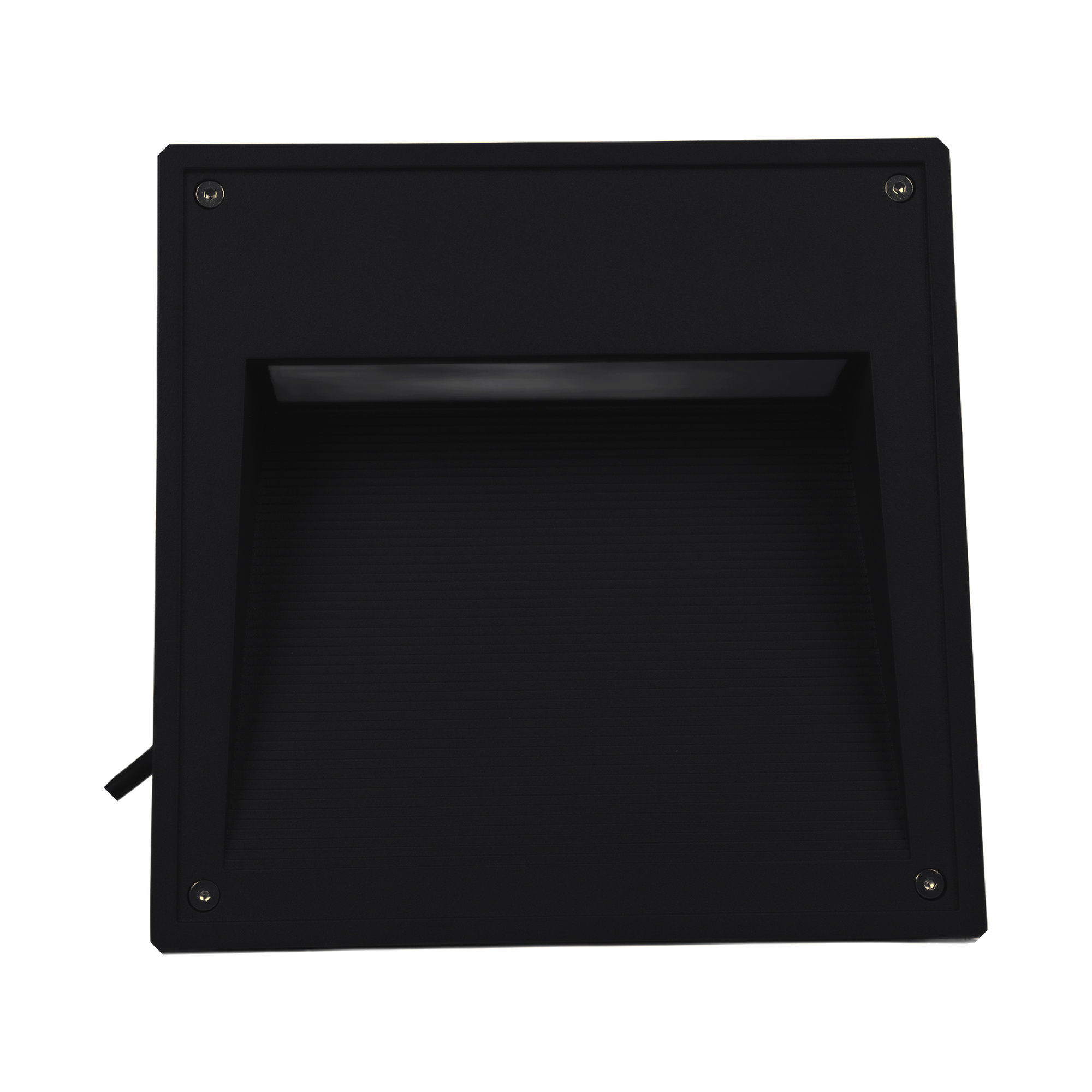

STP-10X10-MCTP-BK Black 10~25W 10-inch Square Recessed Step Light
Technical Specs
- :: Voltage: 120-277 VAC, 50/60 Hz
- :: Wattage: 10W / 18W / 25W (MCTP selectable)
- :: Lumens: 370LM / 666LM / 925LM
- :: Efficacy: 37LM/W
- :: Power Factor: >0.9
- :: Color Temperature: 3000K / 4000K / 5000K (MCTP selectable)
- :: CRI: ≥ 80
- :: Beam Angle: 72°
- :: BUG Rating: B1-U2-G0
- :: Lens: Prismatic Lens
- :: Rated Life: 70,000 Hours
- :: Housing: Die-Cast Aluminum With Powder Coat Finish
- :: Finish: Black
- :: Mounting: Recessed Wall Mount, Can Be Installed In Concrete
- :: Dimensions: 10-inch (H) x 10-inch (W) x 3.43-inch (D)
- :: Operating Temperature: -40°F to 122°F
- :: IP Rating: IP65, Suitable for Wet Locations
- :: Warranty: 7-Year Warranty
- :: Certifications: cETLus Listed, IP65, Wet Location Rated
Applications
- :: The STP-10X10-MCTP-BK is the black-finish version of Westgate's largest STP step light, a bold 10-inch square recessed fixture whose matte black housing recedes into darker facades and modern architecture. Its broad, even wash makes it well suited to alleys, loading docks, doorways, pathways, parking areas, and residential areas. Choose the black finish when a project calls for a contemporary look; the graphite, white, and bronze versions deliver the same coverage in alternate tones.
