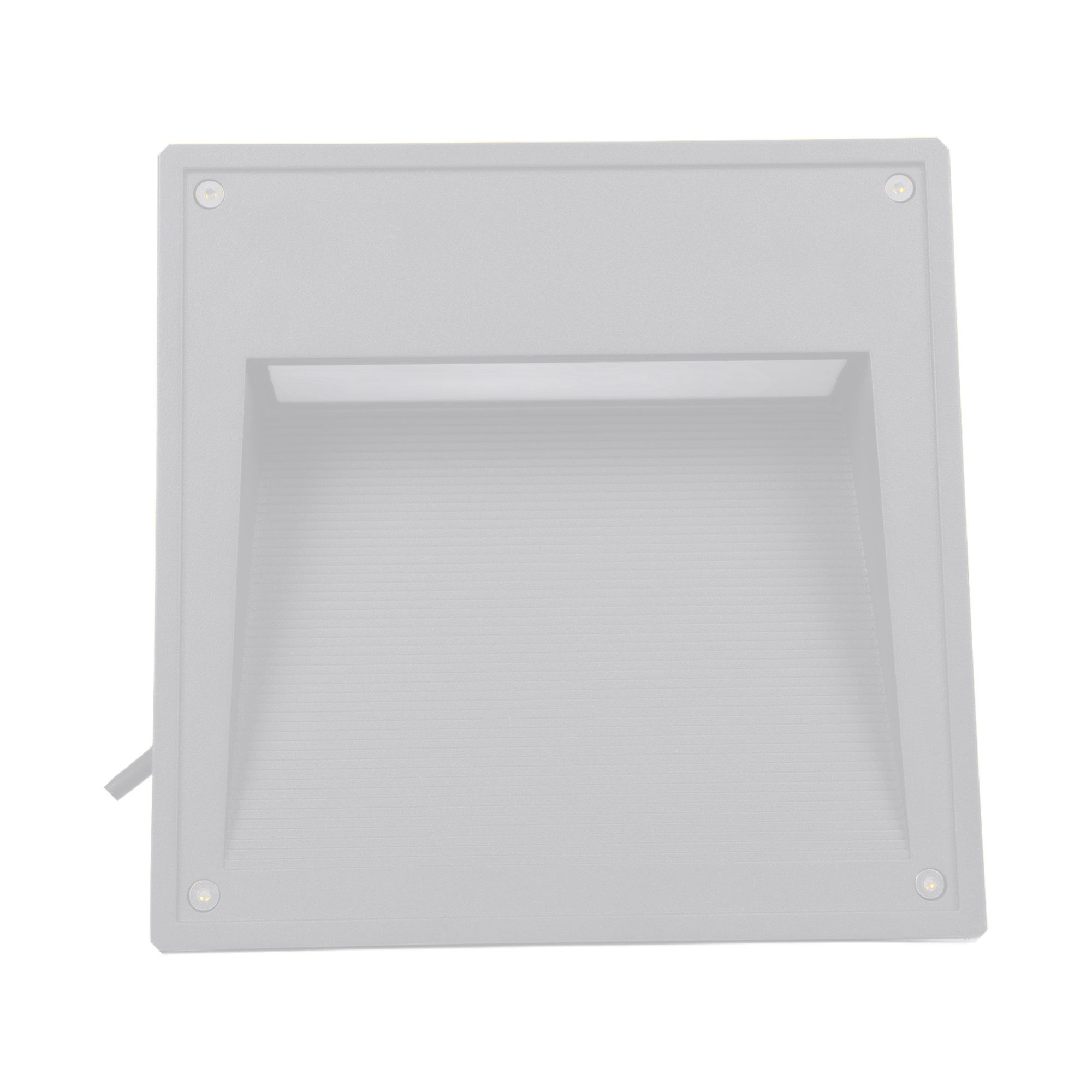

STP-10X10-MCTP-WH White 10~25W 10-inch Square Recessed Step Light
Technical Specs
- :: Voltage: 120-277 VAC, 50/60 Hz
- :: Wattage: 10W / 18W / 25W (MCTP selectable)
- :: Lumens: 370LM / 666LM / 925LM
- :: Efficacy: 37LM/W
- :: Power Factor: >0.9
- :: Color Temperature: 3000K / 4000K / 5000K (MCTP selectable)
- :: CRI: ≥ 80
- :: Beam Angle: 72°
- :: BUG Rating: B1-U2-G0
- :: Lens: Prismatic Lens
- :: Rated Life: 70,000 Hours
- :: Housing: Die-Cast Aluminum With Powder Coat Finish
- :: Finish: White
- :: Mounting: Recessed Wall Mount, Can Be Installed In Concrete
- :: Dimensions: 10-inch (H) x 10-inch (W) x 3.43-inch (D)
- :: Operating Temperature: -40°F to 122°F
- :: IP Rating: IP65, Suitable for Wet Locations
- :: Warranty: 7-Year Warranty
- :: Certifications: cETLus Listed, IP65, Wet Location Rated
Applications
- :: The STP-10X10-MCTP-WH is the white-finish edition of the STP Series' flagship 10-inch square step light, its clean white housing reading best against light stucco, painted walls, and bright covered exteriors. It is ideal for illuminating alleys, loading docks, doorways, pathways, parking areas, and residential areas. White is the finish to choose when the fixture should blend into a lighter surface; the black, graphite, and bronze versions cover the same settings in other tones.
