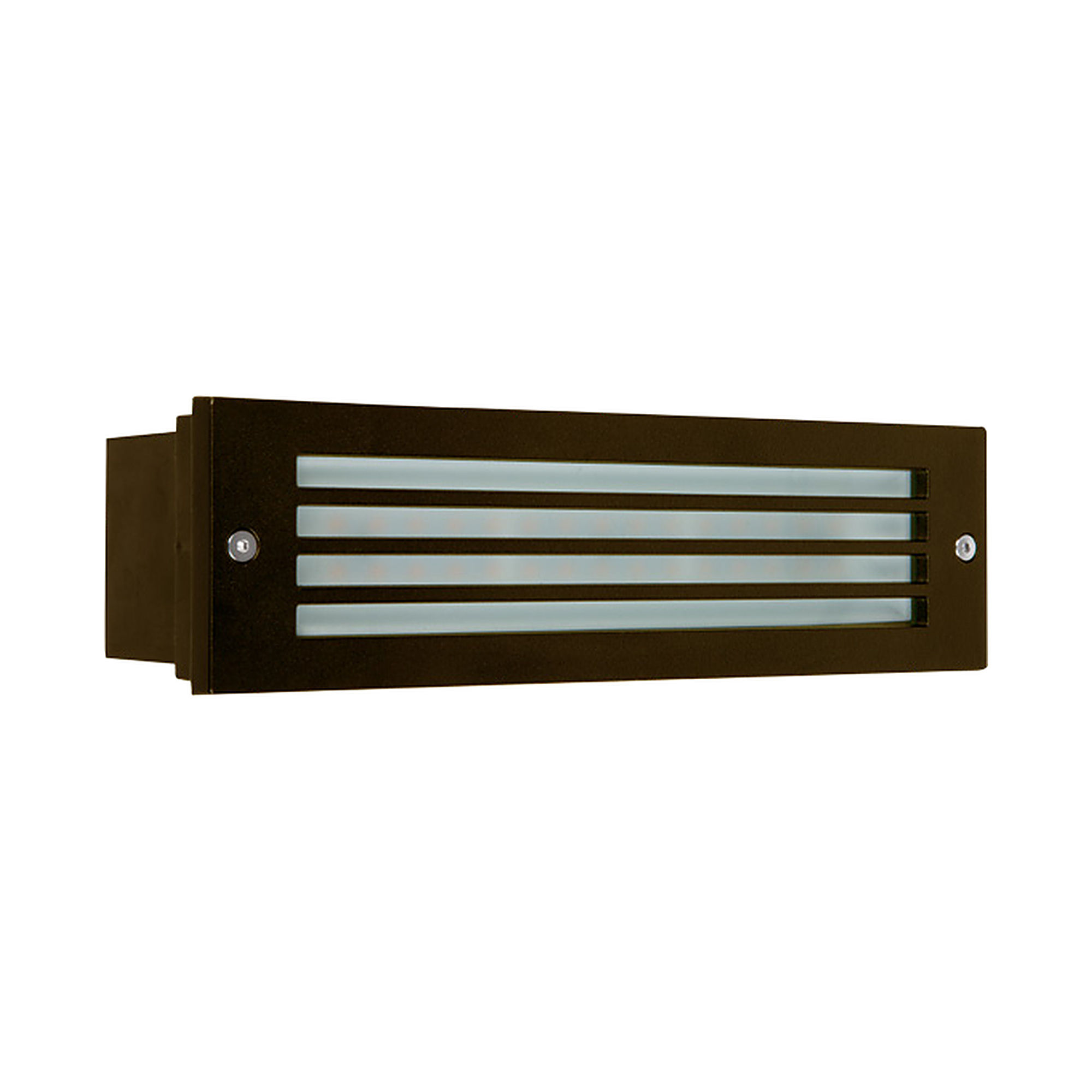

STP-10X3-MCT-BR Bronze 10W 10-inch Recessed Step Light
Technical Specs
- :: Voltage: 120-277 VAC, 50/60 Hz
- :: Wattage: 10W
- :: Lumens: 470LM
- :: Efficacy: 47LM/W
- :: Power Factor: >0.95
- :: Color Temperature: 3000K / 4000K / 5000K (MCT selectable)
- :: CRI: ≥ 80
- :: Beam Angle: 65.7°
- :: Lens: Prismatic Lens
- :: Rated Life: 70,000 Hours
- :: Housing: Die-Cast Aluminum With Powder Coat Finish
- :: Finish: Bronze
- :: Mounting: Recessed Wall Mount, Can Be Installed In Concrete
- :: Dimensions: 2.853-inch (H) x 10-inch (W) x 3.701-inch (D)
- :: Operating Temperature: -40°F to 122°F
- :: IP Rating: IP65, Suitable for Wet Locations
- :: Warranty: 7-Year Warranty
- :: Certifications: cETLus Listed, IP65, Wet Location Rated
Applications
- :: The STP-10X3-MCT-BR brings the efficient 10-inch STP step light in a warm Bronze finish that pairs naturally with brick, timber, and landscape settings. It is a dependable choice for alleys, loading docks, doorways, pathways, parking areas, and residential areas. Bronze offers the same fixed-power simplicity as the black, graphite, and white 10X3 models in a finish suited to traditional palettes.
