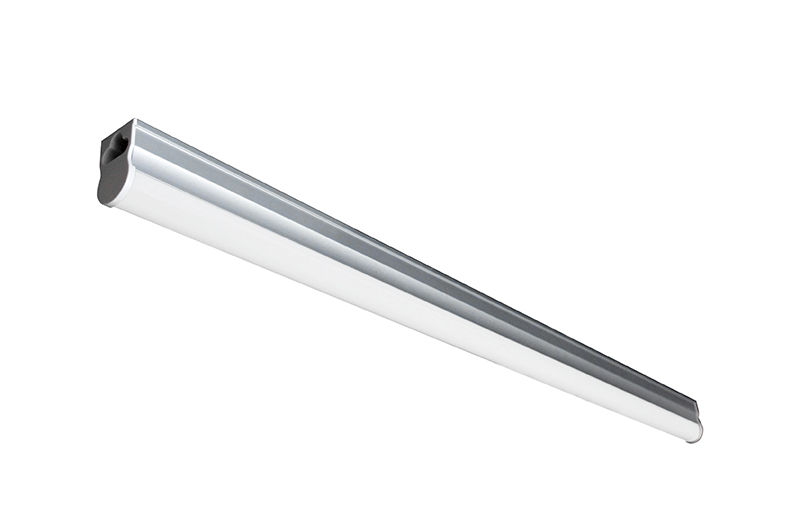

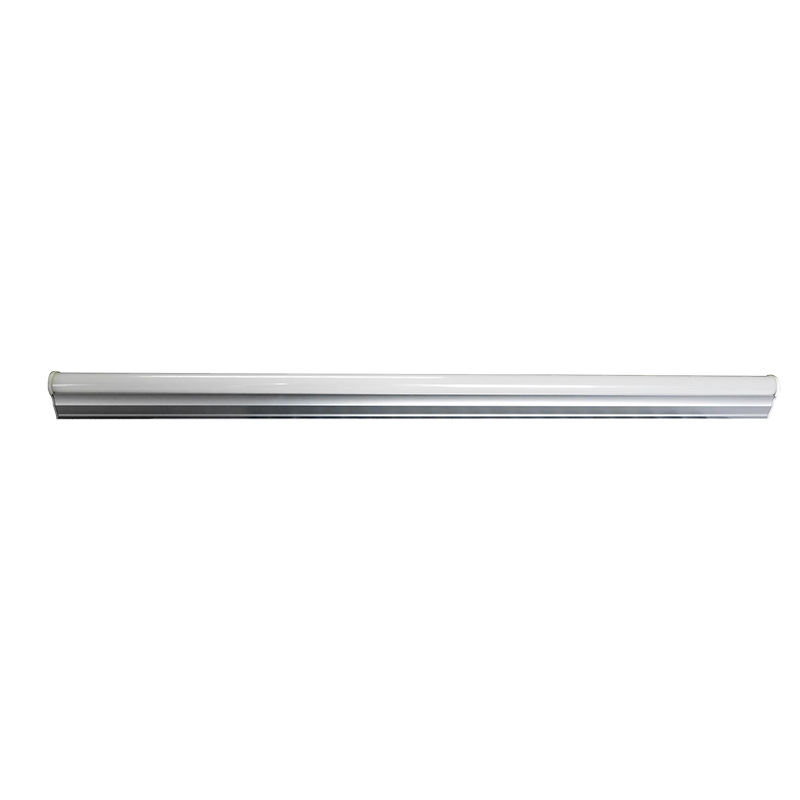

T5-47IN-16W-40K 4000K 47-inch 16W LED T5 Retrofit Bar with Internal Driver
Technical Specs
- :: Fixture type: linkable LED T5 retrofit bar with internal driver
- :: Voltage: 120V
- :: Wattage: 16W
- :: Power factor: >0.90
- :: Efficacy: 115 LM/W
- :: Lumens: 1,840LM
- :: Color temperature: 4000K
- :: CRI: >80
- :: LED type: LM80 SMD 2835
- :: Lens: frosted
- :: Beam angle: 140-degree
- :: Maximum run: 31 ft
- :: Housing: linkable fixture with internal isolated power supply
- :: Mounting: surface mount
- :: Dimensions: 47.12-inch L x 0.9-inch W x 1.35-inch H
- :: Operating temperature: -4-degreeF to 104-degreeF
- :: IP rating: IP20
- :: Rated life: 50,000 hours
- :: Certifications: UL listed
- :: Warranty: 5-year
Applications
- :: The T5-47IN-16W-40K is the longer 47-inch member of the T5 retrofit family from Westgate in neutral 4000K white, a balanced everyday tone for full-length linear fixtures, high bays, and troffers in commercial and industrial spaces. Its internal driver and linkable design install fast and connect into extended continuous runs up to 31 feet. Choose 4000K as the versatile middle ground; Westgate offers this bar in cooler 5000K and warmer 3000K, and in a shorter 22-inch 9W version.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 T5-6FT-PC SPEC | 6 FT. Plug-in Power Cord | ||
 T5-6FT-PT SPEC | 6 FT AC Input Wire (Pigtail) | ||
 T5-MAGSET SPEC | Clip-on Secure Magnet Set | ||
 T5-8IN-JUMP SPEC | 8" Linking Cable" | ||
 T5-COUPLER SPEC | Coupler For T5 Retrofit Lamp |
