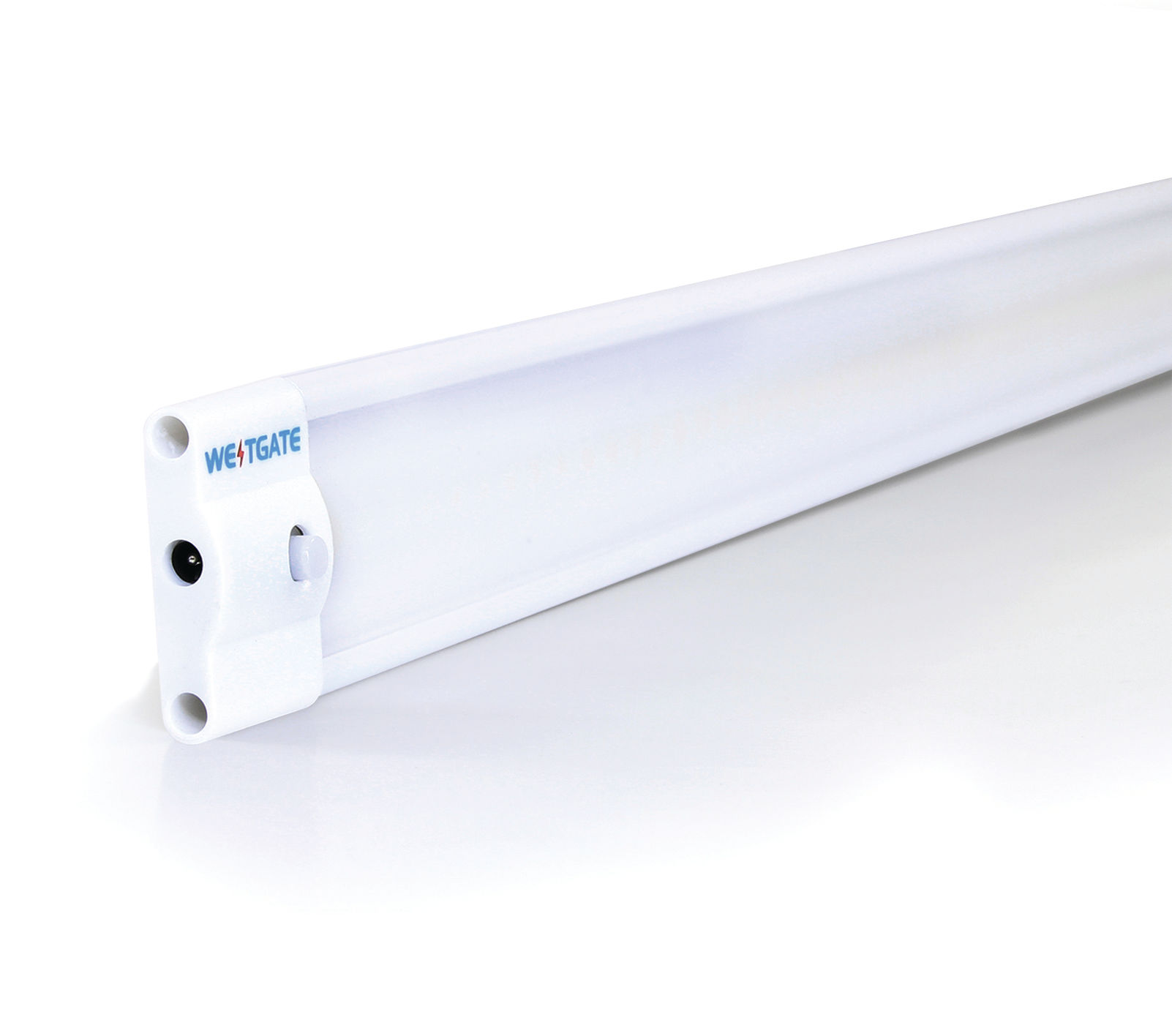

UCW32WW

:: Requires plug-in electronic or hard wired magnetic drivers
:: Ultra-low profile only 1/4" deep
:: Extruded aluminum housing with white powder coat finish
:: Polycarbonate end caps with universal feed thru mono-pin receptacle
:: Smooth white acrylic lens (.125" thickness) No lamp imaging
:: Highly efficient SMD 3528 chip technology
:: Integral switch, push on push off
:: Mounting hardware and coupler included
:: Working voltage: 12V DC driver required
:: Suitable for interior applications only
:: Ambient temperature rating: - 20°C (4°F) to + 40°C (104°;F)
:: Very low profile, easy to install, cool to the touch
:: High brightness with excellent color rendition and years of maintenance free operation
:: Wide selection of mounting hardware, accessories and LED drivers
