Products

Results Shown By Individual Products

Product ImageProduct NameTechnical SpecsFeaturesDocuments

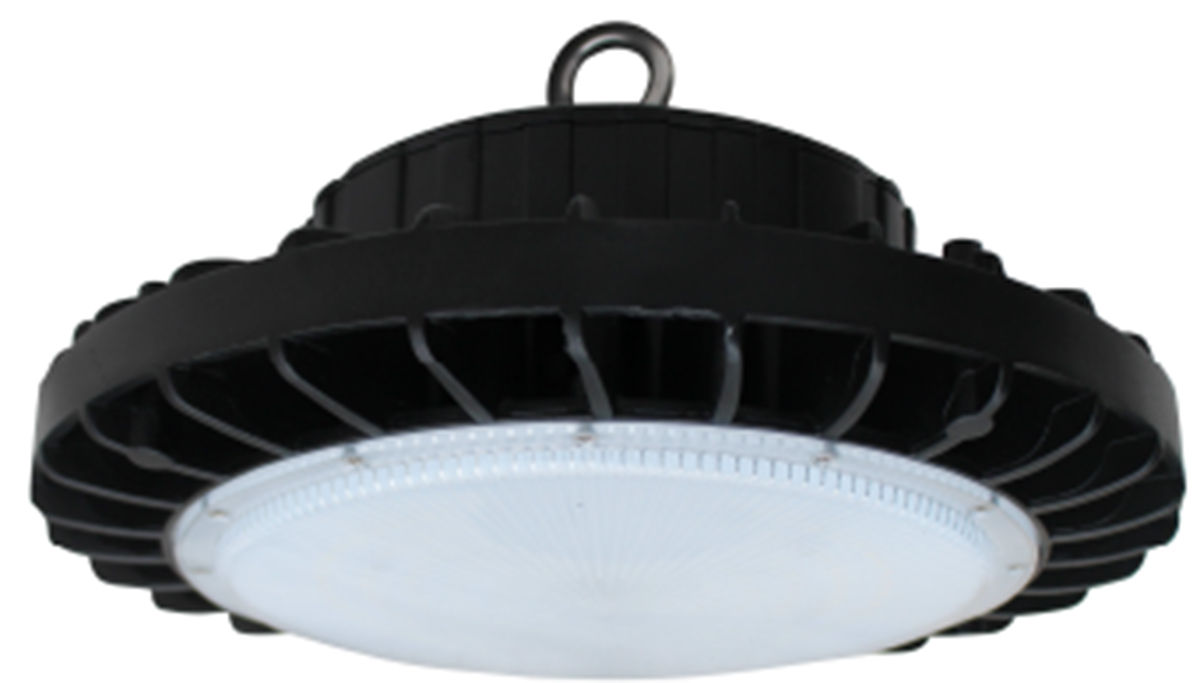

UHB-150-NWUHB-150-NW
  • :: Housing: ACD12 aluminum heat sink, SUS black plate. outdoor powder coating
  • :: Prismatic PC cover
  • :: Voltage: 120~277V; 60Hz AC
  • :: LED: LumiLEDs
  • :: Efficacy: 120LM/W
  • :: CRI: >80
  • :: Power Factor: 0.9
  • :: Beam Angle: 110°
  • :: THD: <20%
  • :: 0~10V Dimming
  • :: Operating Temp: -4°F to 122°F
  • :: Aluminum LED Board: High conductive, waterproof,aging resistance, salt mist resistance, long-life
  • :: The human body induction function (adapter soldseparately)
  • :: 7-year warranty
IconIconIconIconIconIconIconIconIcon
Document Icon

SPEC

Document Icon

CAT

UHB-100-CWUHB-100-CW
  • :: Housing: ACD12 aluminum heat sink, SUS black plate. outdoor powder coating
  • :: Prismatic PC cover
  • :: Voltage: 120~277V; 60Hz AC
  • :: LED: LumiLEDs
  • :: Efficacy: 120LM/W
  • :: CRI: >80
  • :: Power Factor: 0.9
  • :: Beam Angle: 110°
  • :: THD: <20%
  • :: 0~10V Dimming
  • :: Operating Temp: -4°F to 122°F
  • :: Aluminum LED Board: High conductive, waterproof,aging resistance, salt mist resistance, long-life
  • :: The human body induction function (adapter soldseparately)
  • :: 7-year warranty
IconIconIconIconIconIconIconIconIcon
Document Icon

SPEC

Document Icon

CAT

UHB-150-CWUHB-150-CW
  • :: Housing: ACD12 aluminum heat sink, SUS black plate. outdoor powder coating
  • :: Prismatic PC cover
  • :: Voltage: 120~277V; 60Hz AC
  • :: LED: LumiLEDs
  • :: Efficacy: 120LM/W
  • :: CRI: >80
  • :: Power Factor: 0.9
  • :: Beam Angle: 110°
  • :: THD: <20%
  • :: 0~10V Dimming
  • :: Operating Temp: -4°F to 122°F
  • :: Aluminum LED Board: High conductive, waterproof,aging resistance, salt mist resistance, long-life
  • :: The human body induction function (adapter soldseparately)
  • :: 7-year warranty
IconIconIconIconIconIconIconIconIcon
Document Icon

SPEC

Document Icon

CAT

UHB-SMB-100UHB-SMB-100
  • :: Housing: ACD12 aluminum heat sink, SUS black plate. outdoor powder coating
  • :: Prismatic PC cover
  • :: Voltage: 120~277V; 60Hz AC
  • :: LED: LumiLEDs
  • :: Efficacy: 120LM/W
  • :: CRI: >80
  • :: Power Factor: 0.9
  • :: Beam Angle: 110°
  • :: THD: <20%
  • :: 0~10V Dimming
  • :: Operating Temp: -4°F to 122°F
  • :: Aluminum LED Board: High conductive, waterproof,aging resistance, salt mist resistance, long-life
  • :: The human body induction function (adapter soldseparately)
  • :: 7-year warranty
IconIconIconIconIconIconIconIconIcon
Document Icon

CAT

UHB-100-NWUHB-100-NW
  • :: Housing: ACD12 aluminum heat sink, SUS black plate. outdoor powder coating
  • :: Prismatic PC cover
  • :: Voltage: 120~277V; 60Hz AC
  • :: LED: LumiLEDs
  • :: Efficacy: 120LM/W
  • :: CRI: >80
  • :: Power Factor: 0.9
  • :: Beam Angle: 110°
  • :: THD: <20%
  • :: 0~10V Dimming
  • :: Operating Temp: -4°F to 122°F
  • :: Aluminum LED Board: High conductive, waterproof,aging resistance, salt mist resistance, long-life
  • :: The human body induction function (adapter soldseparately)
  • :: 7-year warranty
IconIconIconIconIconIconIconIconIcon
Document Icon

SPEC

Document Icon

CAT
