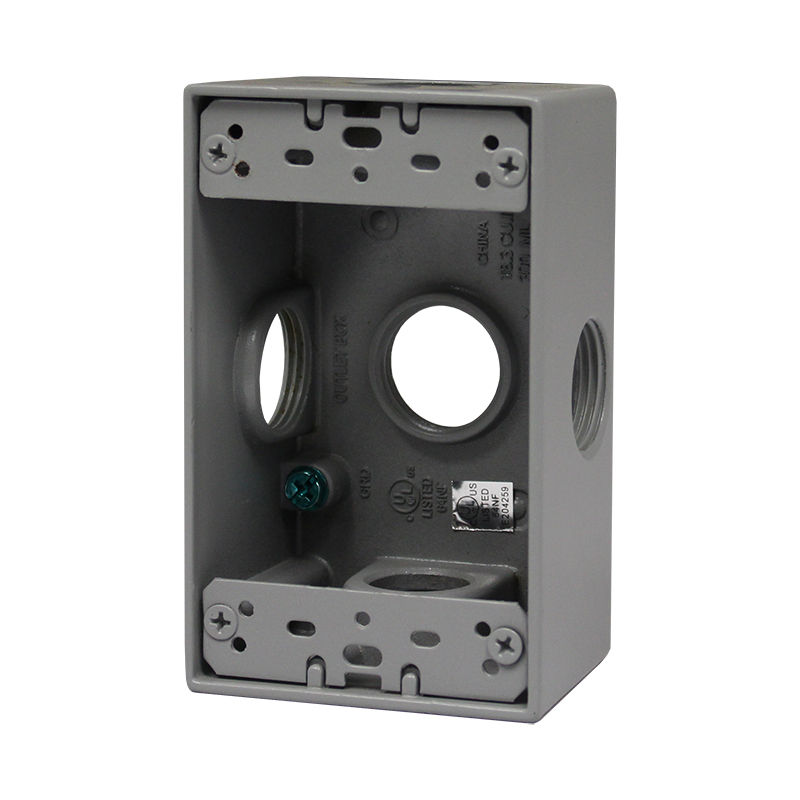

W1B75-5
W1B75-5
Technical Specs
- :: Dimensions: width 2-¾", height 4-½", depth 2"
- :: Material: die-cast aluminum with powder-coated fnish
- :: Available with 3, 4, or 5 reinforced threaded outlet holes
- :: Outlet hole sizes: available in ½" or ¾" threaded outlet holes
- :: Color: gray (select items available in white*) PRODUCT FEATURES:
- :: Scratch resistant powder-coated fnish
- :: Suitable for wet locations - NEMA 3R rated
- :: Reinforced connector outlets that accept threaded fttings & conduits
- :: Retail-ready packaging (shrink-wrapped with barcode)
- :: Closure plugs, mounting lugs and ground screws included*
- :: "X" denotes boxes with side outlets
Applications
- :: Used for branch circuit wiring in wet, damp and dry locations
- :: For use as a weatherproof junction box or to install receptacles, switches and GFCI devices
