WMCS-DL-MCT-BK-DT

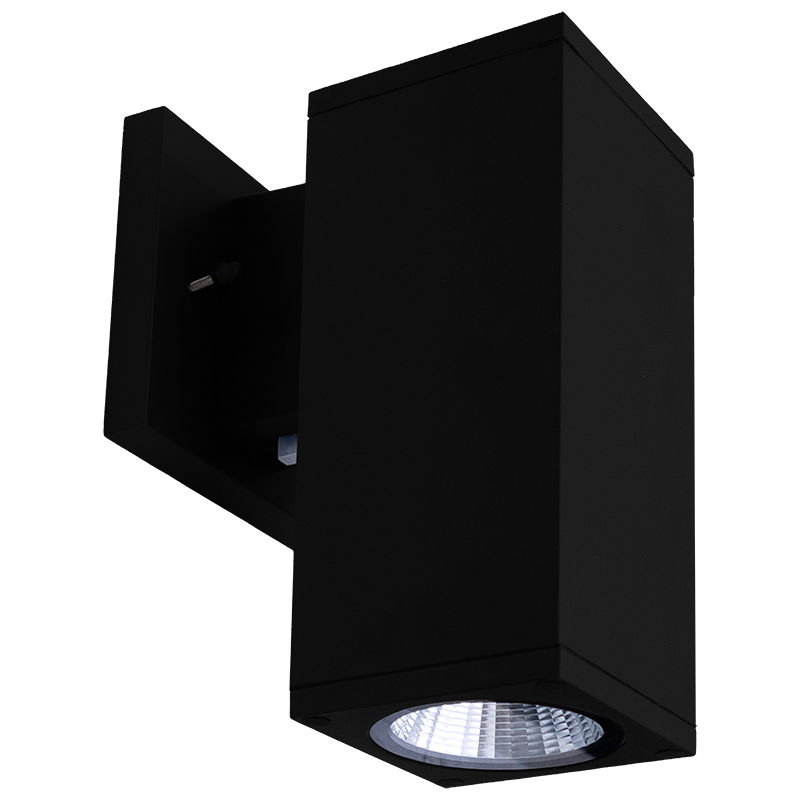

4" LED MCT Square Wall Mount Cylinder Lights, 12W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120V AC
- :: Power Factor: >0.95
- :: Wattage: 12W
- :: Efficacy: 80 LPW
- :: THD: <20%
- :: Housing: Die-cast Aluminum & Glass
- :: Finish: Black, Bronze, Brushed Nickel & White
- :: Maximum Ambient Temperature: -68°F to 104°F
- :: Suitable for Wet Location
- :: 7-Year Warranty
- :: Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
- :: Total Lumens: 960LM
- :: Color Temperatures: 3000K/4000K/5000K
- :: Multi CCT (Selectable Switch on the Bottom of the Arm, Protected by Silicon Cover to be Waterproof)
- :: Color Rendering Index: CRI ≥ 80
- :: Rated life: 70,000 hrs
- :: Beam angle: 45º
Applications
- :: Ideal for general site lighting, walkways, and stairways, alleys, loading docks, doorway, pathway and parking areas
