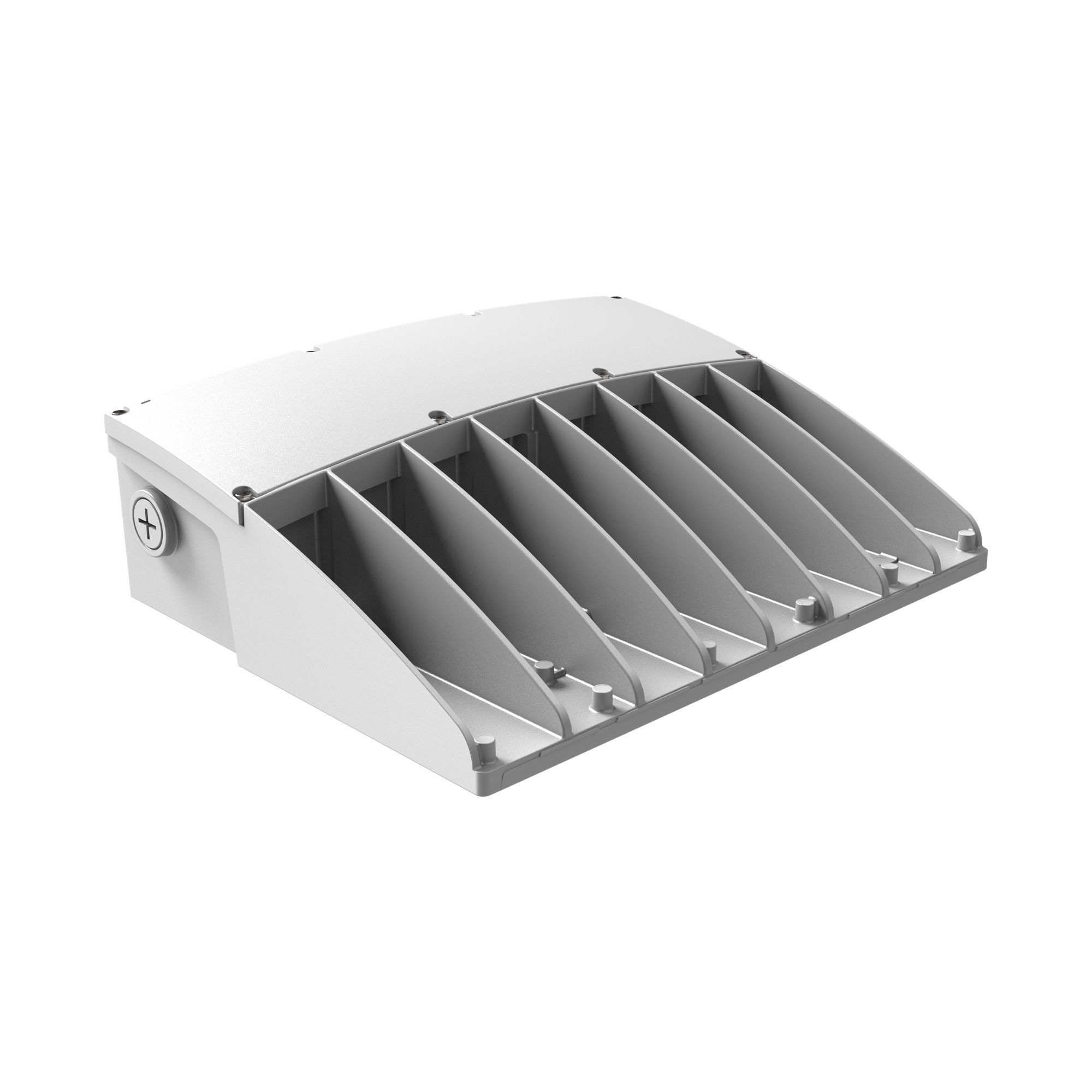

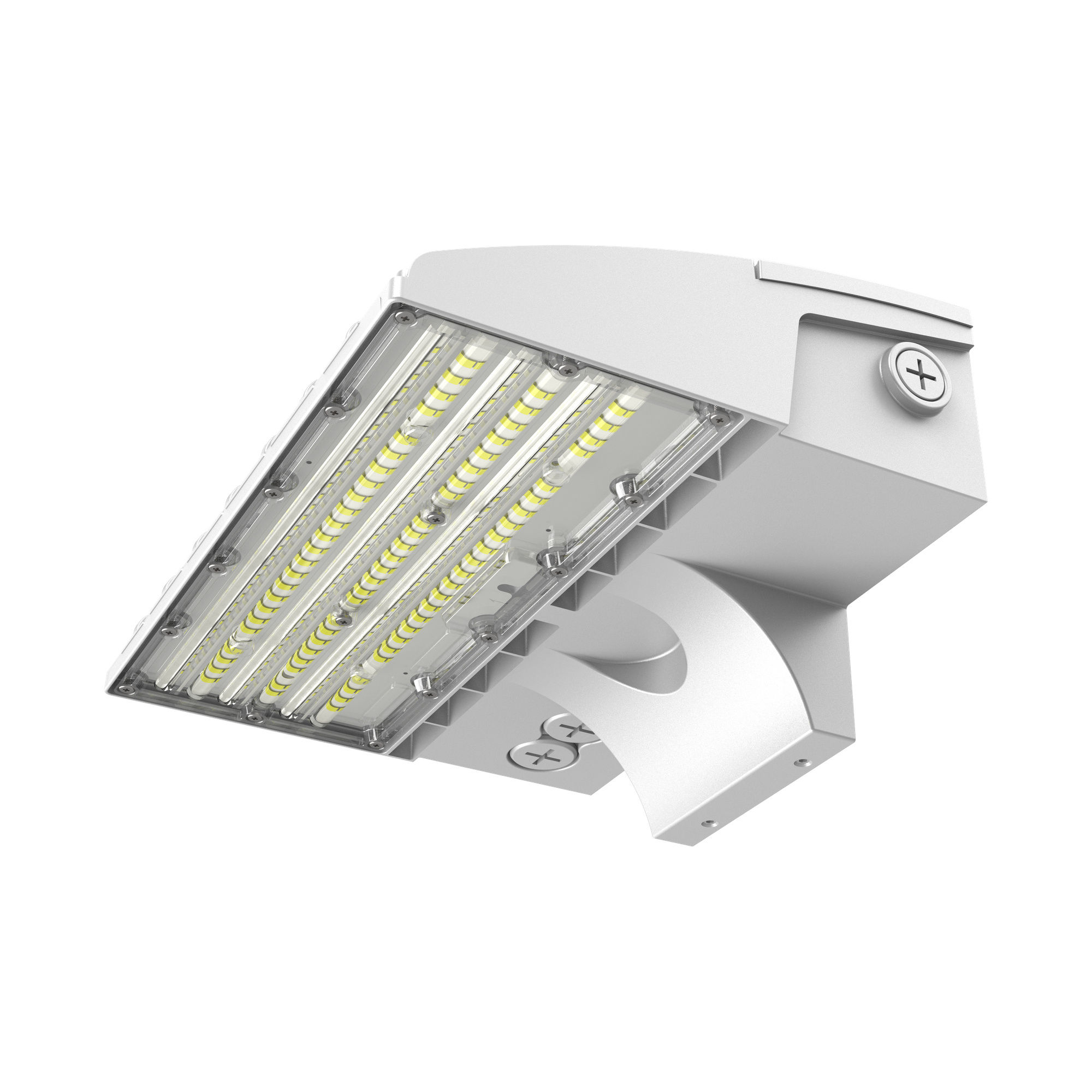

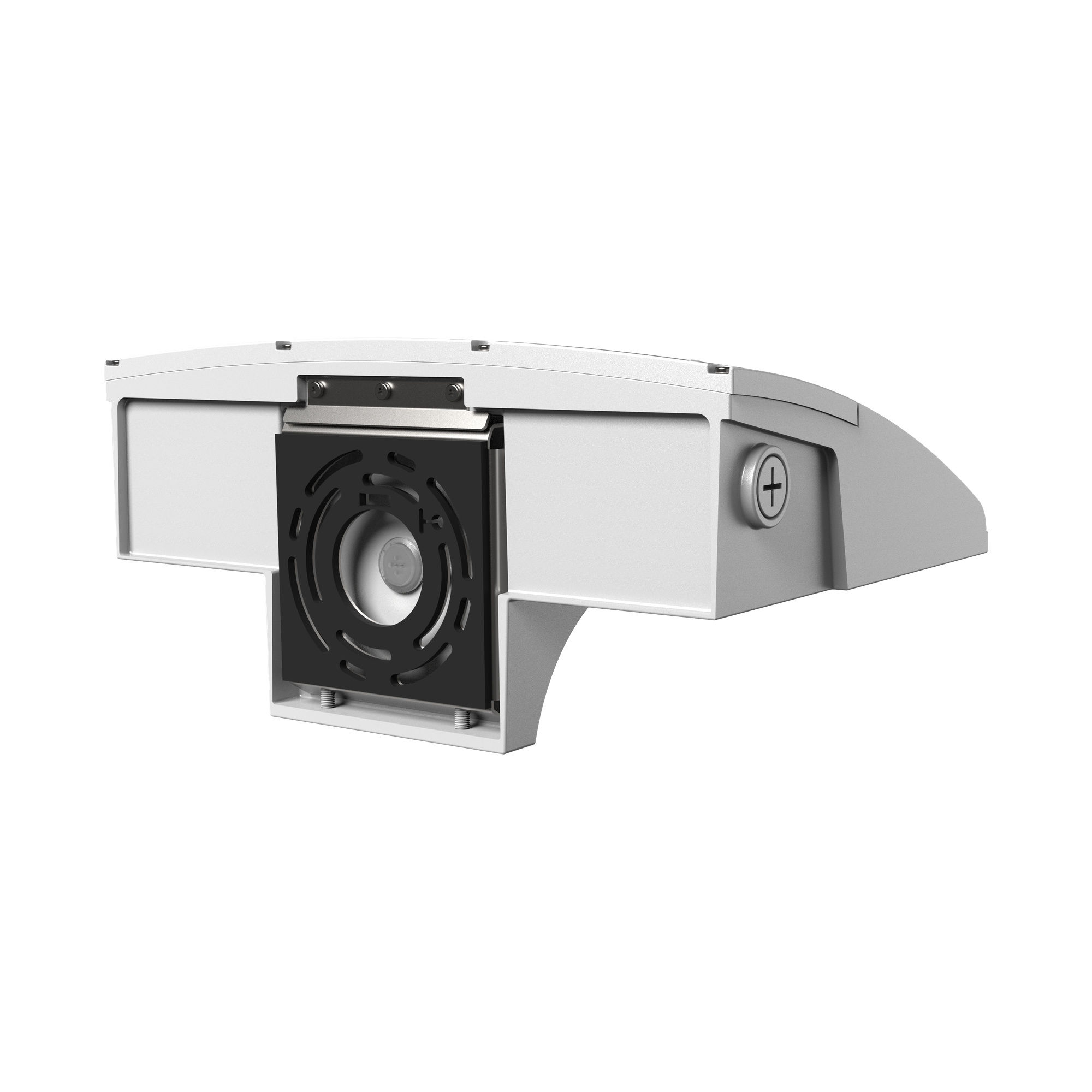

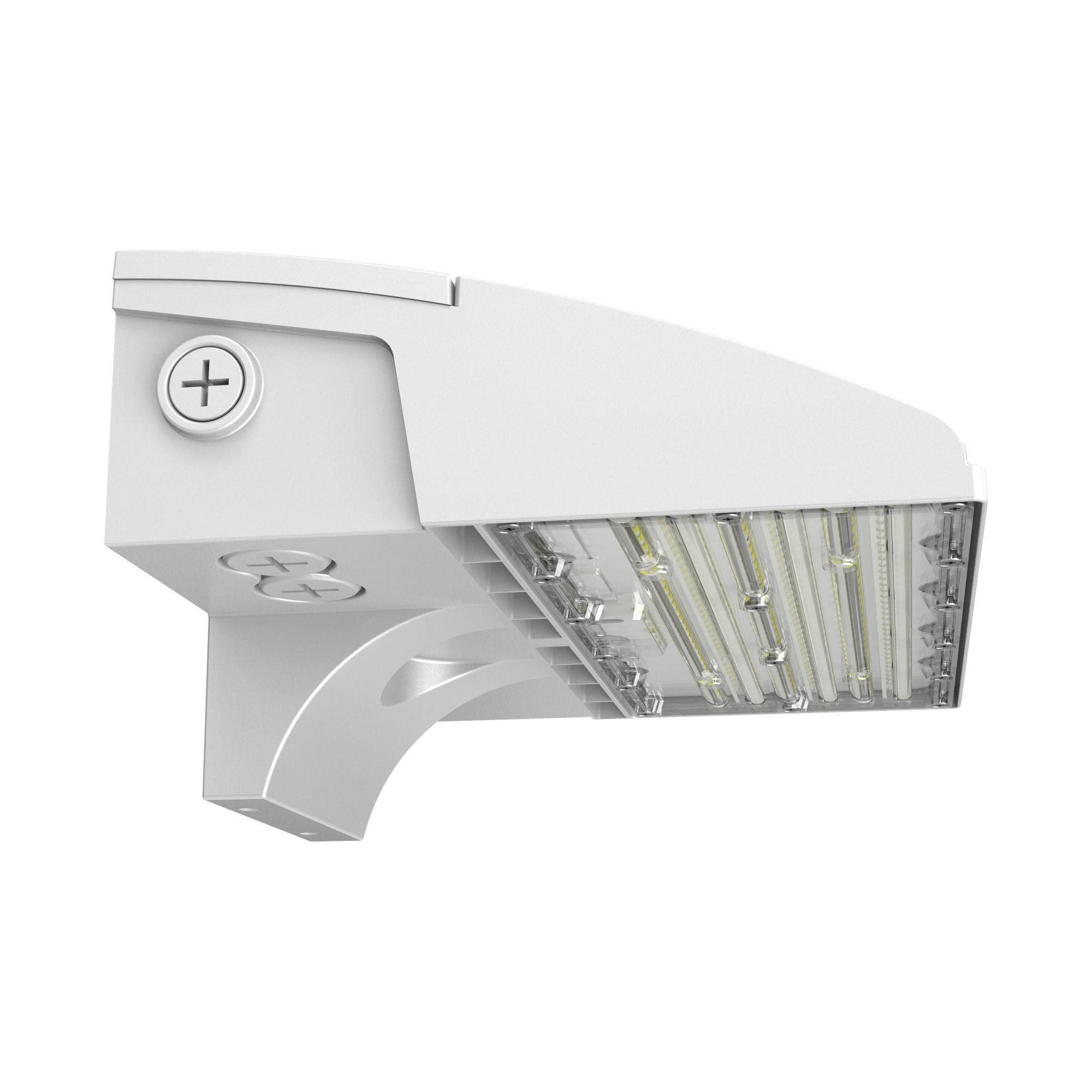

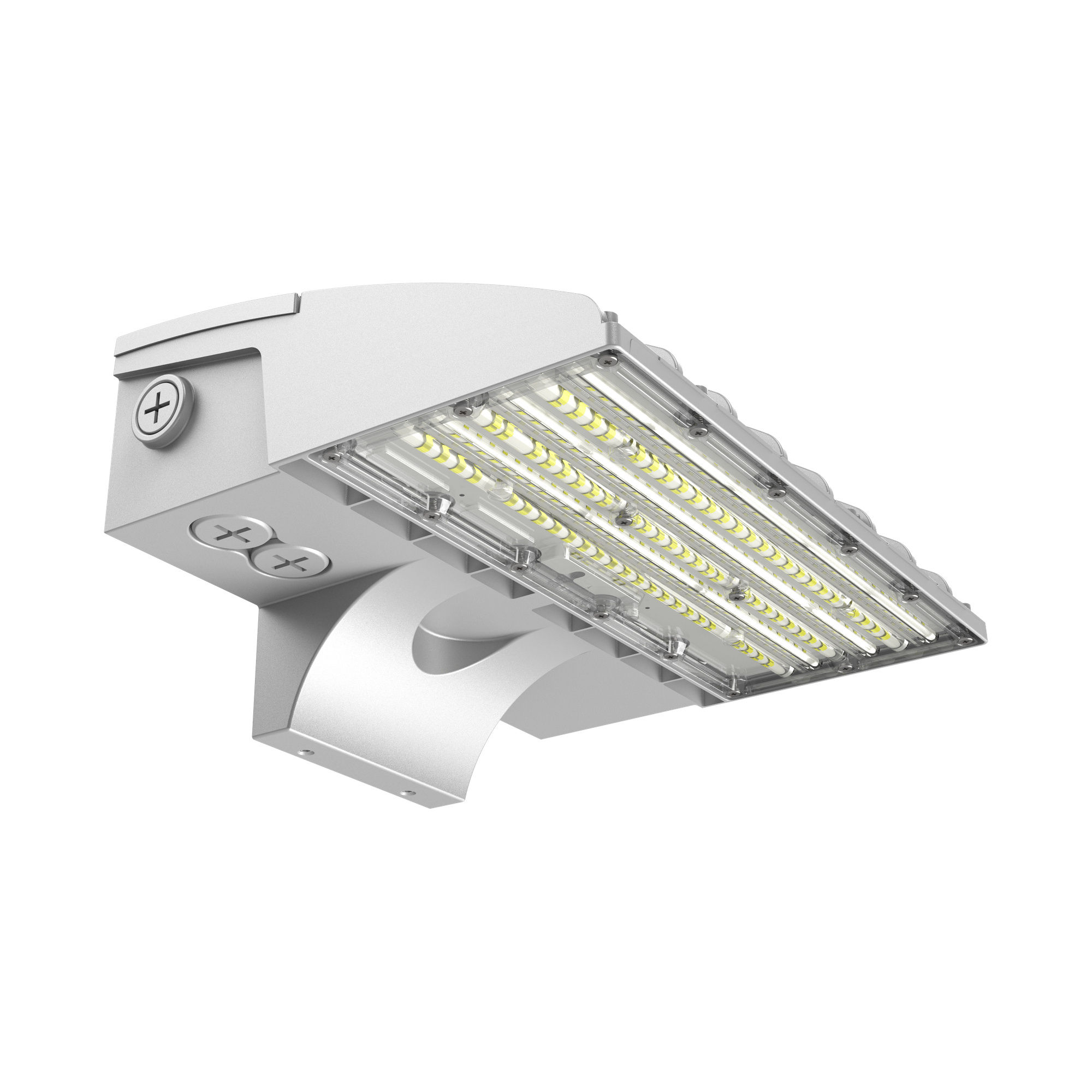

WPCX-36-60W-MCTPB-SIL Silver 36W-60W Full Cutoff LED Wall Pack with Photocell
Technical Specs
- :: Input Voltage: 120-277VAC, 60Hz
- :: Wattage: 36W / 48W / 60W, field selectable
- :: Power Factor: >0.95
- :: Dimming: 0-10V
- :: Lumens: 4,860 LM / 6,400 LM / 8,100 LM
- :: Efficacy: 160 LPW
- :: CCT: 3000K / 4000K / 5000K, field selectable
- :: CRI: ≥80
- :: Distribution: Switch-selectable Type II, Type III, Type IV
- :: BUG Rating: B0-U0-G1
- :: Photocell: DC button photocell with ON/OFF switch included
- :: Housing: Die-cast aluminum, Silver powder coat finish
- :: Lens: High transmittance, anti-UV, fire-resistant shatterproof PC
- :: Full Cutoff, Dark Sky Compliant
- :: Dimensions: 14.44-inch W x 9.6-inch H x 6.14-inch D
- :: IP Rating: IP65, Wet Location
- :: Operating Temp: -4°F to 104°F
- :: Rated Life: 70,000 hours
- :: Warranty: 7 years
- :: Certifications: cULus Listed, DLC Premium
Applications
- :: The Westgate WPCX 36W-60W wall pack delivers glare-controlled light for exterior or interior use at hotels, garages, commercial buildings, public areas, schools, and hospitals. Field-adjustable power, color temperature, and light distribution let one fixture adapt to wide walkways, ramps, entrance roadways, and other long, narrow areas, while the full cutoff design keeps light directed down. As the mid-range output option in the series, it is ideal for building perimeters, wide walkways, and drive lanes. This model features a bright Silver finish that complements light-colored, metal, and contemporary exteriors, and the same fixture is also available in Bronze and Black.
