WPVX-40W-RGBWW-BT-BK 40W Black Smart RGBWW Half-Moon LED Wall Pack with Bluetooth
Technical Specs
- :: Input Voltage: 120-277VAC, 50/60Hz
- :: Wattage: 40W
- :: Power Factor: ≥0.9
- :: THD: ≤20%
- :: Flicker: <5%
- :: Surge Protection: 6kV L/N-PE, 6kV L-N
- :: White Output: 5,112 LM, 126 LPW
- :: RGB Output: Red 621 LM, Green 1,855 LM, Blue 376 LM
- :: Color: Tunable white 2700K-6500K plus full RGB color mixing
- :: CRI: >80 (white)
- :: Color Consistency: <5 SDCM (white)
- :: Distribution: Type II, Very Short; full cutoff, 0% uplight
- :: Controls: Bluetooth mesh via Westgate Smart app (iOS/Android); on/off, dimming, color, scenes; approx. 30 ft range; Wi-Fi gateway (sold separately) required for remote and voice control with Google Assistant and Amazon Alexa

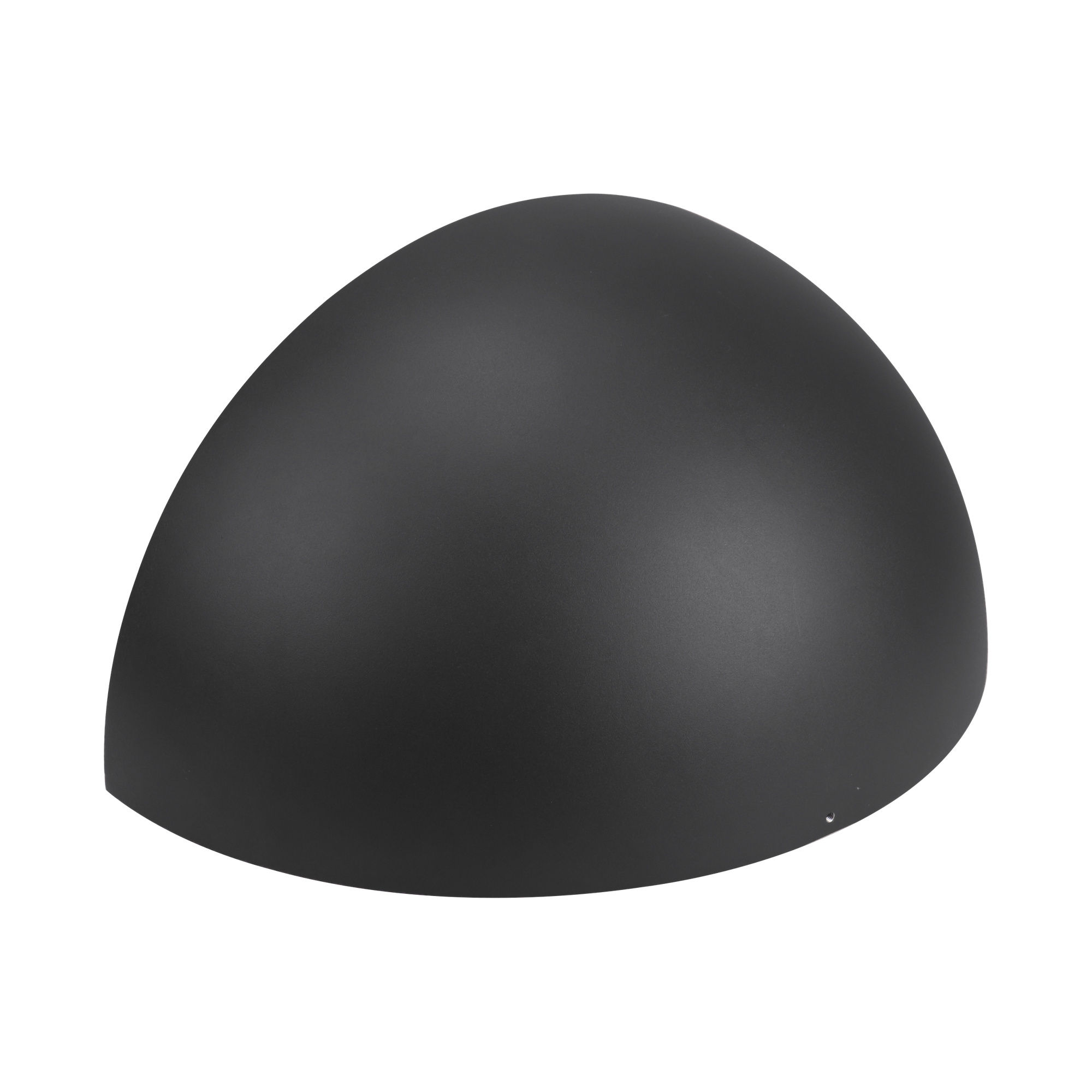

- :: Housing: Die-cast aluminum, Black finish
- :: Lens: Polycarbonate with stripe diffuser
- :: Mounting: Wall mount
- :: Dimensions: 14.2-inch W x 7.2-inch H x 7.1-inch D
- :: Weight: 5.9 lbs
- :: IP Rating: IP65, Wet Location
- :: Operating Temp: -40°F to 122°F
- :: Warranty: 5 years
- :: Certifications: UL Listed (US and Canada)
Applications
- :: The Westgate WPVX 40W smart wall pack brings color and character to building entrances, courtyards, hotels, facades, and landscape lighting. It shifts easily from warm, welcoming white to vivid brand colors or seasonal themes, all controlled from the Westgate Smart app over Bluetooth mesh, with voice control through Google Assistant or Amazon Alexa available using a gateway. The full cutoff design keeps light directed down for dark sky friendly installations, and optional half-cylinder and slope trims let the fixture match different architectural styles. As the lower-output model in the series, it is ideal for entrances, smaller courtyards, and accent lighting on building walls, while the 80W model is available for larger facades and areas that need more light.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 WPVX-C-TRIM-BK SPEC | Black Half-Cylinder Trim for WPVX Half-Moon Wall Pack | ||
 WPVX-S-TRIM-BK SPEC | Black Slope Trim for WPVX Half-Moon Wall Pack |
