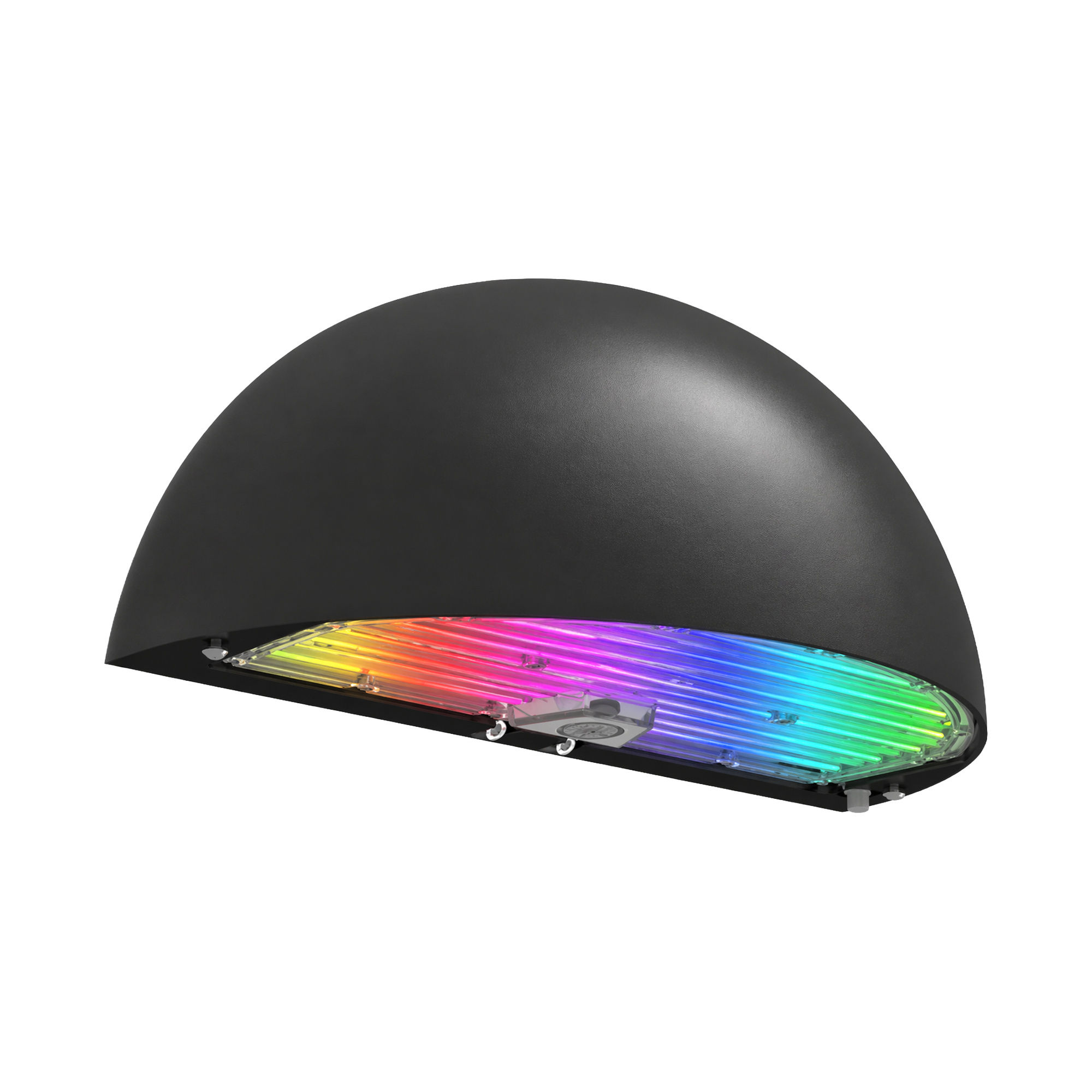

WPVX-80W-RGBWW-BT-BK 80W Black Smart RGBWW Half-Moon LED Wall Pack with Bluetooth
Technical Specs
- :: Input Voltage: 120-277VAC, 50/60Hz
- :: Wattage: 80W
- :: Power Factor: ≥0.9
- :: THD: ≤20%
- :: Flicker: <5%
- :: Surge Protection: 6kV L/N-PE, 6kV L-N
- :: White Output: 11,150 LM, 133 LPW
- :: RGB Output: Red 1,030 LM, Green 3,256 LM, Blue 695 LM
- :: Color: Tunable white 2700K-6500K plus full RGB color mixing
- :: CRI: >80 (white)
- :: Color Consistency: <5 SDCM (white)
- :: Distribution: Type II, Very Short; full cutoff, 0% uplight
- :: Controls: Bluetooth mesh via Westgate Smart app (iOS/Android); on/off, dimming, color, scenes; approx. 30 ft range; Wi-Fi gateway (sold separately) required for remote and voice control with Google Assistant and Amazon Alexa
- :: Housing: Die-cast aluminum, Black finish
- :: Lens: Polycarbonate with stripe diffuser
- :: Mounting: Wall mount
- :: Dimensions: 14.2-inch W x 7.2-inch H x 7.1-inch D
- :: Weight: 5.9 lbs
- :: IP Rating: IP65, Wet Location
- :: Operating Temp: -40°F to 122°F
- :: Warranty: 5 years
- :: Certifications: UL Listed (US and Canada)
Applications
- :: The Westgate WPVX 80W smart wall pack brings color and character to building entrances, courtyards, hotels, facades, and landscape lighting. It shifts easily from warm, welcoming white to vivid brand colors or seasonal themes, all controlled from the Westgate Smart app over Bluetooth mesh, with voice control through Google Assistant or Amazon Alexa available using a gateway. The full cutoff design keeps light directed down for dark sky friendly installations, and optional half-cylinder and slope trims let the fixture match different architectural styles. As the higher-output model in the series, it is ideal for larger facades, hotel exteriors, and wide courtyards that need more light and bolder color, while the 40W model is available for entrances and smaller spaces.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 WPVX-C-TRIM-BK SPEC | Black Half-Cylinder Trim for WPVX Half-Moon Wall Pack | ||
 WPVX-S-TRIM-BK SPEC | Black Slope Trim for WPVX Half-Moon Wall Pack |
