SPEC SHEET

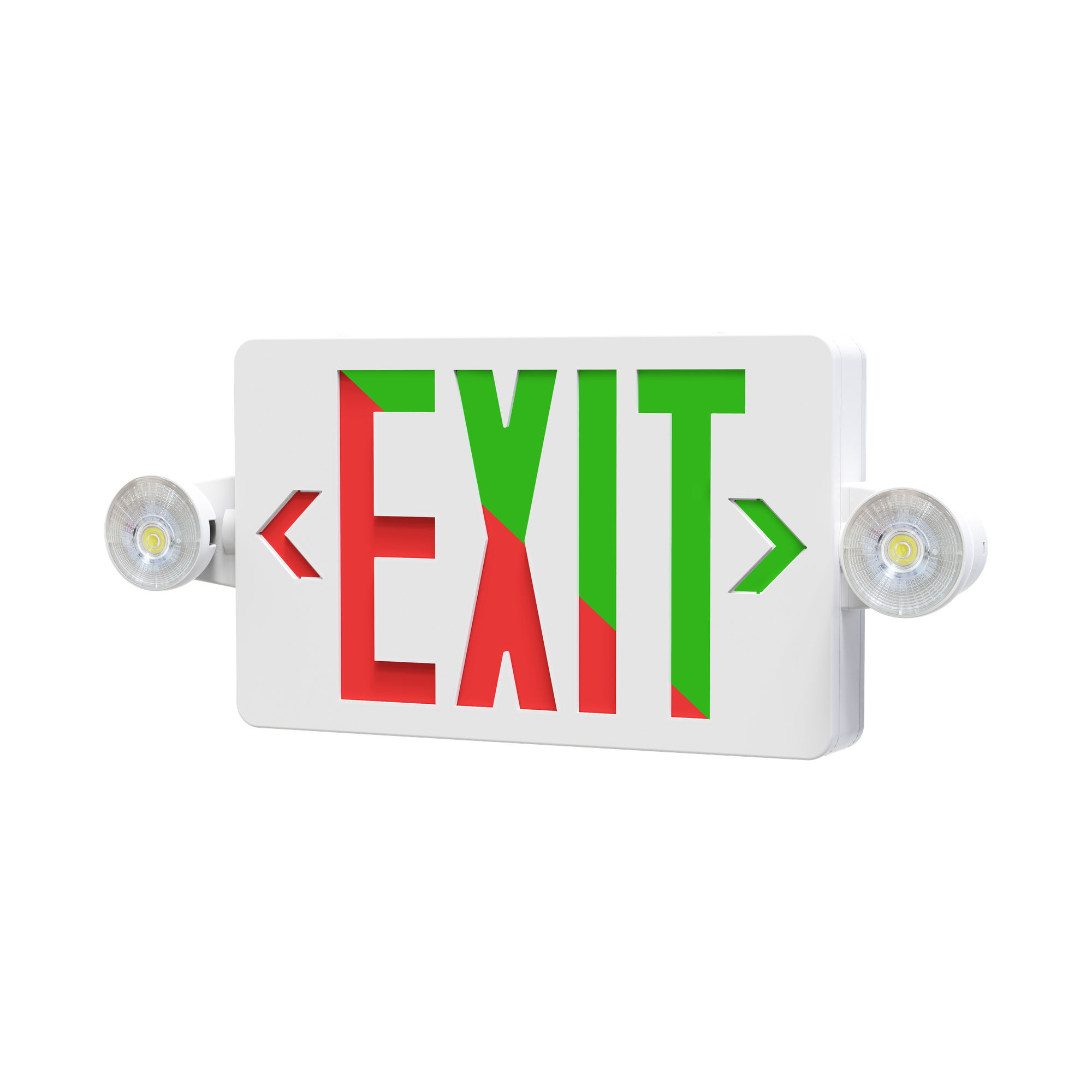

XTU-CLR-RG-EM-SDT Self-Diagnostic Red/Green LED Exit Sign & Emergency Light Combo, Universal Single/Double Face

:: Voltage: 120/277VAC dual voltage
:: Light Head Wattage: 2.8W per head
:: Input Power: 2.90W to 3.79W
:: Lumens: 160 lm
:: Color Temp: 6132K
:: Exit Sign: Red or green letters, 6-inch H with 3/4-inch stroke
:: Lenses: Red and green included, red default; color switch inside
:: Face: Single or double face (universal)
:: Self-Diagnostics: Automatic self-test function
:: Battery: 3.6V 1200mAh Ni-MH, 90 minutes minimum emergency operation
:: Charging: Two-rate charger, 24-hour full recharge, 32mA charging current
:: Controls: Charge/power ON LED indicator and push-to-test switch
:: Housing: Injection-molded thermoplastic ABS, polycarbonate cover, UL 94V-0
:: Finish: White
:: Mounting: Universal J-box mounting pattern
:: Dimensions: 16-3/4-inch W x 7-1/4-inch H x 2-3/8-inch D
:: Operating Temp: 32°F to 104°F (0°C to 40°C)
:: Location: Indoor only, IP20
:: BUG Rating: B0-U1-G0
:: Warranty: 3 years
:: Certifications: cULus Listed

:: The Westgate XTU-CLR-RG-EM-SDT combines an LED exit sign and two adjustable round emergency heads in one compact unit, giving building occupants clear direction to the nearest means of egress. It is ideal for every exit door, the intersection of corridors, exit stairways and ramps in offices, schools, retail stores, healthcare facilities, warehouses and other commercial buildings. The universal design ships with both red and green lenses and installs as a single or double face sign. What sets this model apart is its built-in self-diagnostic, self-test function, which automates routine testing to reduce manual inspections and maintenance, making it ideal for large facilities with many units. The XTU-CLR-RG-EM offers the same sign without self-diagnostics.
