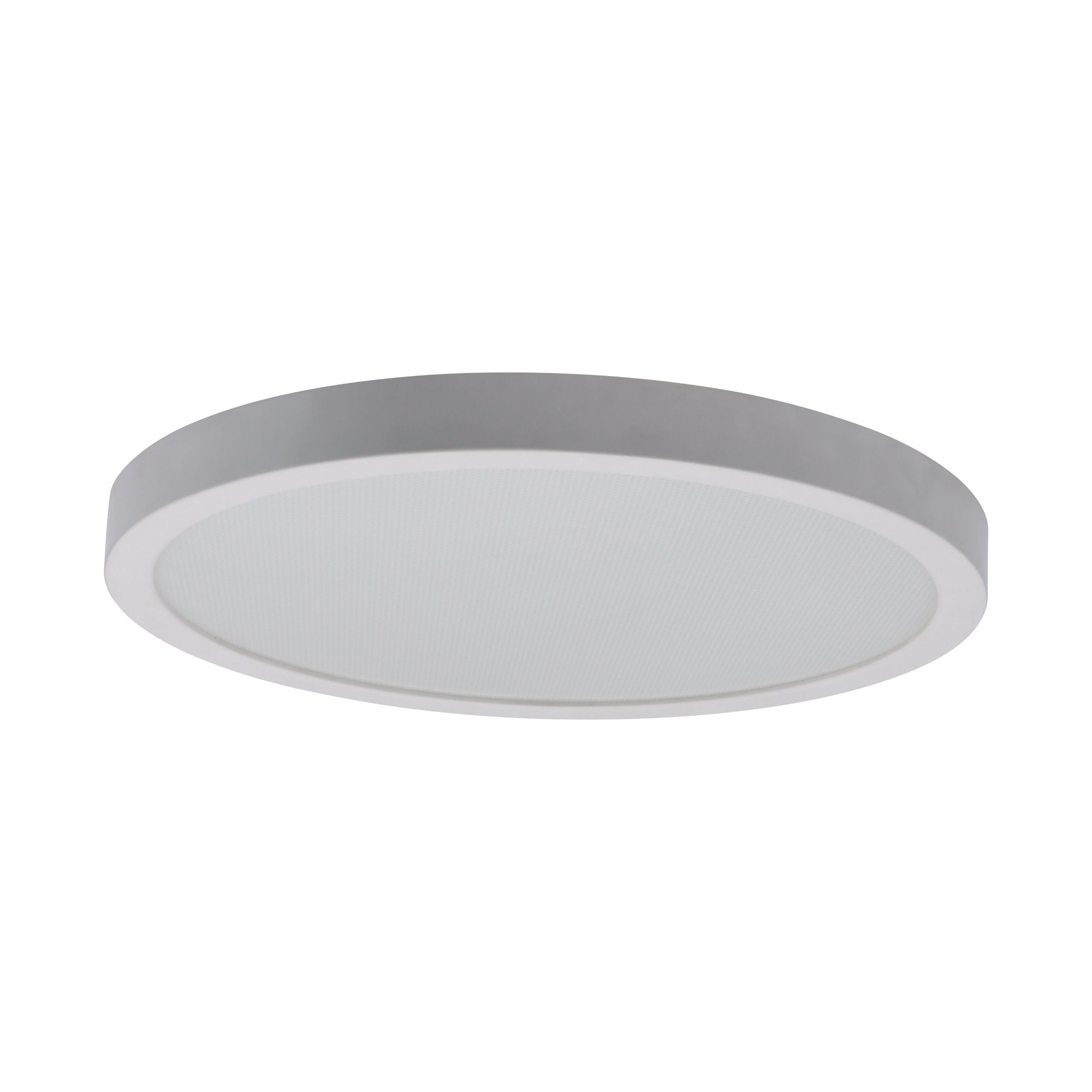

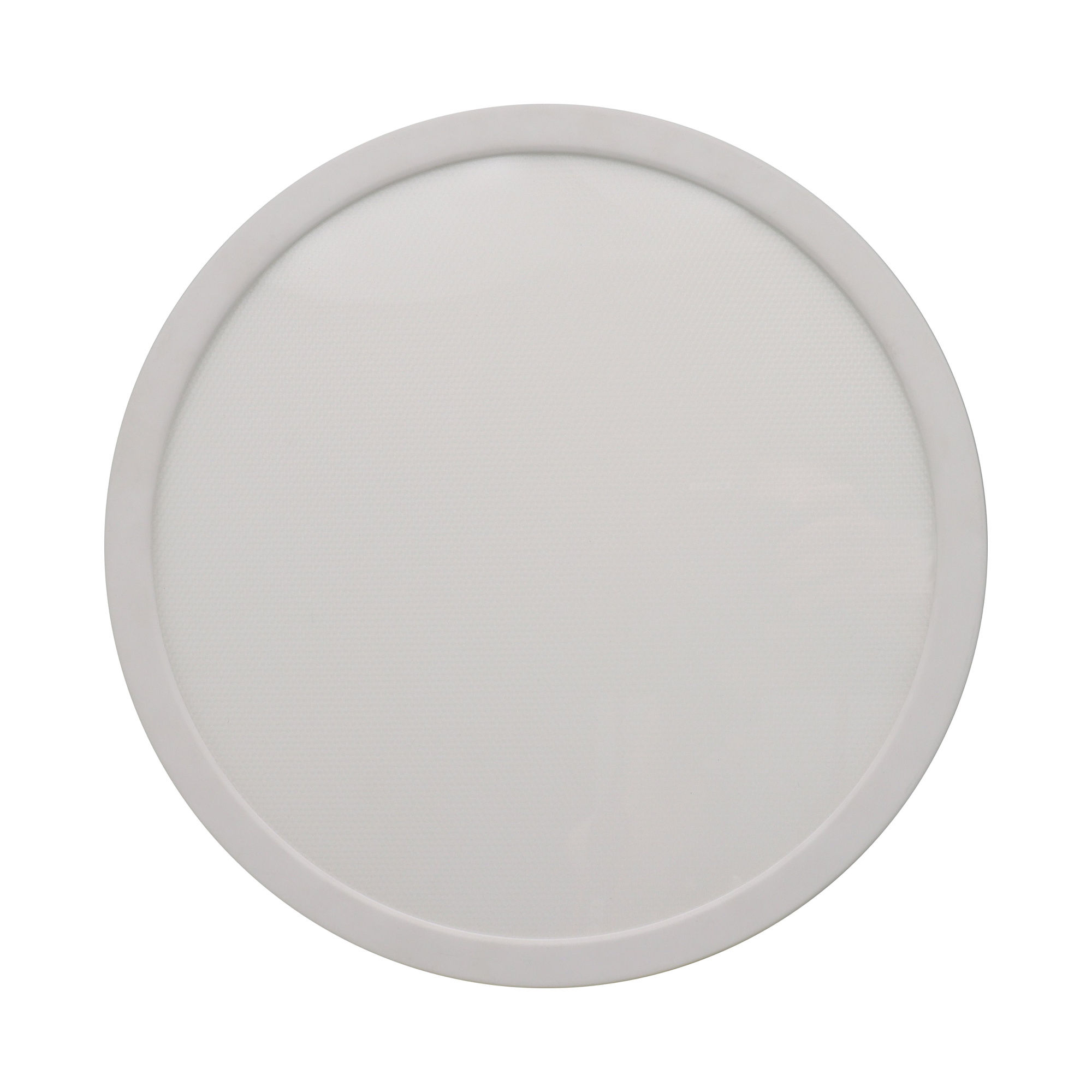

FML-UGR-010V-SERIES FML-UGR-010V Series Low-Glare UGR<19 LED Flush Mount, 5CCT Selectable, 0-10V Dimmable

Technical Specs

  • :: Input Voltage: 120-277V AC
  • :: Wattage: 11W to 50W (by size)
  • :: Power Factor: >0.90
  • :: Dimming: 0-10V
  • :: Lumens: 660 LM to 3,500 LM
  • :: Efficacy: 60 to 70 LPW
  • :: CCT: 2700K / 3000K / 3500K / 4000K / 5000K, selectable via switch on LED board under the lens
  • :: CRI: ≥90
  • :: Glare: UGR<19, low-glare
  • :: Optics: Edge-lit, white translucent acrylic lens
  • :: Driver: Driver on board (DOB), LED board enclosed in clear PC cover
  • :: Housing: Die-cast aluminum, White powder coat finish
  • :: Dimensions: 6-inch to 24-inch Dia. x 1-inch D
  • :: Location: Damp location
  • :: Max Ambient Temp: 104°F
  • :: Rated Life: 50,000 hours
  • :: Warranty: 5 years
  • :: Certifications: cETLus Listed, Title 24

Applications

  • :: The Westgate FML-UGR-010V Series is an ultra-slim, 1-inch-deep flush mount that delivers comfortable, low-glare ambient light for residential and commercial spaces. With UGR<19 visual comfort, it is ideal for hallways, kitchens, family rooms, bathrooms, closets, bedrooms, storage areas, attics, and corridors, and its damp location rating suits bathrooms and other humid areas. Five selectable color temperatures let one fixture match any room, 90 CRI renders colors naturally, and 0-10V dimming with 120-277V input makes it a strong fit for commercial projects as well as homes. Optional trims, rod and suspension kits, an uplight module, and emergency packages let the series adapt to many installations. Available in sizes from 6-inch to 24-inch.
  • Variations
  • Q & A (0)

Product NameHousing FinishLumensColor TempWattsVoltageFactory-Installed OptionsFeatures
6-Inch 11W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
White660 LM2700K / 3000K / 3500K / 4000K / 5000K11W120-277V
  • option-icon

    OPT-EM-DLS6

  • option-icon

    OPT-EM-FML-R6

ETL Listed
Dimming 0-10V
DAMP
MCT5
Where to Buy
8-Inch 14W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
White980 LM2700K / 3000K / 3500K / 4000K / 5000K14W 120-277V
    ETL Listed
    Dimming 0-10V
    DAMP
    MCT5
    Where to Buy
    10-Inch 17W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
    		White1,020 LM2700K / 3000K / 3500K / 4000K / 5000K17W 120-277V
      ETL Listed
      Dimming 0-10V
      DAMP
      MCT5
      Where to Buy
      12-Inch 22W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
      		White1,540 LM2700K / 3000K / 3500K / 4000K / 5000K22W 120-277V
        ETL Listed
        Dimming 0-10V
        DAMP
        MCT5
        Where to Buy
        16-Inch 30W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
        		White2,100 LM2700K / 3000K / 3500K / 4000K / 5000K30W 120-277V
          ETL Listed
          Dimming 0-10V
          DAMP
          MCT5
          Where to Buy
          18-Inch 35W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
          		White2,450 LM2700K / 3000K / 3500K / 4000K / 5000K35W 120-277V
            ETL Listed
            Dimming 0-10V
            DAMP
            MCT5
            Where to Buy
            20-Inch 40W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
            		White2,800 LM2700K / 3000K / 3500K / 4000K / 5000K40W 120-277V
              ETL Listed
              Dimming 0-10V
              DAMP
              MCT5
              Where to Buy
              22-Inch 45W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
              		White3,150 LM2700K / 3000K / 3500K / 4000K / 5000K45W 120-277V
                ETL Listed
                Dimming 0-10V
                DAMP
                MCT5
                Where to Buy
                24-Inch 50W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V
                		White3,500 LM2700K / 3000K / 3500K / 4000K / 5000K50W 120-277V
                  ETL Listed
                  Dimming 0-10V
                  DAMP
                  MCT5
                  Where to Buy

                  ACCESSORIES

                  Product NameDescription
                  Architectural Die-Cast Flush Mount Fixture Trim
                  		6" Round Trim for FML-R6 Series - Black
                  Where to Buy
                  Architectural Die-Cast Flush Mount Fixture Trim
                  		6" Round Trim for FML-R6 Series - Brushed Nickel
                  Where to Buy
                  Architectural Die-Cast Flush Mount Fixture Trim
                  		6" Round Trim for FML-R6 Series - Bronze
                  Where to Buy
                  Architectural Die-Cast Flush Mount Fixture Trim
                  		8" Round Trim for FML-R8 Series - Black
                  Where to Buy
                  Architectural Die-Cast Flush Mount Fixture Trim
                  		8" Round Trim for FML-R8 Series - Brushed Nickel
                  Where to Buy
                  Architectural Die-Cast Flush Mount Fixture Trim
                  		8" Round Trim for FML-R8 Series - Bronze
                  Where to Buy
