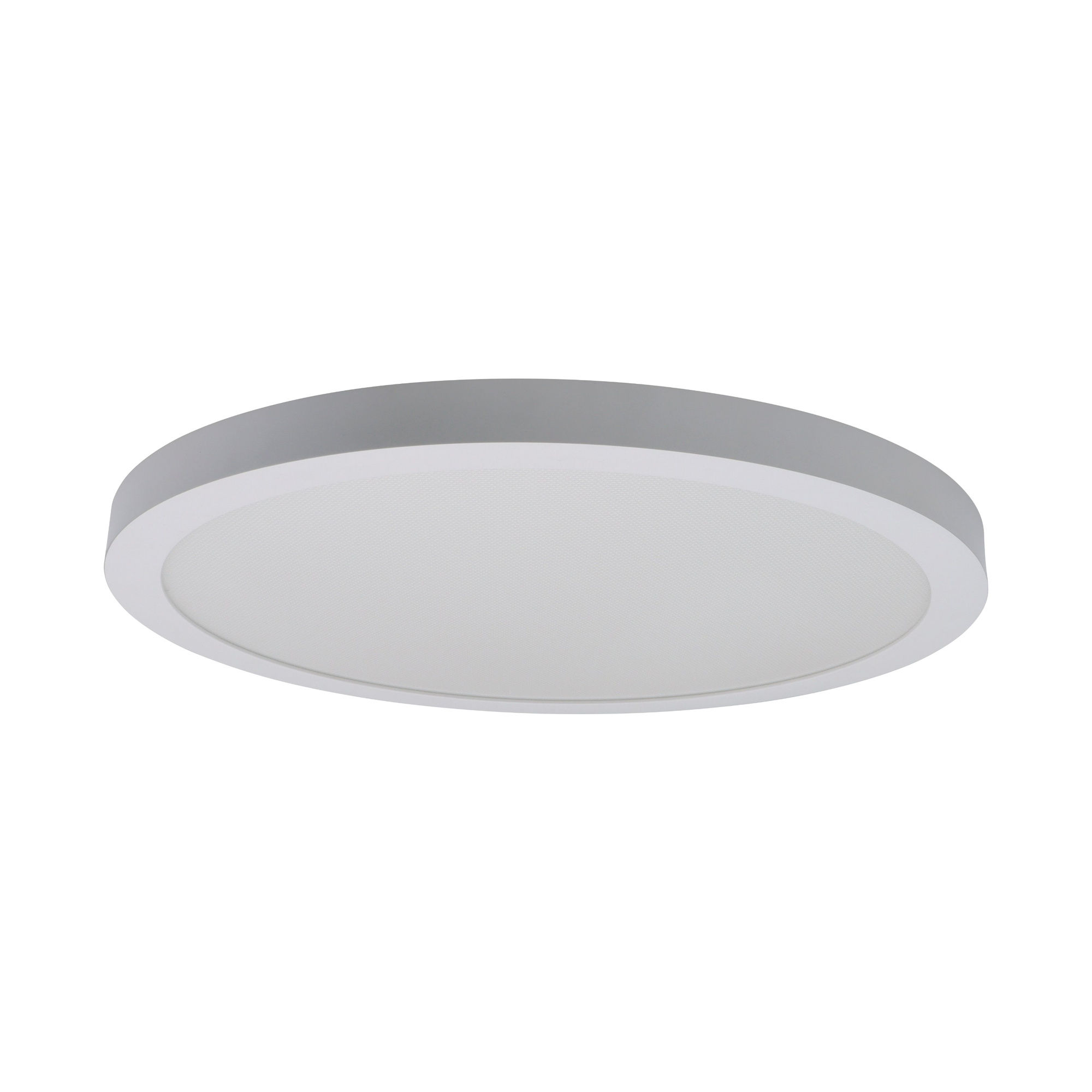

FML-R16-MCT5-UGR-010V 16-Inch 30W Low-Glare UGR<19 LED Flush Mount, 5CCT, 0-10V

:: Input Voltage: 120-277V AC
:: Wattage: 30W
:: Power Factor: >0.90
:: Dimming: 0-10V
:: Lumens: 2,100 LM
:: Efficacy: 70 LPW
:: CCT: 2700K / 3000K / 3500K / 4000K / 5000K, selectable via switch on LED board under the lens
:: CRI: ≥90
:: Glare: UGR<19, low-glare
:: BUG Rating: B1-U1-G1
:: Optics: Edge-lit, white translucent acrylic lens
:: Driver: Driver on board (DOB), LED board enclosed in clear PC cover
:: Housing: Die-cast aluminum, White powder coat finish
:: Dimensions: 16-inch Dia. x 1-inch D
:: Location: Damp location
:: Max Ambient Temp: 104°F
:: Rated Life: 50,000 hours
:: Warranty: 5 years
:: Certifications: cETLus Listed, Title 24

:: The Westgate FML 16-inch flush mount delivers comfortable, low-glare ambient light in an ultra-slim, 1-inch-deep profile. Its larger size makes it ideal for kitchens, family rooms, bedrooms, offices, and corridors, and its damp location rating suits humid spaces. Five selectable color temperatures let one fixture match any room, 90 CRI renders colors naturally, and 0-10V dimming with 120-277V input fits commercial projects as well as homes. An optional rod kit converts it to a semi-flush installation, and a factory-installed emergency package is available.
