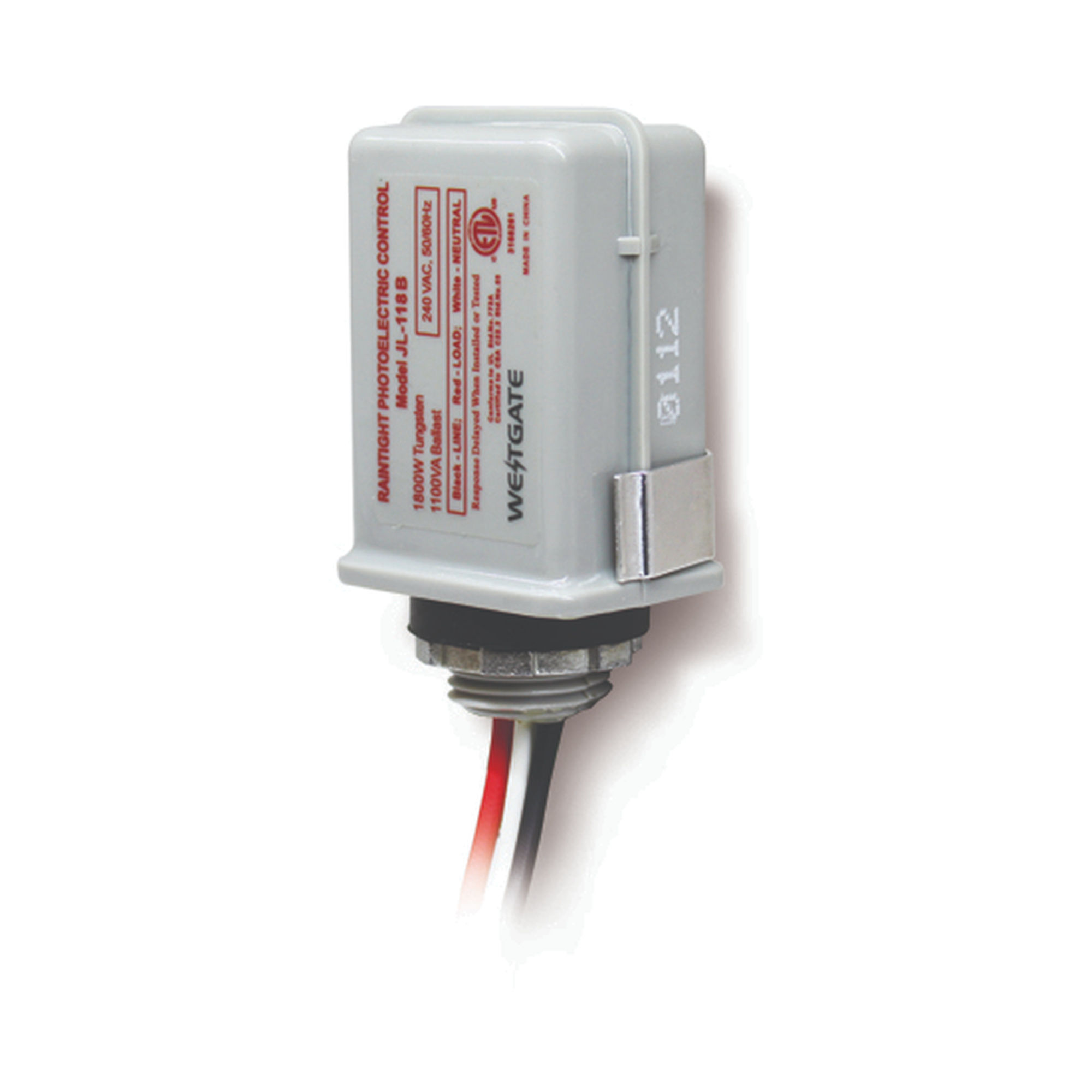

PC-1-SERIES PC-1 Series Dusk-to-Dawn Photocell Light Switches
Technical Specs
- :: Dusk-to-dawn photocell light switch
- :: Input voltage 120V AC (100-120VAC), 50/60Hz
- :: Rated load 1800W tungsten / 1100VA ballast
- :: Power consumption 1.5VA
- :: On/Off levels 10~20 Lx On (dusk) / 30~60 Lx Off (dawn)
- :: Reaction time 30 seconds
- :: Detection angle 180°
- :: Stem size 1/2-inch NPT
- :: Wire length 6-inch, AWG #16
- :: Operating temperature -40°F to 158°F
- :: IP54 rated
- :: UL Listed (E495588); conforms to UL 773A
Applications
- :: The Westgate PC-1 Series automatically turns lighting on at dusk and off at dawn, taking the guesswork out of outdoor lighting control. Weatherproof and built for the elements, it is the reliable choice for all outdoor lights, from building exteriors and parking areas to walkways, signage, and security lighting.
- Variations
- Q & A (0)
| Product Name | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|
 PC-1  SPEC | 1.5VA power consumption; switches up to 1800W tungsten / 1100VA ballast | 120V Dusk-to-Dawn Photocell Light Switch | 120V AC |  |
