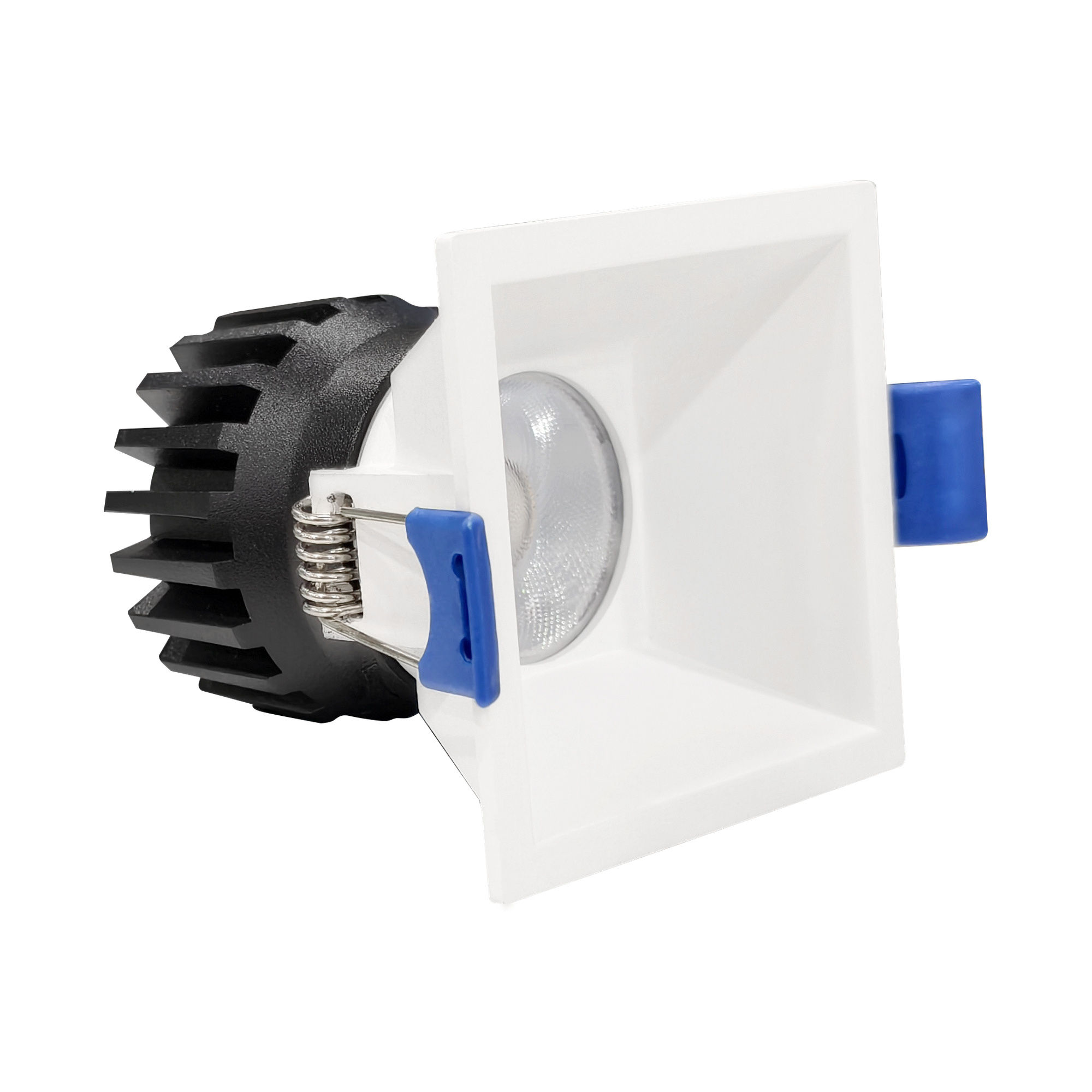

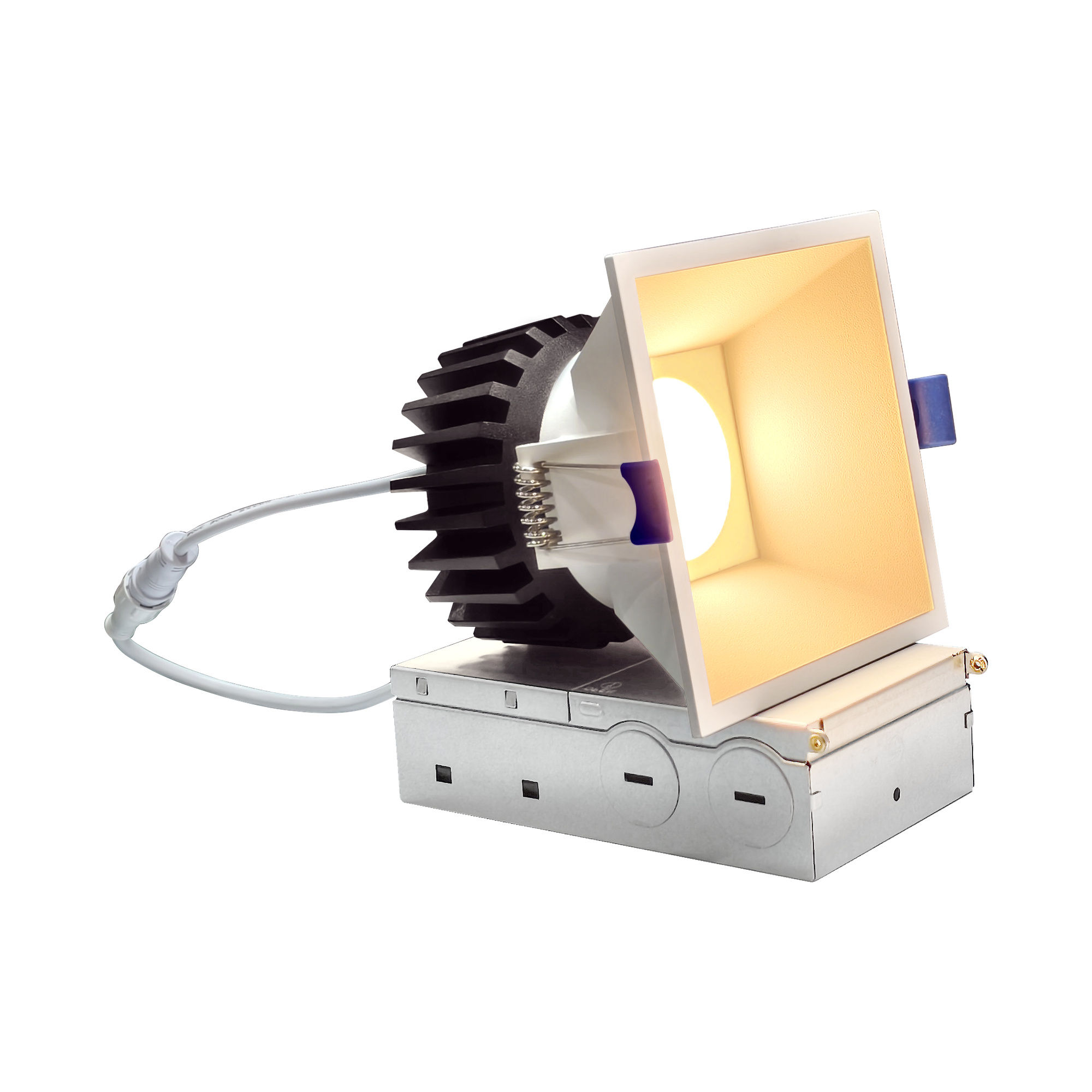

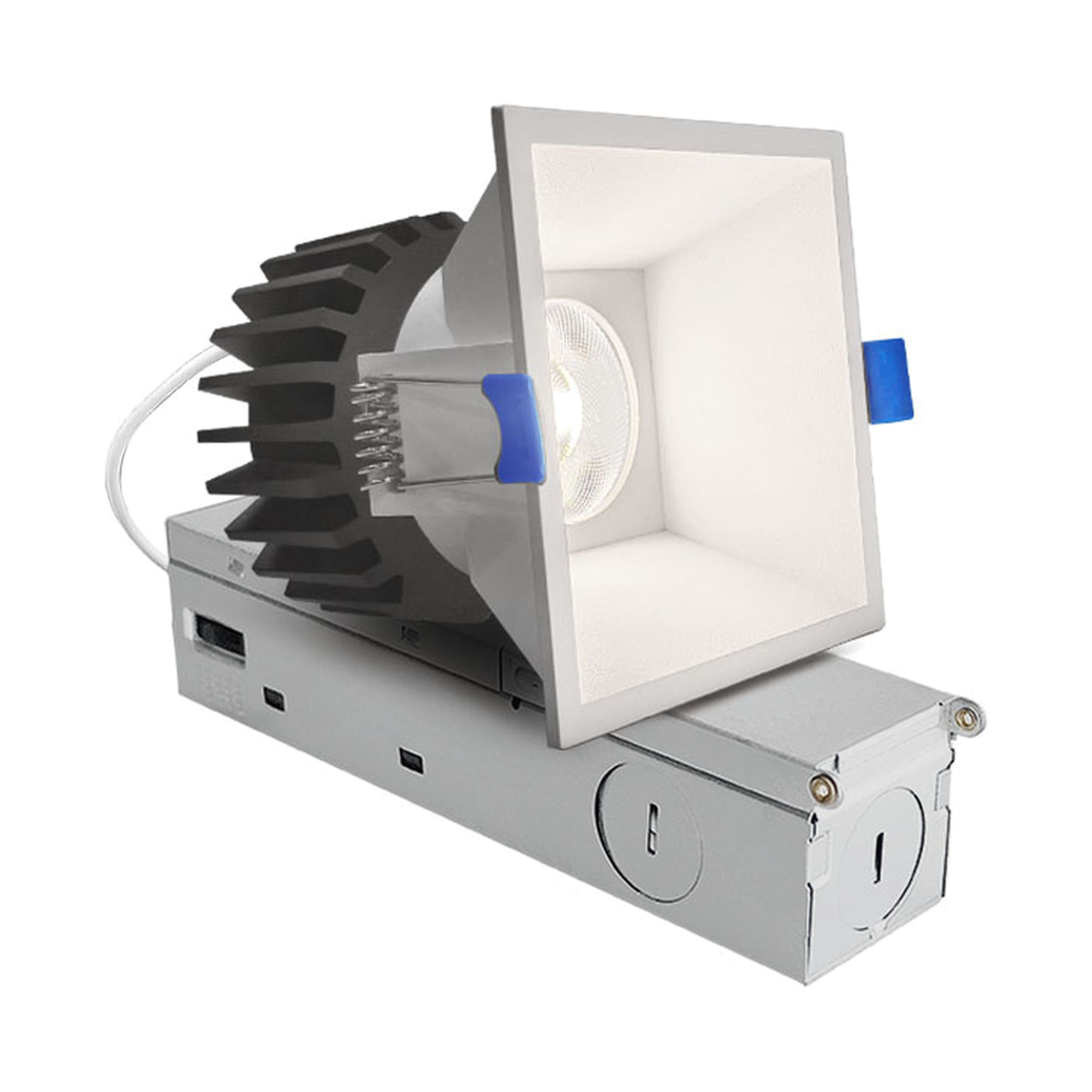

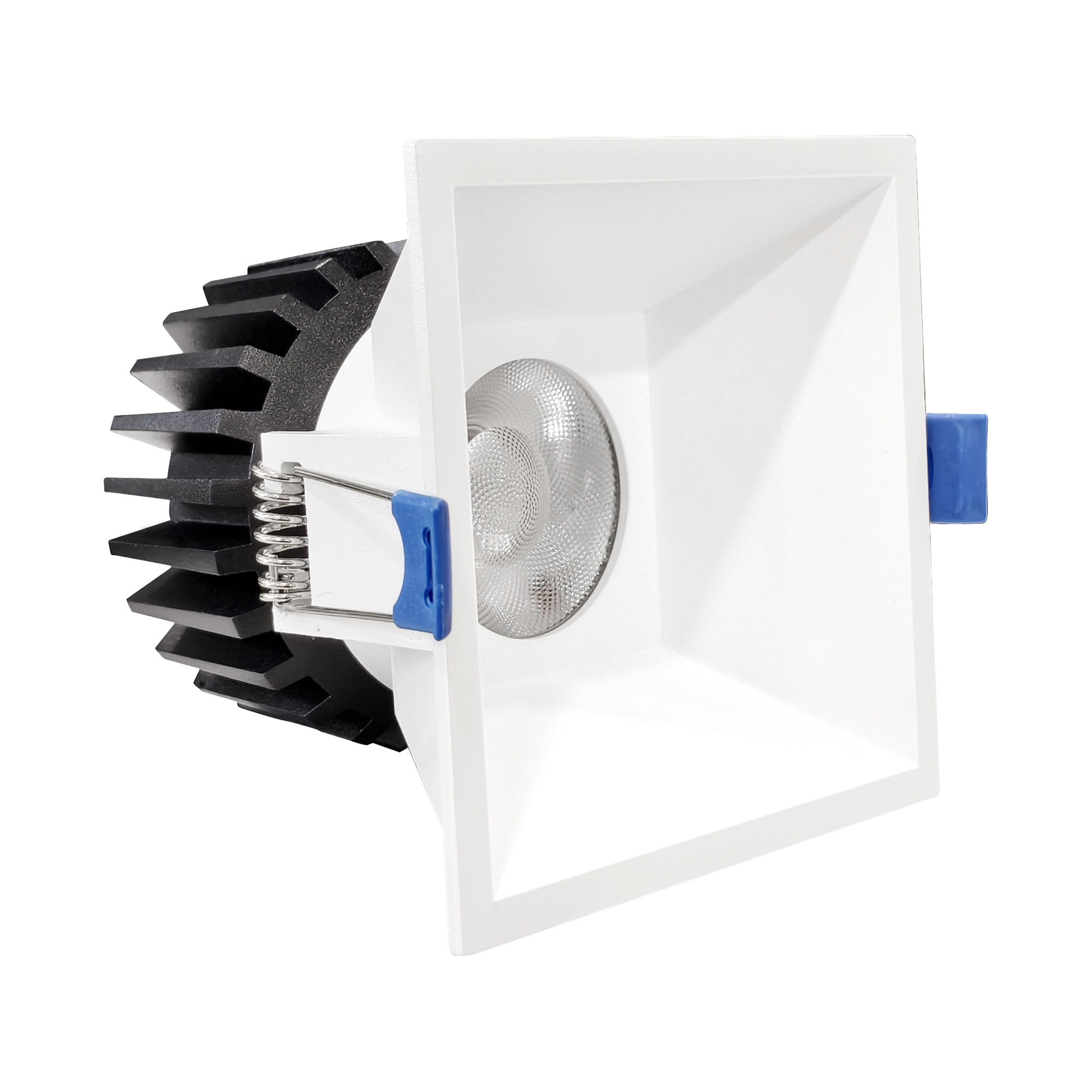

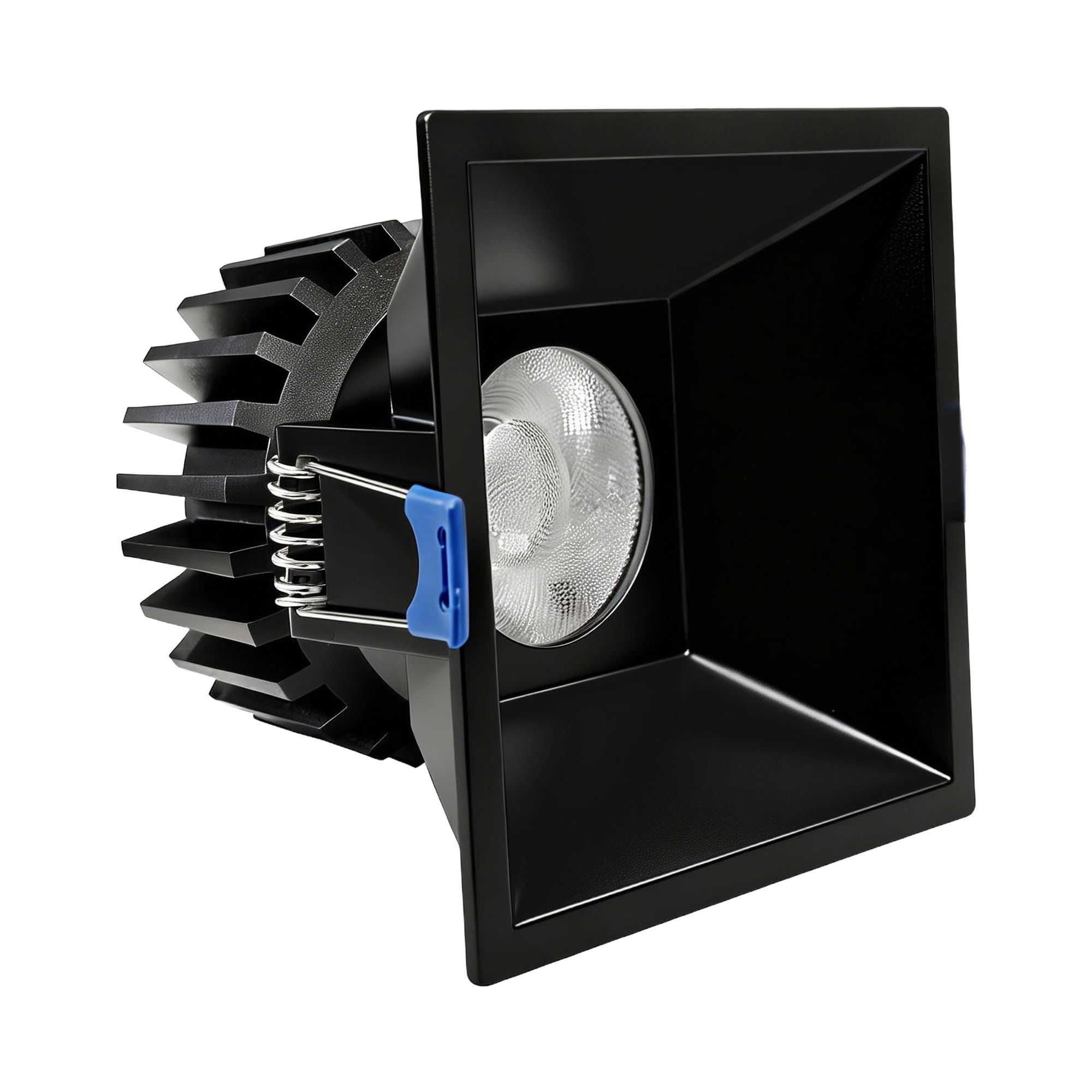

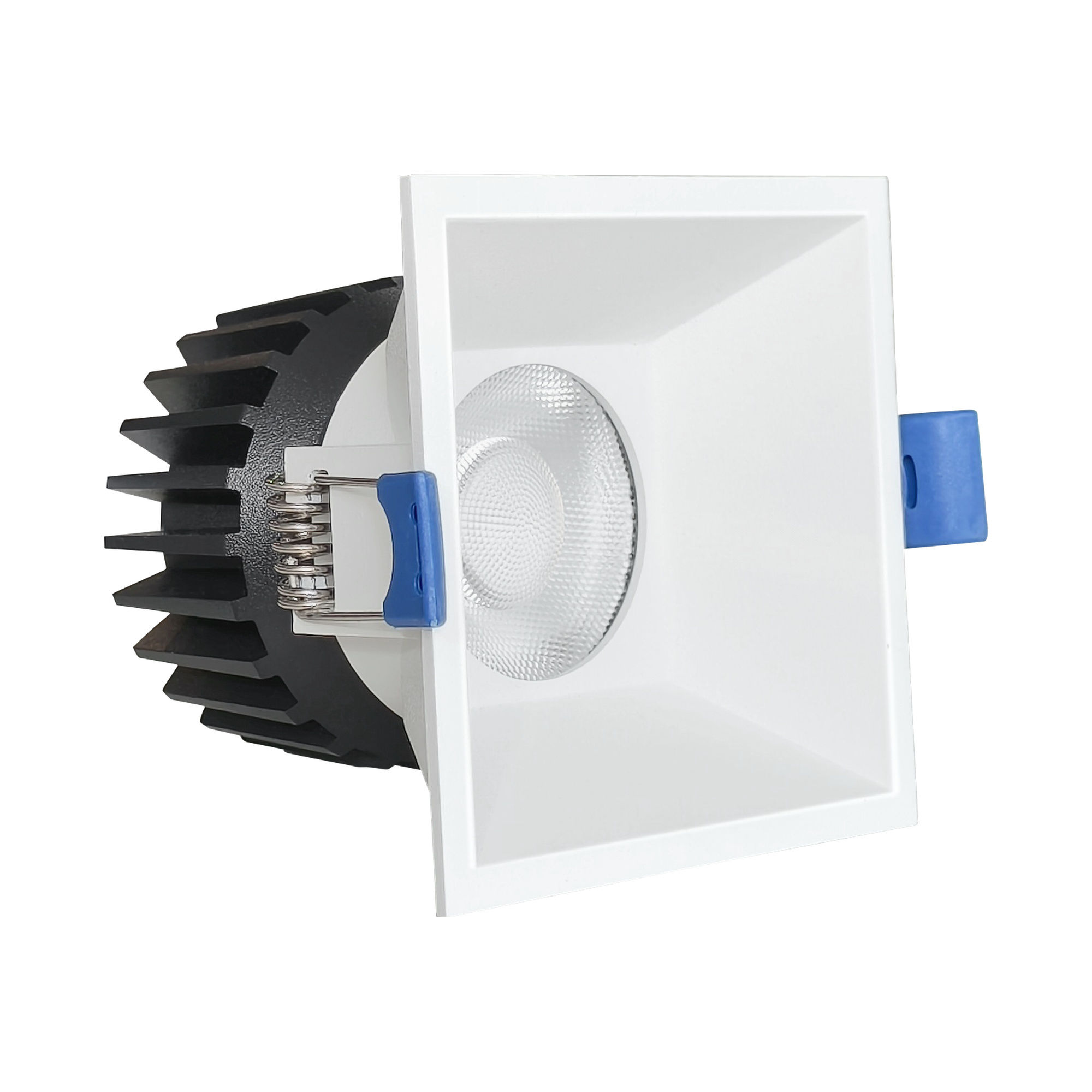

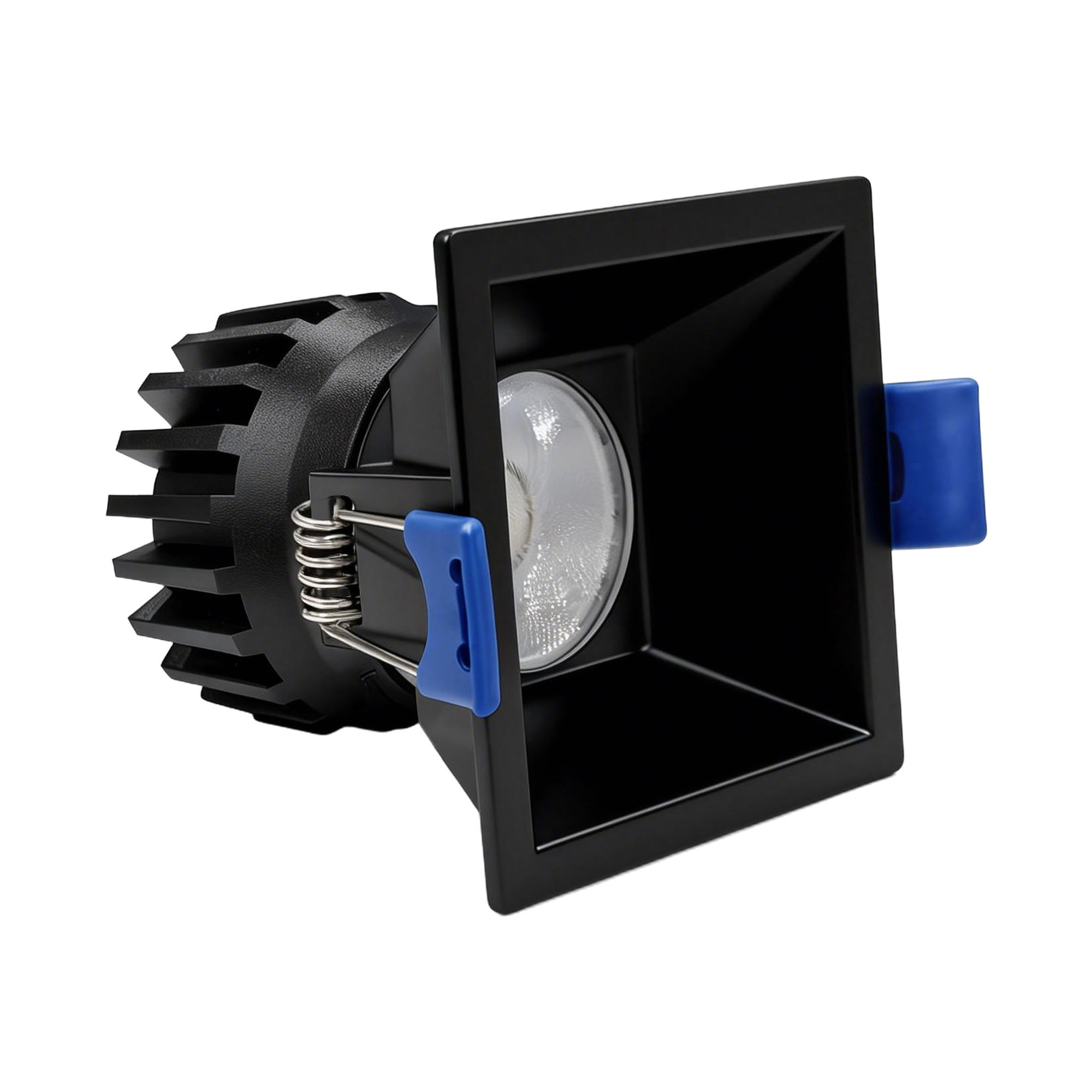

SDLT-SERIES SDLT Series Square Hotel Spec Canless Thin-Trim Recessed Light
Technical Specs
- :: Input Voltage: 120V AC, 50/60Hz
- :: Wattage: 7W (1-inch), 12W (2-inch), 12W/15W/18W (3-inch and 4-inch)
- :: Dimming: Triac (5%-100%)
- :: Power Factor: >0.9
- :: Lumens: 550LM to 1476LM depending on model
- :: Efficacy: up to 82 LM/W
- :: Color Temperature: 2700K/3000K/3500K/4000K/5000K selectable
- :: CRI: >90
- :: Beam Angle: 36°
- :: Trim: Ultra-thin trim (hotel-style appearance)
- :: Mounting: Spring clips for recessed installation
- :: Driver: Remote driver in junction box with quick connector
- :: Switches: CCT and Wattage selectable on side
- :: Rating: IC Rated, Airtight
- :: Location Rating: Damp Location Rated
- :: Certifications: cETLus Listed
Applications
- :: The SDLT Series brings a sleek, ultra-thin architectural trim to upscale hospitality environments, hotels, modern interiors, and high-end residential spaces. Its canless design drops directly into the ceiling without a housing can, delivering a clean, minimalist finish with smooth, low-glare illumination and the flexibility of selectable color temperature across every aperture size, plus selectable output on the larger models.
- Variations
- Q & A (0)
| Product Name | Housing Finish | Lumens | Color Temp | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|---|---|---|
| White | 550LM | 2700K/3000K/3500K/4000K/5000K | 7W | 120V |      | |||
| Black | 550LM | 2700K/3000K/3500K/4000K/5000K | 7W | 120V | | |||
| White | 900LM | 2700K/3000K/3500K/4000K/5000K | 12W | 120V | | |||
| Black | 900LM | 2700K/3000K/3500K/4000K/5000K | 12W | 120V | | |||
| White | 984LM/1230LM/1476LM | 2700K/3000K/3500K/4000K/5000K | 12W/15W/18W | 120V |  | |||
| Black | 984LM/1230LM/1476LM | 2700K/3000K/3500K/4000K/5000K | 12W/15W/18W | 120V | | |||
| White | 984LM/1230LM/1476LM | 2700K/3000K/3500K/4000K/5000K | 12W/15W/18W | 120V | | |||
| Black | 984LM/1230LM/1476LM | 2700K/3000K/3500K/4000K/5000K | 12W/15W/18W | 120V | | |||
 SSL-346-RI-13  SPEC | ||||||||
 SSL-346-RI SPEC | New Construction Recessed Mounting Plate with Hanger Bars, 6-inch Hole |
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 SSL4-RI SPEC INST | 4” Square Rough-in Plate, 26” Long | ||
 ELB-0895 SPEC | |||
SSL-346-RI-13 SPEC | |||
SSL-346-RI SPEC | New Construction Recessed Mounting Plate with Hanger Bars, 6-inch Hole |
