SPEC SHEET

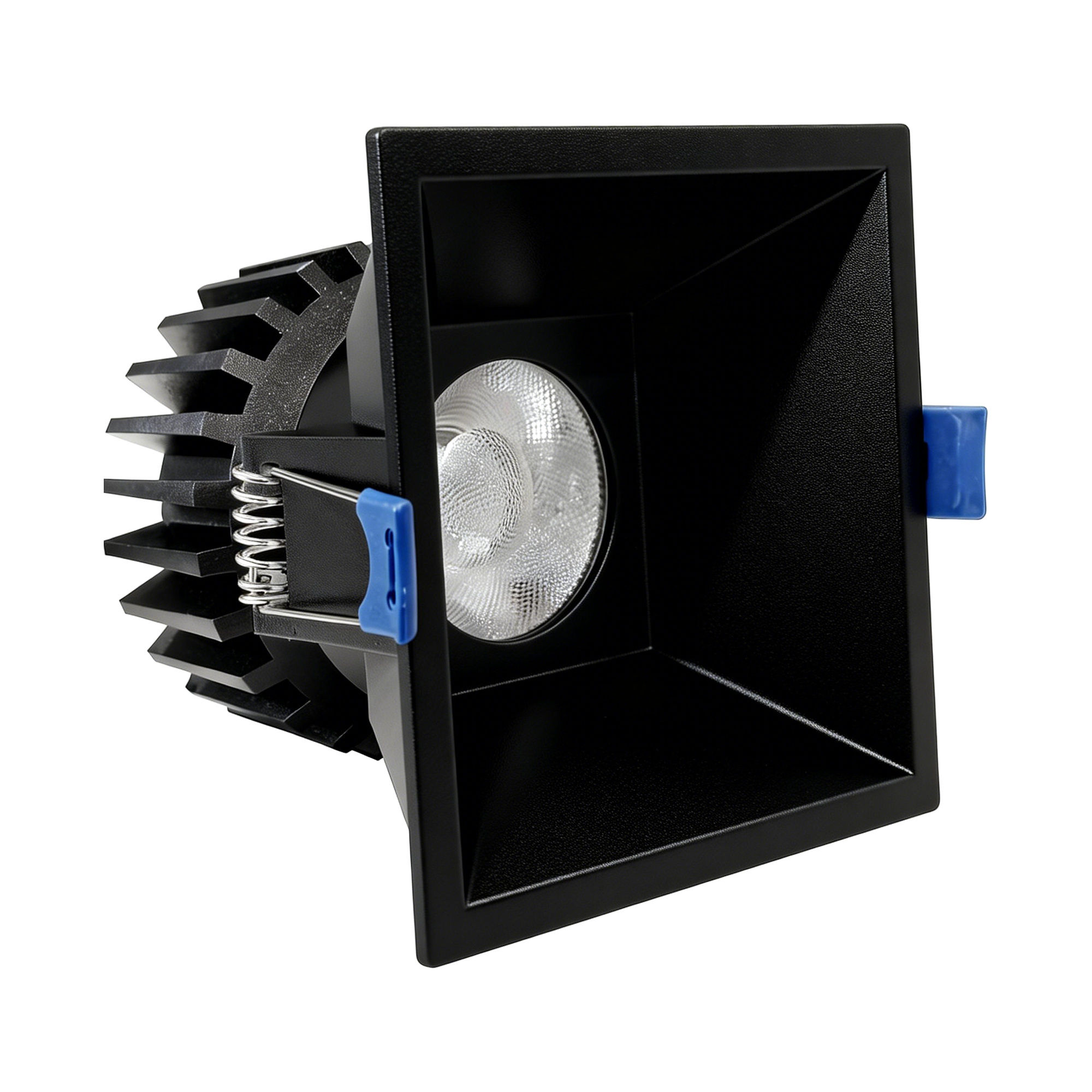

SDLT4S-ST-MCTP5-BK Black 4-inch 12W/15W/18W Square Hotel Spec Canless Thin-Trim Recessed Light
Technical Specs
- :: Input Voltage: 120V AC, 50/60Hz
- :: Wattage: 12W/15W/18W selectable
- :: Dimming: Triac (5%-100%)
- :: Power Factor: >0.9
- :: Lumens: 984LM (12W) / 1230LM (15W) / 1476LM (18W)
- :: Efficacy: 82 LM/W
- :: Color Temperature: 2700K/3000K/3500K/4000K/5000K selectable
- :: CRI: >90
- :: Beam Angle: 36°
- :: Trim: Ultra-thin trim (hotel-style appearance)
- :: Shape: Square
- :: Cutout: Ø4.25-inch
- :: Fixture Dimensions: 4.65-inch (D) x 3.15-inch (W) x 3.54-inch (H)
- :: Junction Box Dimensions: 2.76-inch (D) x 4.9-inch (W) x 1.38-inch (H)
- :: Junction Box: 4 x 1/2-inch knockouts (2 per side)
- :: Mounting: Spring clips for recessed installation
- :: Driver: Remote driver in junction box with quick connector
- :: Switches: CCT and Wattage selectable on side
- :: Rating: IC Rated, Airtight
- :: Location Rating: Damp Location Rated
- :: Certifications: cETLus Listed
Applications
- :: The Black 4-inch SDLT recessed light pairs high-performance output with a clean, ultra-thin trim, making it a strong fit for commercial and residential applications as well as hospitality spaces. Its canless design installs directly into the ceiling for a smooth, architectural finish with selectable power and color temperature. This Black-finish version recedes into darker or accent ceilings for a subtle, high-end look, differing from the White-finish SDLT4S-ST-MCTP5-WH, which offers a brighter trim that blends into light ceilings.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 SSL4-RI SPEC INST | 4” Square Rough-in Plate, 26” Long | ||
 ELB-0895 SPEC | |||
 SSL-346-RI-13 SPEC | |||
 SSL-346-RI SPEC | New Construction Recessed Mounting Plate with Hanger Bars, 6-inch Hole |
