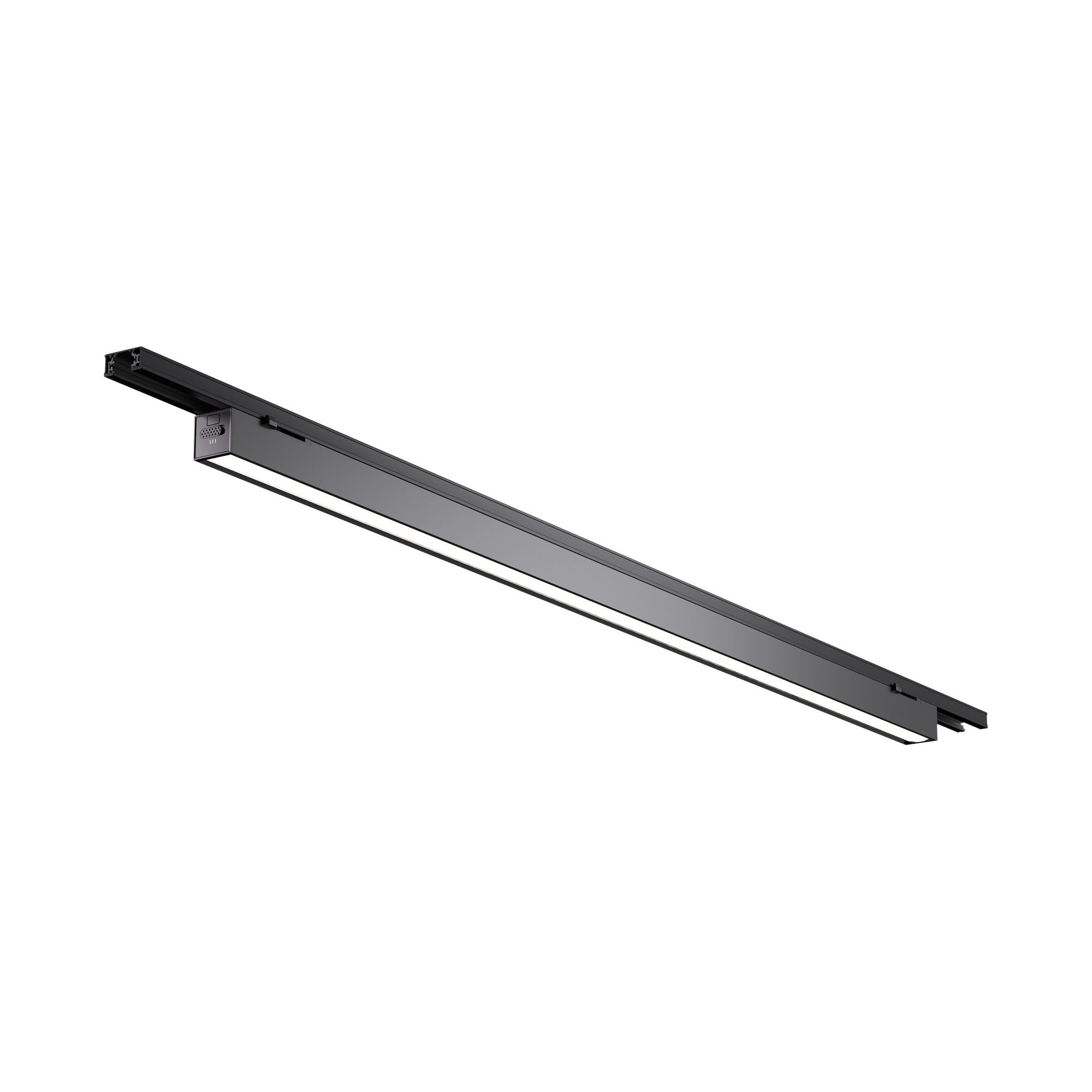

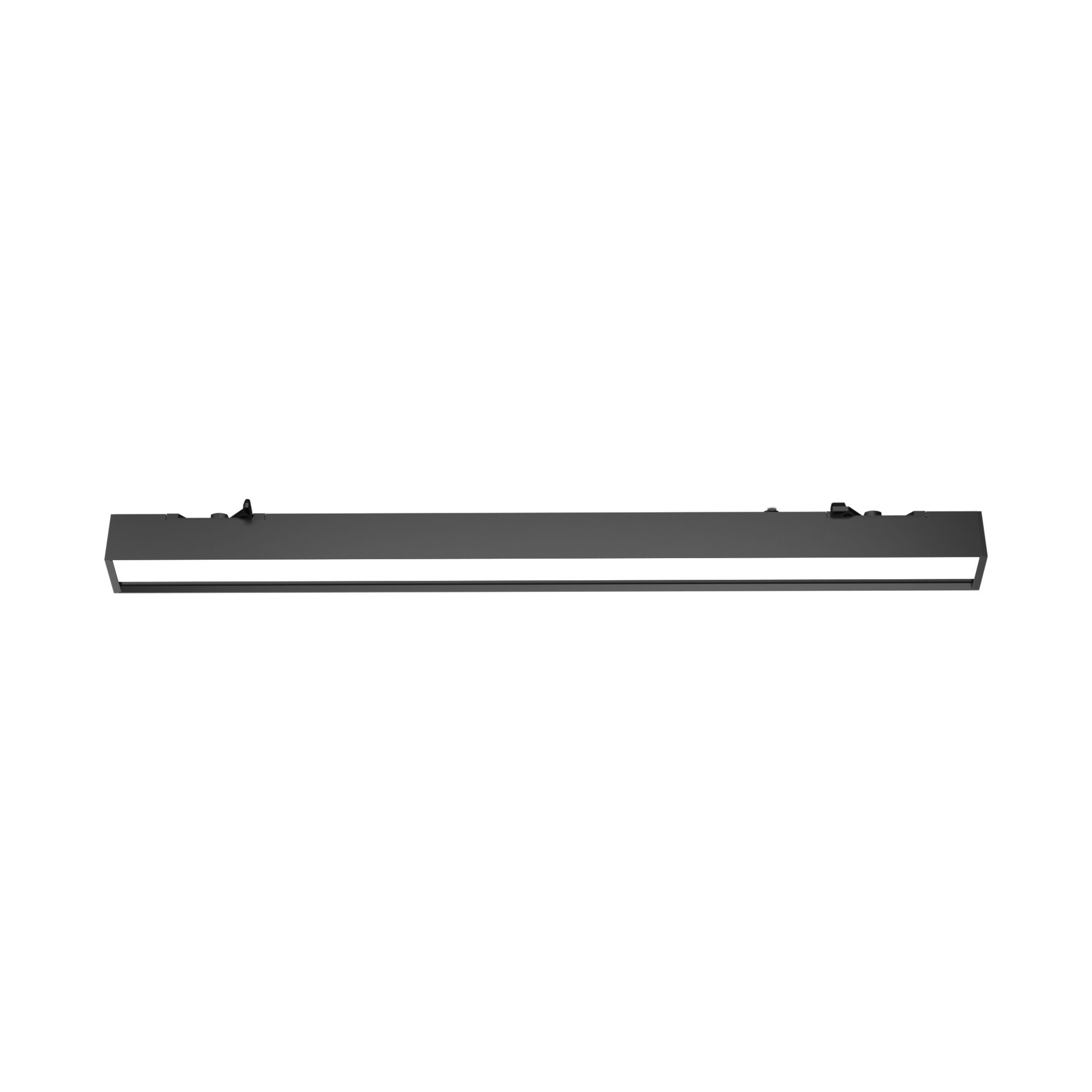

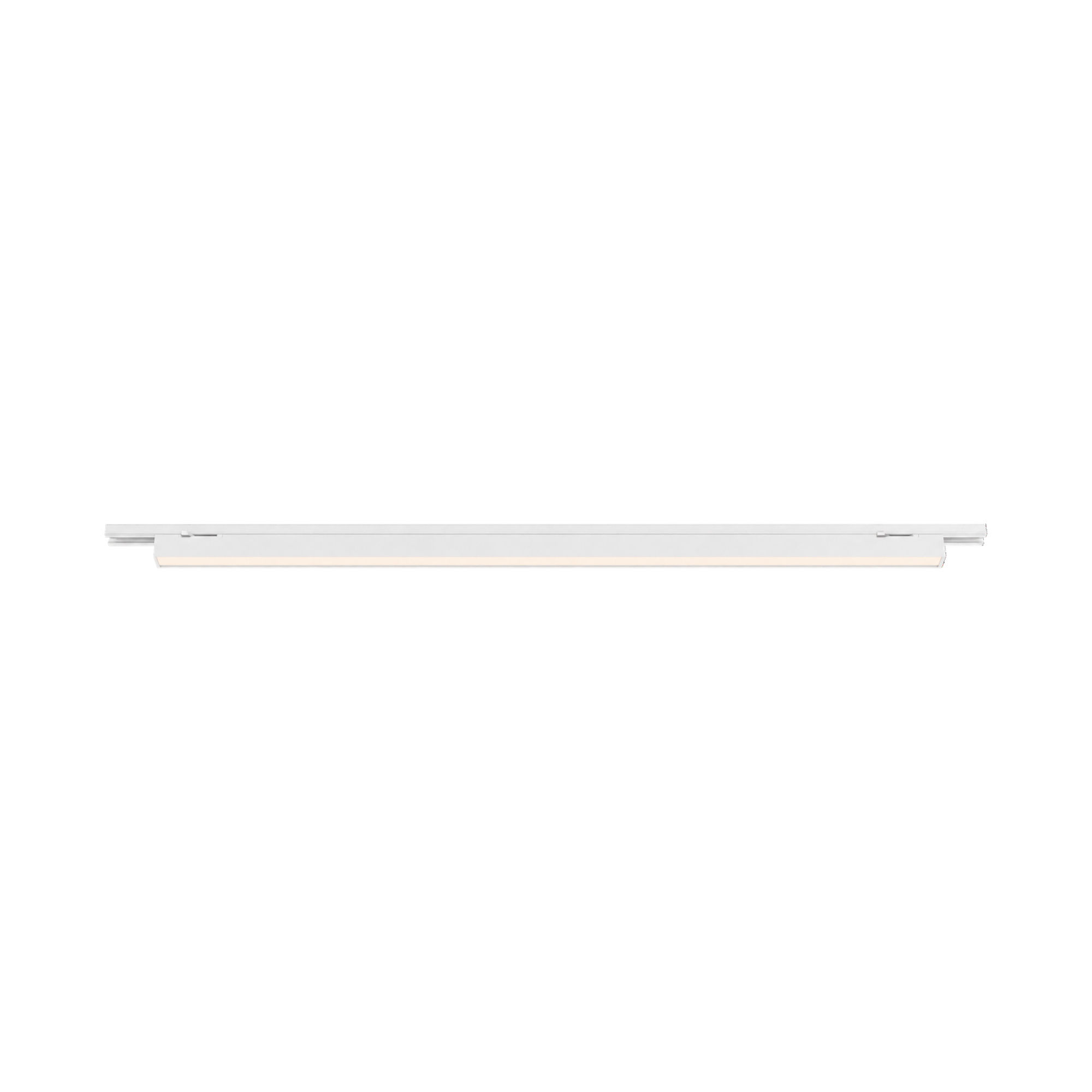

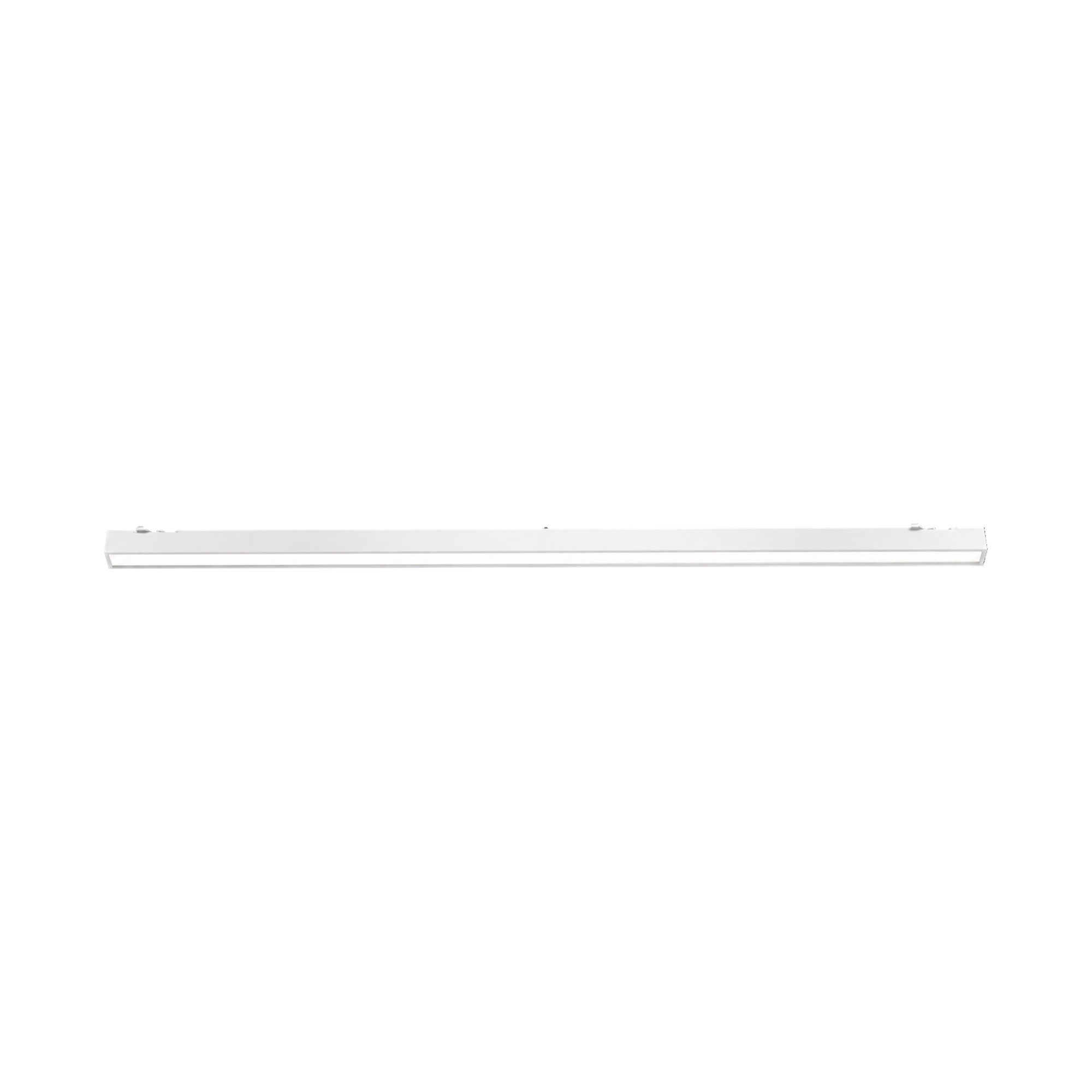

TRLF-SERIES TRLF Series LED Linear Track Light, Field-Changeable Lens, Power & CCT Selectable
Technical Specs
- :: Input Voltage: 120VAC, 60Hz
- :: Wattage: 2 ft: 10W / 15W / 20W; 4 ft: 30W / 35W / 40W, field selectable
- :: Power Factor: >0.92 (2 ft), >0.95 (4 ft)
- :: Dimming: TRIAC / ELV to 1%
- :: Flicker: SVM <0.4, Pst LM <1
- :: Lumens: 1,400 LM to 5,300 LM
- :: Efficacy: Up to 140 LPW
- :: CCT: 3000K / 3500K / 4000K, field selectable
- :: CRI: 90, R9 50
- :: Beam: Field-changeable 70°, 90°, asymmetric, or double asymmetric lens
- :: Lens: High-transmission polycarbonate
- :: Track Compatibility: H-type Halo (3-wire 1-circuit, 4-wire 2-circuit); J-type Juno (2-wire 1-circuit, 3-wire 2-circuit) with optional conversion kit
- :: Installation: Tool-free; push-pin circuit selection; retractable cord with sliding adapter; ceiling track only
- :: Housing: White or Black, 1.50-inch profile width
- :: Dimensions: 2 ft: 22.56-inch L; 4 ft: 46.65-inch L; 1.89-inch W x 1.93-inch H
- :: IP / IK Rating: IP20, IK06
- :: Operating Temp: 14°F to 95°F
- :: Rated Life: 50,000 hours
- :: Certifications: ETL Listed
Applications
- :: The Westgate TRLF Series brings uniform linear lighting to existing track systems, making it ideal for retail stores, fashion boutiques, supermarkets, museums, hotels, restaurants, offices, classrooms, and conference rooms. Field-changeable lenses let one fixture deliver wide general lighting or directional wall and display wash, and 90 CRI with R9 50 renders merchandise, artwork, and finishes with rich, accurate color. It installs tool-free on H-type Halo track and converts to J-type Juno track with an optional kit, and its slim profile matches the track width for a clean, continuous look. Combine it with track spotlights on the same rail for layered ambient and accent lighting. Available in 2 ft and 4 ft lengths in White or Black.
- Variations
- Q & A (0)
| Product Name | Housing Finish | Lumens | Color Temp | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|---|---|---|
| White | 1,400 LM / 2,100 LM / 2,800 LM | 3000K / 3500K / 4000K | 10W / 15W / 20W | 120V |    | |||
| Black | 1,400 LM / 2,100 LM / 2,800 LM | 3000K / 3500K / 4000K | 10W / 15W / 20W | 120V | | |||
| White | 3,975 LM / 4,638 LM / 5,300 LM | 3000K / 3500K / 4000K | 30W / 35W / 40W | 120V | | |||
| Black | 3,975 LM / 4,638 LM / 5,300 LM | 3000K / 3500K / 4000K | 30W / 35W / 40W | 120V | | |||
| J-Type Juno Track Conversion Kit for 2 ft TRLF Linear Track Light | ||||||||
| J-Type Juno Track Conversion Kit for 4 ft TRLF Linear Track Light | ||||||||
 TRLF-24-LENS-90D  SPEC | 90° Replacement Lens for 2 ft TRLF Linear Track Light | |||||||
| Asymmetric Replacement Lens for 2 ft TRLF Linear Track Light | ||||||||
| Double Asymmetric Replacement Lens for 2 ft TRLF Linear Track Light | ||||||||
TRLF-48-LENS-90D SPEC | 90° Replacement Lens for 4 ft TRLF Linear Track Light | |||||||
| Asymmetric Replacement Lens for 4 ft TRLF Linear Track Light | ||||||||
| Double Asymmetric Replacement Lens for 4 ft TRLF Linear Track Light |
ACCESSORIES
| Product Name | Housing Finish | Description | ||
|---|---|---|---|---|
| J-Type Juno Track Conversion Kit for 2 ft TRLF Linear Track Light | ||||
| J-Type Juno Track Conversion Kit for 4 ft TRLF Linear Track Light | ||||
TRLF-24-LENS-90D SPEC | 90° Replacement Lens for 2 ft TRLF Linear Track Light | |||
| Asymmetric Replacement Lens for 2 ft TRLF Linear Track Light | ||||
| Double Asymmetric Replacement Lens for 2 ft TRLF Linear Track Light | ||||
 TR-FLEXC-WH SPEC | White | White Flexible Connector | ||
TRLF-48-LENS-90D SPEC | 90° Replacement Lens for 4 ft TRLF Linear Track Light | |||
| Asymmetric Replacement Lens for 4 ft TRLF Linear Track Light | ||||
 TR-EC-BK SPEC | Black | 3-Wire Track End Cap | ||
TR-EC-WH SPEC | White | 3-Wire Track End Cap | ||
| Double Asymmetric Replacement Lens for 4 ft TRLF Linear Track Light | ||||
 TR-FLEXC-BK SPEC | Black | 3-Wire Track Flex Connector | ||
 TR-LC-BK SPEC | Black | 3-Wire Track L Connector | ||
 TR-LC-WH SPEC | White | 3-Wire Track L Connector | ||
 TR-LE-BK SPEC | Black | 3-Wire Track Live End Connector | ||
 TR-XC-BK SPEC | Black | 3-Wire Track X Connector | ||
 TR-XC-WH SPEC | White | 3-Wire Track X Connector | ||
 TR-MC-BK SPEC | Black | 3-Wire Track Mini Connector | ||
 TR-MC-WH SPEC | White | 3-Wire Track Mini Connector | ||
 TR-MONC-BK SPEC | Black | 3-Wire Track Mini Connector | ||
 TR-MONC-WH SPEC | White | 3-Wire Track Mono Canopy | ||
 TR-SC-BK SPEC | Black | 3-Wire Track Straight Connector | ||
 TR-SC-WH SPEC | White | 3-Wire Track Straight Connector | ||
 TR-TC-BK SPEC | Black | 3-Wire Track T Connector | ||
 TR-TC-WH SPEC | White | 3-Wire Track T Connector | ||
 TR-FC-BK SPEC | Black | 3-Wire Track Floating Canopy | ||
 TR-FC-WH SPEC | White | 3-Wire Track Floating Canopy | ||
 TR-2FT-BK SPEC | Black | 2Ft 3-Wire Track | ||
TR-2FT-WH SPEC | White | 2Ft 3-Wire Track | ||
TR-4FT-BK SPEC | Black | 4Ft 3-Wire Track | ||
TR-4FT-WH SPEC | White | 4Ft 3-Wire Track | ||
TR-6FT-BK SPEC | Black | 6Ft 3-Wire Track | ||
TR-6FT-WH SPEC | White | 6Ft 3-Wire Track | ||
TR-8FT-BK SPEC | Black | 8Ft 3-Wire Track | ||
TR-8FT-WH SPEC | White | 8Ft 3-Wire Track | ||
 TR-JBEF-BK SPEC | Black | 3-Wire Track J-Box End Feed Kit | ||
 TR-JBEF-WH SPEC | White | 3-Wire Track J-Box End Feed Kit | ||
 TR-CCON-BK SPEC | Black | 3-Wire Track Conduit Connector | ||
 TR-CCON-WH SPEC | White | 3-Wire Track Conduit Connector | ||
 TR-EXTCON-BK SPEC | Black | 3-Wire Track To Track Extension Connector | ||
 TR-EXTCON-WH SPEC | White | 3-Wire Track To Track Extension Connector | ||
TR-LE-WH SPEC | White | 3-Wire Track Live End |
