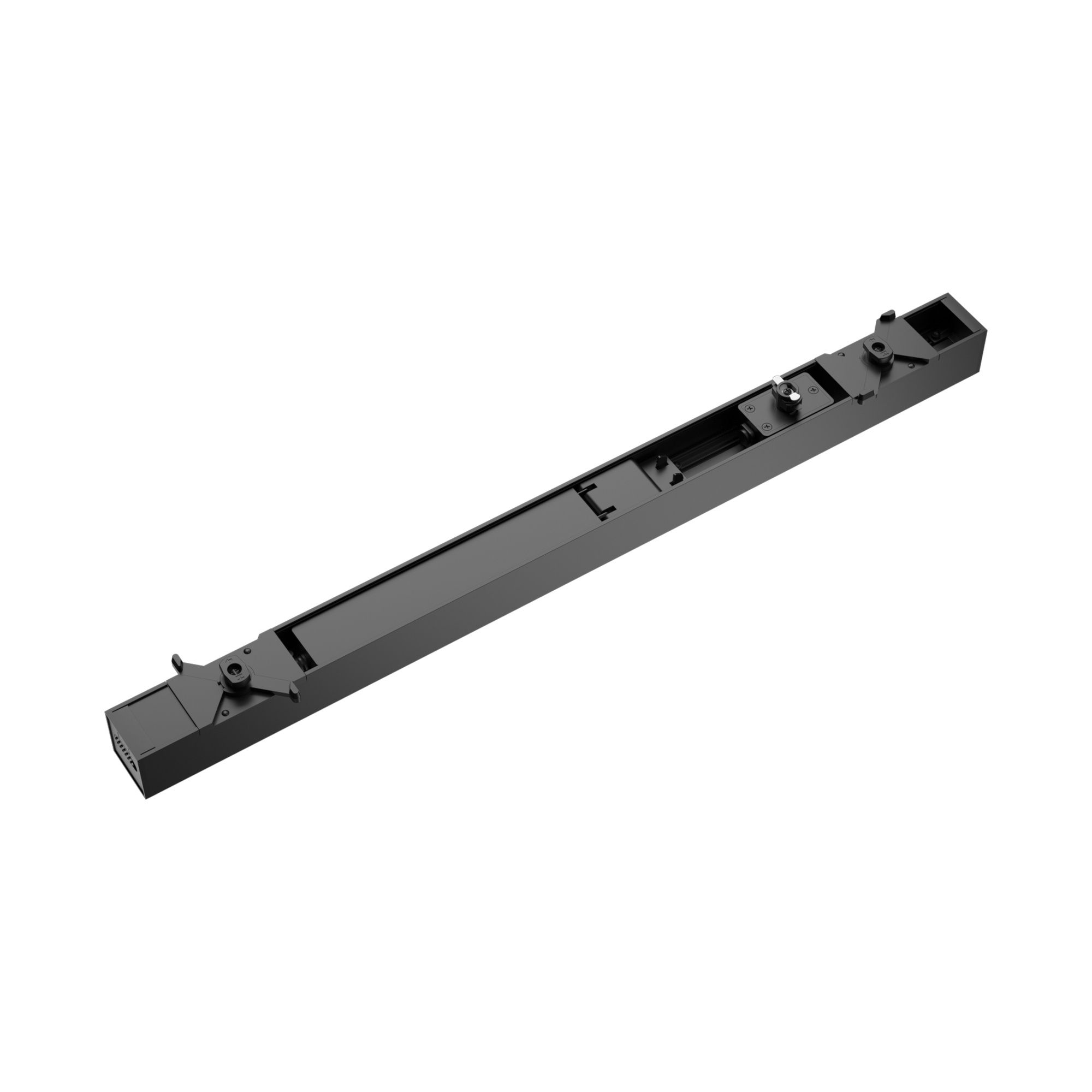

TRLF-24-20W-MCTP-BK Black 2 ft 10W-20W LED Linear Track Light, Field-Changeable Lens
Technical Specs
- :: Input Voltage: 120VAC, 60Hz
- :: Wattage: 10W / 15W / 20W, field selectable
- :: Power Factor / THD: >0.92 / <10%
- :: Dimming: TRIAC / ELV to 1%
- :: Flicker: SVM <0.4, Pst LM <1
- :: Lumens: 1,400 / 2,100 / 2,800 LM
- :: Efficacy: 140 LPW
- :: CCT: 3000K / 3500K / 4000K, field selectable
- :: CRI: 90, R9 50
- :: Beam: Field-changeable 70°, 90°, asymmetric, or double asymmetric lens
- :: Lens: High-transmission polycarbonate
- :: Track Compatibility: H-type Halo (3-wire 1-circuit, 4-wire 2-circuit); J-type Juno with TRLF-24-J-TYPE-CK
- :: Installation: Tool-free; push-pin circuit selection; retractable cord; ceiling track only; hidden track needs 3.94-inch min opening, 1.77-inch max recess
- :: Housing: Black finish, 1.50-inch profile width
- :: Dimensions: 22.56-inch L x 1.89-inch W x 1.93-inch H
- :: IP / IK Rating: IP20, IK06
- :: Operating Temp: 14°F to 95°F
- :: Rated Life: 50,000 hours
- :: Certifications: ETL Listed
Applications
- :: The Westgate TRLF 2 ft linear track light brings uniform general lighting to existing track systems in retail stores, fashion boutiques, museums, hotels, restaurants, offices, classrooms, and conference rooms. Field-changeable lenses let one fixture deliver wide general lighting or directional wall and display wash, and 90 CRI with R9 50 renders merchandise, artwork, and finishes with rich, accurate color. It installs tool-free on H-type Halo track and converts to J-type Juno track with an optional kit. As the shorter length in the series, it is ideal for smaller displays, alcoves, and shorter track runs, while the 4 ft model is available for longer spans. This model features a sleek Black finish that suits exposed and dark ceilings, and the same fixture is also available in White.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Housing Finish | ||
|---|---|---|---|---|
| J-Type Juno Track Conversion Kit for 2 ft TRLF Linear Track Light | ||||
 TRLF-24-LENS-90D SPEC | 90° Replacement Lens for 2 ft TRLF Linear Track Light | |||
| Asymmetric Replacement Lens for 2 ft TRLF Linear Track Light | ||||
| Double Asymmetric Replacement Lens for 2 ft TRLF Linear Track Light | ||||
 TR-EC-BK SPEC | 3-Wire Track End Cap | Black | ||
 TR-FLEXC-BK SPEC | 3-Wire Track Flex Connector | Black | ||
 TR-LC-BK SPEC | 3-Wire Track L Connector | Black | ||
 TR-LE-BK SPEC | 3-Wire Track Live End Connector | Black | ||
 TR-XC-BK SPEC | 3-Wire Track X Connector | Black | ||
 TR-MC-BK SPEC | 3-Wire Track Mini Connector | Black | ||
 TR-MONC-BK SPEC | 3-Wire Track Mini Connector | Black | ||
 TR-SC-BK SPEC | 3-Wire Track Straight Connector | Black | ||
 TR-TC-BK SPEC | 3-Wire Track T Connector | Black | ||
 TR-FC-BK SPEC | 3-Wire Track Floating Canopy | Black | ||
 TR-2FT-BK SPEC | 2Ft 3-Wire Track | Black | ||
TR-4FT-BK SPEC | 4Ft 3-Wire Track | Black | ||
TR-6FT-BK SPEC | 6Ft 3-Wire Track | Black | ||
TR-8FT-BK SPEC | 8Ft 3-Wire Track | Black | ||
 TR-JBEF-BK SPEC | 3-Wire Track J-Box End Feed Kit | Black | ||
 TR-CCON-BK SPEC | 3-Wire Track Conduit Connector | Black | ||
 TR-EXTCON-BK SPEC | 3-Wire Track To Track Extension Connector | Black |
