SPEC SHEET

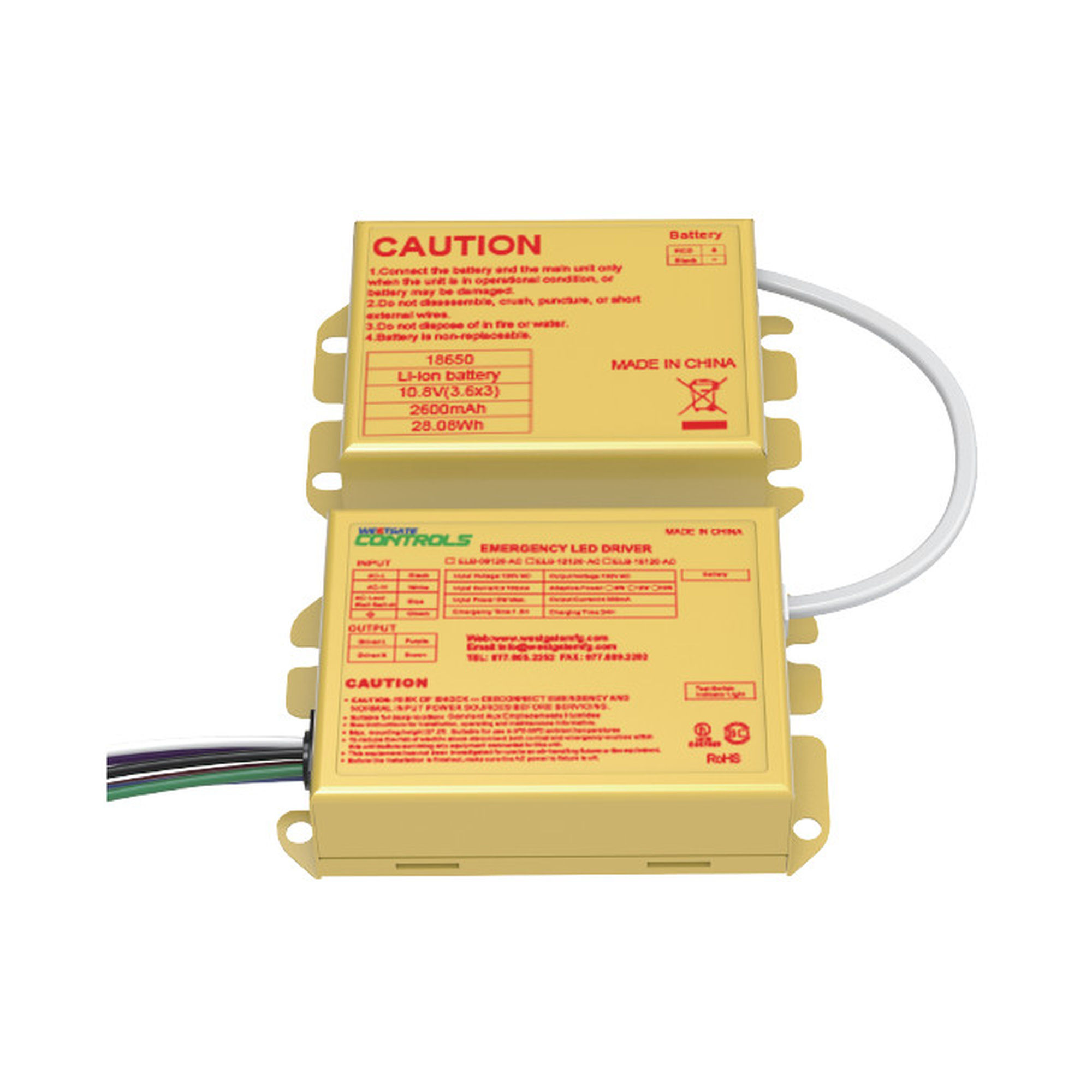

ELB-15120-AC 15W 120V AC Output Emergency LED Driver

:: Emergency Output Power: 15W Max
:: Input Voltage: 120V AC, 50/60Hz
:: Output Voltage: 120V AC
:: Input Current: 100mA Max
:: Input Power: ≤5W
:: Emergency Time: 90 minutes
:: Charging Time: 24 hours
:: Battery Type: Li-ion
:: Performance: Constant Power Output
:: Controls: 2-in-1 Test Switch and Charge Indicator Light
:: Case Dimensions: 3.53-inch x 2.36-inch x 0.89-inch (mounting center 3.23-inch)
:: Battery Case Dimensions: 3.45-inch x 2.27-inch x 0.85-inch (mounting center 3.18-inch)
:: Ambient Temperature: 5-degreeC to 50-degreeC (41-degreeF to 122-degreeF)
:: Location: Suitable for Dry and Damp Locations, Indoor
:: Compliance: Meets or exceeds NEC, IBC, and Life Safety Code emergency lighting requirements
:: Warranty: 5-Year
:: Certifications: UL Listed (E472988), UL924, CSA C22.2 No. 141, CEC / CA Title 20 Compliant, RoHS Compliant

:: This ELB model is the higher-output AC driver in the downlight group, keeping a 120V AC LED fixture running in emergency mode by wiring straight to its AC input. Rated for up to 15W of emergency output, it covers slightly larger disk lights, DOB downlights, and slim downlights than the 12W version, as long as the fixture's normal load stays within its emergency power. Westgate builds it with a sealed Li-ion battery, a 2-in-1 test switch and charge indicator, and dry/damp location rating for fast field or factory install.
