SPEC SHEET

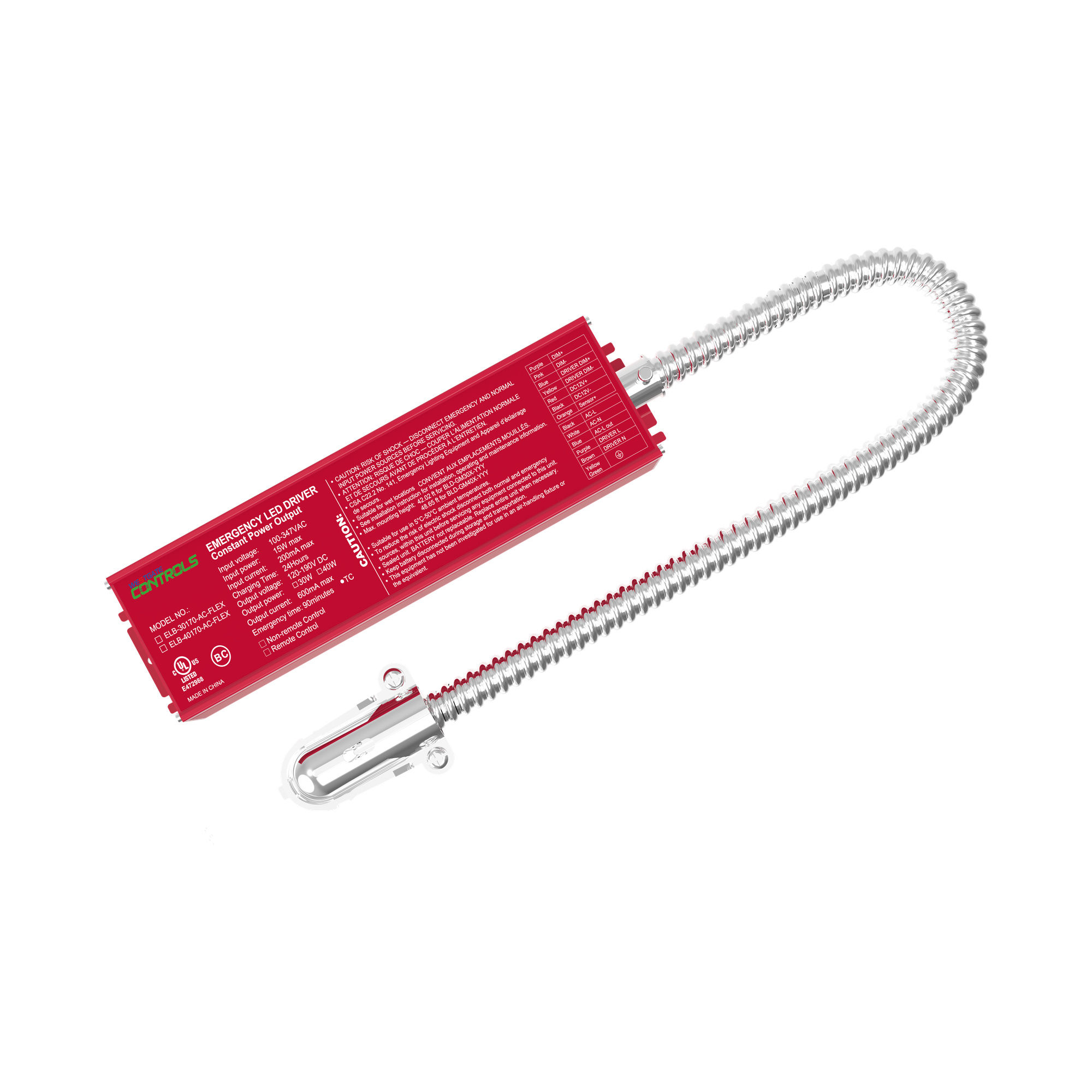

ELB-40170-AC-FLEX 40W 170VDC Constant-Power Emergency LED Driver with Flex Conduit

:: Emergency Output Power: 40W
:: Output Voltage: 170VDC
:: Output Current: ≤460mA
:: Input Voltage: 100-347V AC, 50/60Hz
:: Input Power: 15W Max
:: Input Current: 200mA Max
:: Emergency Discharge Time: 90 minutes
:: Recharge Time: 24 hours
:: Battery Type: High-Temperature Long-Life Li-ion
:: Performance: Constant Power Output
:: Testing: Self-Test with 2-in-1 Test Switch and Charge Indicator Light
:: Dimming Integration: 0-10V (DIM+ / DIM- to fixture driver)
:: Driver Dimensions: 11.34-inch x 3.04-inch x 1.83-inch (288mm x 77.3mm x 46.5mm)
:: Mounting Center: 10.69-inch (271.5mm)
:: Ambient Temperature: 5-degreeC to 50-degreeC (41-degreeF to 122-degreeF)
:: Location: Suitable for Dry and Damp Locations
:: Warranty: 5-Year Limited
:: Certifications: UL Listed (E497969), UL924, CSA C22.2 No. 141, CA Title 20 Certified, RoHS Compliant

:: This ELB FLEX model drives higher-wattage LED fixtures in emergency mode, supplying up to 40W of constant power to the DC LED load so light output holds steady across the full 90-minute runtime. Unlike the AC-output ELB downlight drivers, it connects to the fixture's LED driver and 0-10V dimming wires, and its wide 100-347V AC input suits commercial and industrial installations. Westgate includes self-testing, a 2-in-1 test switch and charge indicator, and a flexible metal conduit whip for protected field or factory wiring.
