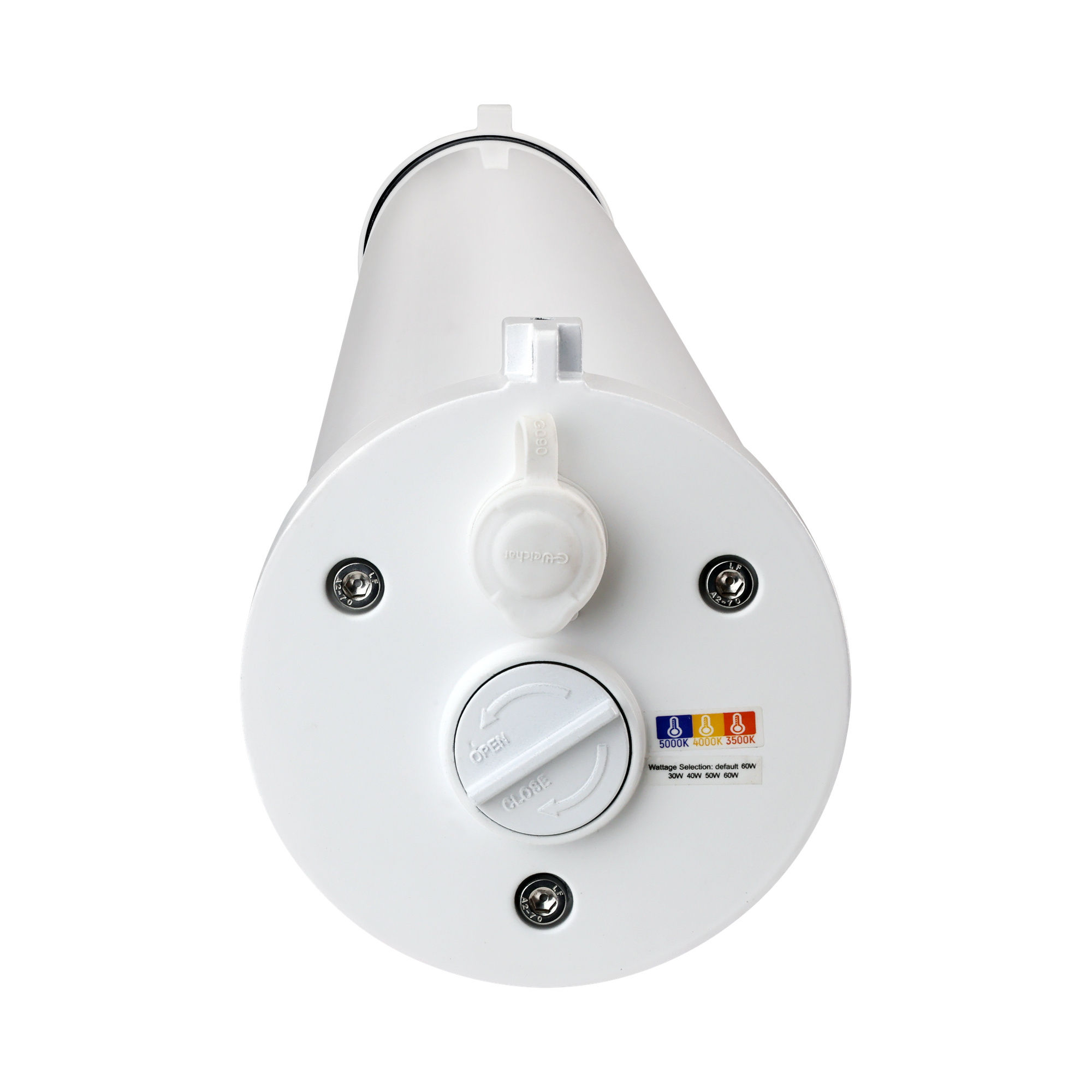

LVTT-4FT-30-60W-MCTP-SR 30-60W 4FT Tube Vapor Tight Light Sensor-Ready
Technical Specs
- :: Wattage: 30W / 40W / 50W / 60W (Selectable)
- :: Input Voltage: 120~347VAC
- :: Dimmable Driver
- :: Pre-Installed DC Sensor Base
- :: Operating Temperature: -4°F to 122°F
- :: Total Lumens: 3,900 / 5,200 / 6,500 / 7,800 LM
- :: CCT Selectable: 3500K / 4000K / 5000K
- :: Efficacy: >130 LM/W
- :: CRI: >80
- :: Beam Angle: 360°
- :: Impact-Resistant Polycarbonate Lens
- :: Aluminum Alloy Die-Cast Endcaps
- :: Dust-Tight and Waterproof Construction
- :: IP Rating: IP69K
- :: Length: 4FT
- :: Dimensions: 47.6"L x 3.9" Dia.
- :: Technical Drawing: 4.13"(D) x 47.99"(W) x 4.13"(H)
- :: Surface Mount or Suspended Installation
- :: Mounting Bracket Included
- :: Hanging Cable Included
- :: Standard 6FT and 1FT Cable Included
- :: Certifications: UL Listed, NSF Approved, FCC
Applications
- :: The LVTT-4FT-30-60W-MCTP-SR is a mid-size tube vapor tight light built for high-performance lighting in wet, dusty, and harsh-duty environments. With up to 7,800 lumens and 360° distribution, it delivers reliable coverage across food and beverage processing facilities, refrigerated storage, car washes, parking structures, industrial warehouses, maintenance bays, utility rooms, and outdoor covered walkways. Selectable wattage and CCT keep the specification process simple, and the pre-installed DC sensor base is ready for occupancy or daylight control when paired with compatible sensor accessories. IP69K-rated and NSF approved for food industry applications.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 WEC-3PR-78-AJ-WH SPEC | PIR Sensor 1-Pin Audio Jack Contact 600W 40Ft 120-277V 0-10V Bi-Level & RC (Optional RC WEC-3RC) | ||
 LVTT-JUMP-6FT SPEC | LVTT Jumper Cable With Connectors On Both Ends 6FT | ||
LVTT-JUMP-12FT SPEC | LVTT Jumper Cable With Connectors On Both Ends 12FT | ||
LVTT-PTAIL-6FT SPEC | LVTT Pigtail Power Cable With Connector On One End 6FT | ||
LVTT-PTAIL-12FT SPEC | LVTT Pigtail Power Cable With Connector On One End 12FT | ||
 LVTT-SMK SPEC | LVTT Surface-Mounting Kit With Two Brackets | ||
 WEC-AJ-SA SPEC | Swivel Arm For 3.5Mm Plug-In 1-Pin Audio-Jack Sensors | ||
 SCL-GS220 SPEC | Heavy-Duty Adjustable 5/64” 20 Ft. Suspension Kit with Loop Gripper & Hooks | ||
SCL-GS210 SPEC | Heavy-Duty Adjustable 5/64" 10ft. Suspension Kit with Loop Gripper & Hook |
