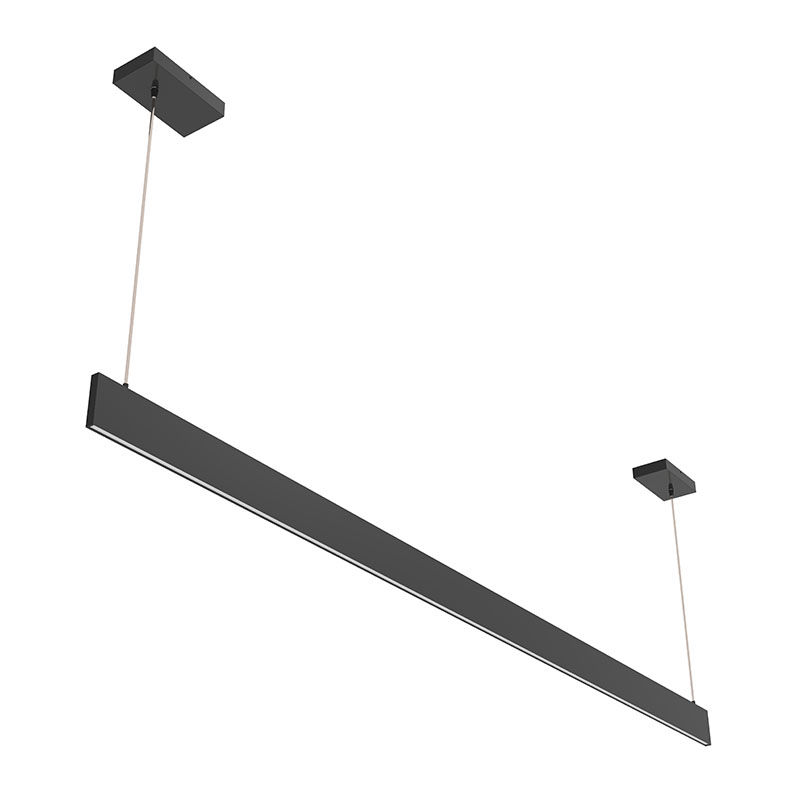

SCSL-UD-6FT-MCTP-BK Architectural Slim Up & Down Linear Light, 30W/34W/37W/40W, 2700K/3000K/3500K/4000K/5000K

:: Voltage: 120-277V AC 50/60Hz
:: Wattage: 30W/34W/37W/40W
:: Power Factor: >0.95
:: LPW: 90LM/W
:: Total Harmonic Distortion: ≤19 %
:: Aluminum Housing With Sandy Black Finish
:: Two 10FT Adjustable Suspension Cables with Canopies Included
:: Flat Frosted PC Lens
:: Operating Temperature: -22°F to +104°F
:: IP Rating: IP20, Suitable for damp location
:: 5-Year Warranty
:: Dimming: (Dual Function) Triac Dimmable at 120V &1-10V Dimming at 120-277V
:: Total Lumens: 3600LM Max.
:: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
:: MCTP: Multi Color Temperature and Power (Selectable,the switches are inside the Canopy)
:: Color Rendering Index: CRI ≥ 80
:: 50,000 Hours Rated Life
:: Beam Angle: 120°

:: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
:: It can be used in any indoor applications
