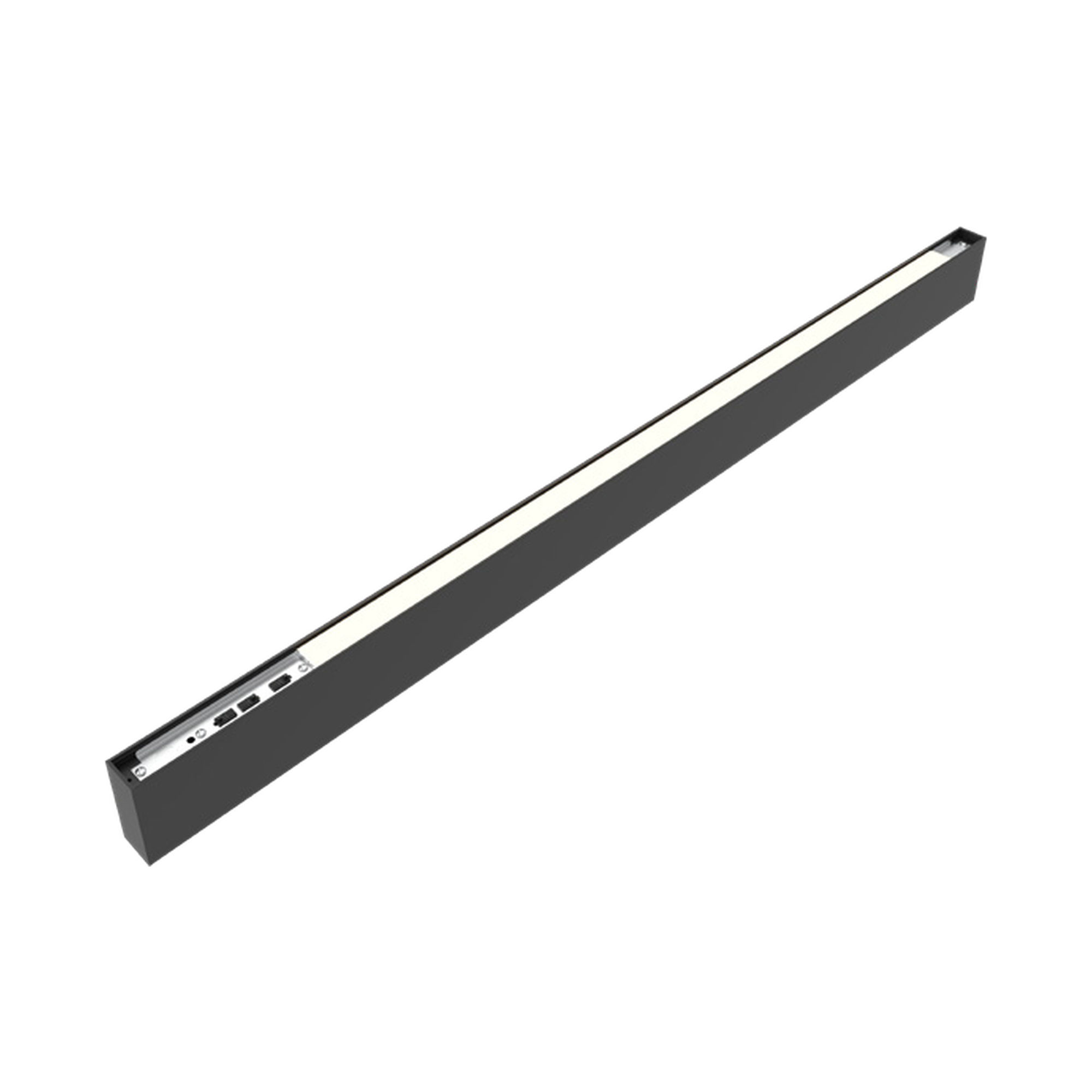

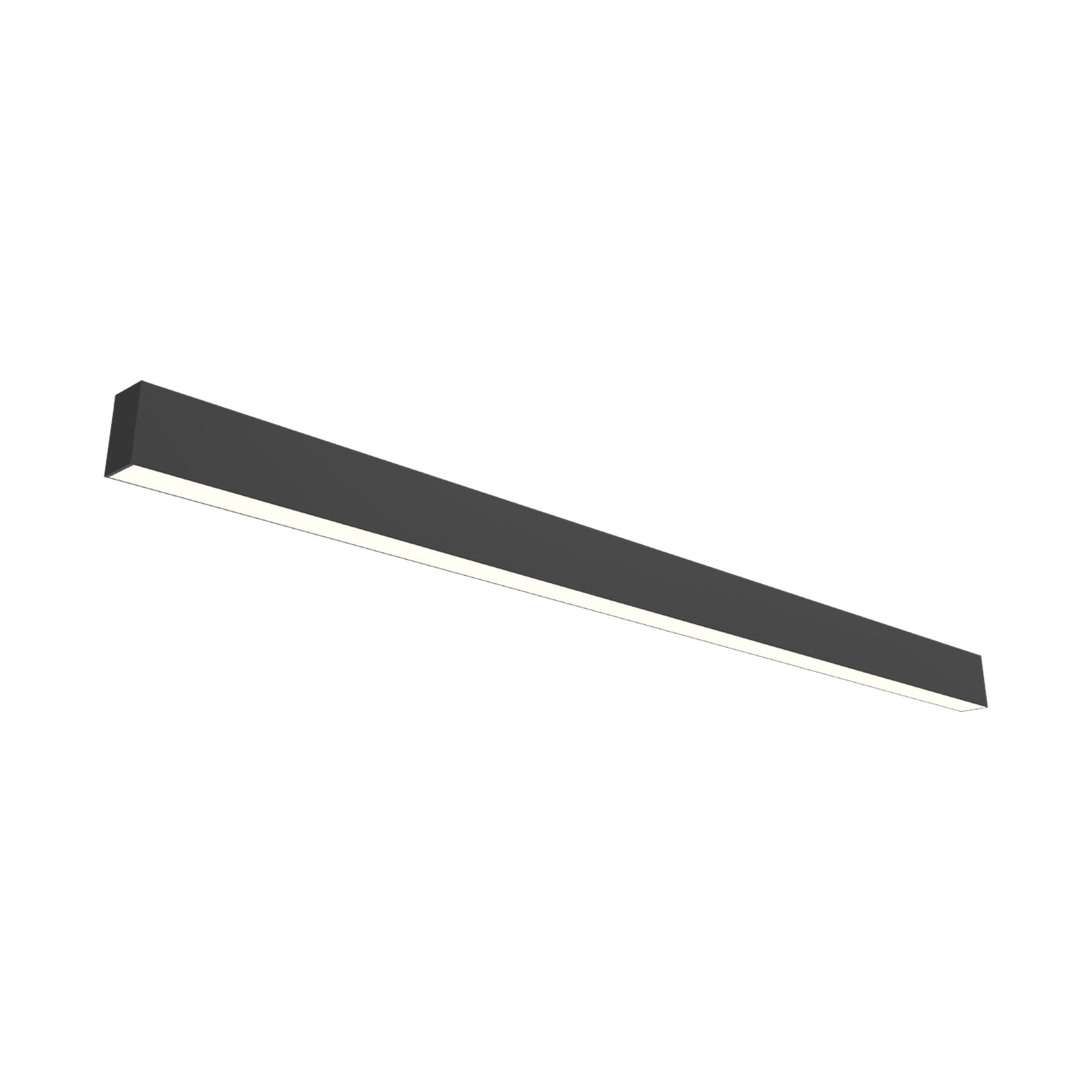

SCX1.5-6FT-UD-MCTP5-D-BK Black 6FT Up/Down LED Linear Light, Power & CCT Selectable, Seamless Linkable
Technical Specs
- :: Wattage: 24W/34W/40W/45W, selectable
- :: Voltage: 120-277VAC, 50/60Hz
- :: Lumens: Up to 4,950 lm (45W)
- :: Efficacy: 110 lm/W
- :: Color Temp: 2700K/3000K/3500K/4000K/5000K, selectable via switch inside fixture
- :: CRI: 80+
- :: Distribution: Up/down, selectable 40/60, 30/70, 20/80 or 100% down
- :: Beam Angle: 104.8° (H) x 100.5° (V)
- :: Dimming: 0-10V
- :: Power Factor: >0.95
- :: THD: ≤20%
- :: BUG Rating: B3-U3-G1
- :: Housing: Aluminum, matte black finish
- :: Lens: Opal polycarbonate, snap-in
- :: Mounting: Surface, suspended, wall, recessed or T-bar; adjustable suspension brackets on top
- :: Connection: Seamless with SCX1.5-CONKIT, sold separately; T/L/X joints on both ends
- :: Dimensions: 70.71-inch L x 1.5-inch W x 3.15-inch H
- :: Ingress Protection: IP54
- :: Operating Temp: -13°F to 104°F (-25°C to 40°C)
- :: Rated Life: 50,000 hrs
- :: Warranty: 5 years
- :: Certifications: UL Listed
Applications
- :: The Westgate SCX1.5-6FT-UD-MCTP5-D-BK is a slim, seamless linkable up/down linear light that brings a clean, architectural look to offices, lobbies, conference rooms, reception areas, hallways, retail locations, educational facilities, hotels and restaurants. Its integrated uplight washes the ceiling with selectable indirect light to soften glare and brighten the space, while field-selectable wattage and color temperature let installers dial in the right light level and look on site. As a 6FT section, it covers long runs with fewer fixtures and links to corner and connector modules to form continuous lines and custom shapes. This model features a matte black finish that makes a bold, modern statement against light ceilings and blends into open, dark or exposed ceilings, while the SCX1.5-6FT-UD-MCTP5-D offers the same performance in matte white.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 SCL-CS1-6FT SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Non-Power Side | ||
 SCL-CS1P-6FT SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Power Side with Cord | ||
SCL-CS1P-6FT-NC SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Power Side without Cord | ||
 SCL-RS-12 SPEC | 12-inch Suspension Rod Kit for SCE Series Linear Light | ||
SCL-RS-18 SPEC | 18-inch Suspension Rod Kit for SCE Series Linear Light | ||
SCL-RS-24 SPEC | 24-inch Suspension Rod Kit for SCE Series Linear Light | ||
SCL-RS-36 SPEC | 36-inch Suspension Rod Kit for SCE Series Linear Light | ||
SCL-RS-48 SPEC | 48-inch Suspension Rod Kit for SCE Series Linear Light | ||
 SCL-ASC-500FT SPEC | 1/16-inch 500FT Roll Steel Aircraft Suspension Cable | ||
 SCL-6FT-SJTW18/5 SPEC | White 6FT SJTW 18 AWG 5-Conductor Suspension Power Cord | ||
| Heavy-Duty Auxiliary Hook for up to 1/16" Aircraft Cables with Cable Adjustment | |||
 SCL-GS10 SPEC | Adj. 10ft. 1/16in Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top | ||
SCL-GS20 SPEC | Adj. 20ft. 1/16in. 1.5mm Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top | ||
 SCL-CSK-6FT SPEC | White 6FT Adjustable Suspension Canopy Complete Kit with Keyhole End Connectors |
