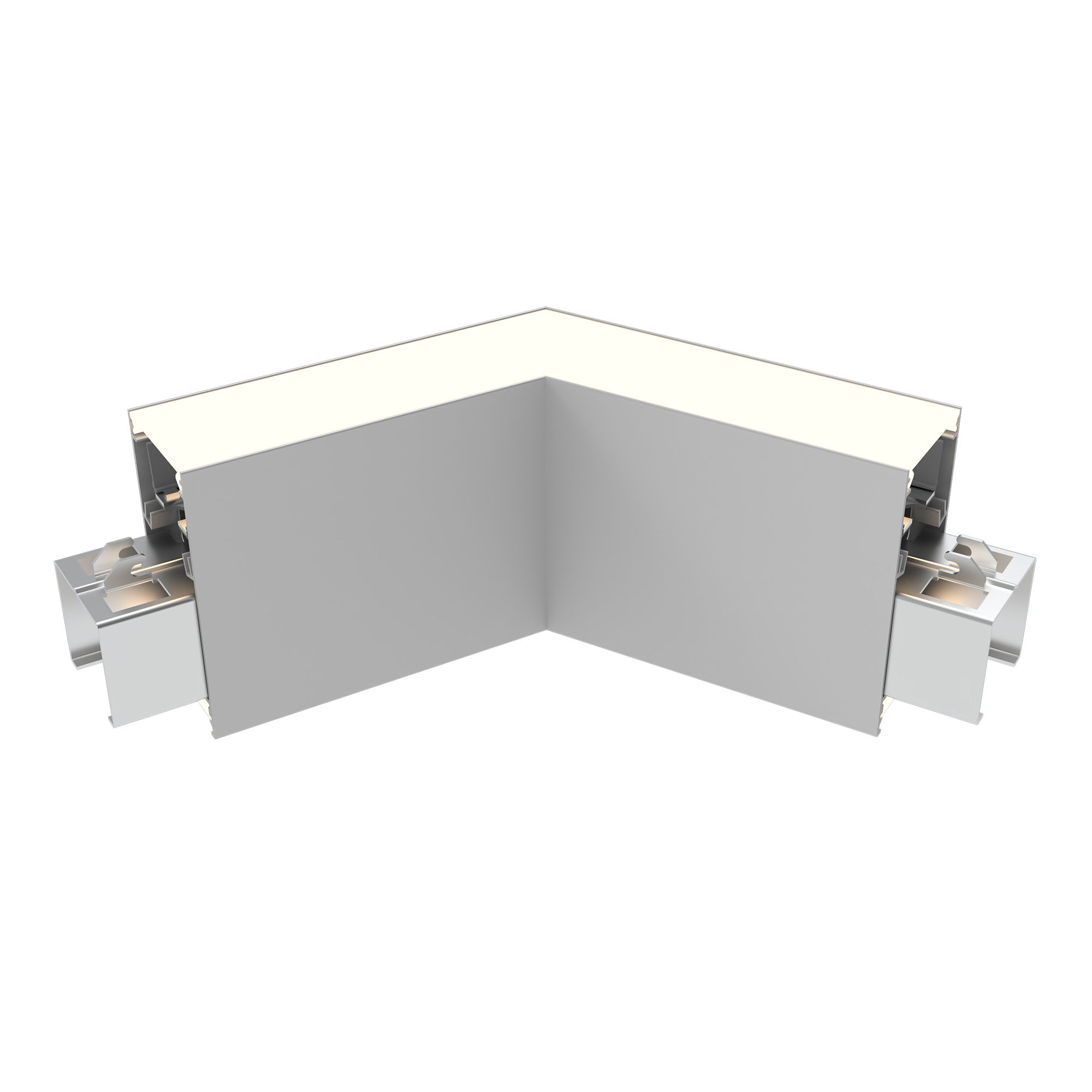

SCX1.5-C120-UD-MCT5 Matte White 120° Corner Module for SCX1.5 Up/Down LED Linear Light, 5CCT Selectable

Where to Buy

Technical Specs

  • :: 120° Corner Module for SCX1.5 Series
  • :: Lumens: 508lm / 575lm / 616lm / 660lm
  • :: CCT: 2700K / 3000K / 3500K / 4000K / 5000K selectable
  • :: Up/down light distribution
  • :: Opal polycarbonate lens
  • :: Aluminum housing, Matte White finish
  • :: Dimensions: 4.7" (L) x 4.7" (W) x 3.1" (H)
  • :: Seamless linking requires SCX1.5-CONKIT (sold separately)
  • :: 5-year warranty

Applications

  • :: The Westgate SCX1.5-C120-UD-MCT5 is a lit 120° corner module for the SCX1.5 up/down linear lighting system. It joins two runs at a 120° angle, ideal for hexagons and other geometric patterns, keeping the light continuous through the joint. Selectable color temperature matches the connected SCX1.5 fixtures. This module features a clean Matte White finish to match Matte White SCX1.5 fixtures, and the same module is also available in Matte Black.

Features

  • cUL
  • Dimming 0-10V
  • DAMP
  • MCT5
