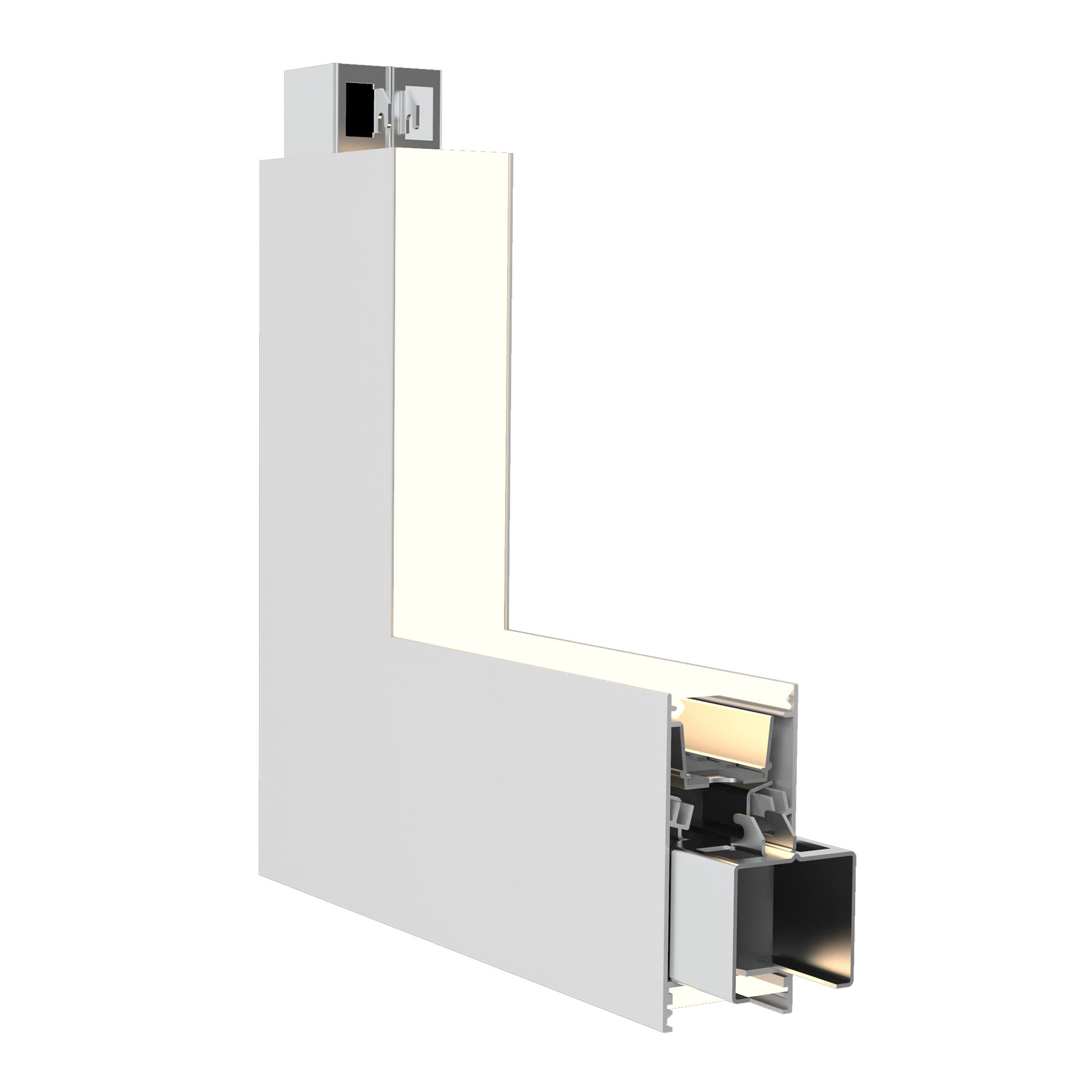

SCX1.5-IC-UD-MCT5 Matte White Inside Corner Module for SCX1.5 Up/Down LED Linear Lighting, 5CCT Selectable
Technical Specs
- :: Module Type: Inside corner joint
- :: Lumens: 629 lm to 854 lm
- :: Color Temp: 2700K/3000K/3500K/4000K/5000K, selectable
- :: Distribution: Up/down
- :: Housing: Aluminum, matte white finish
- :: Lens: Opal polycarbonate
- :: Dimensions: 8.4-inch x 8.4-inch x 3.1-inch H
- :: Connection: Links to SCX1.5 fixtures; seamless connection requires SCX1.5-CONKIT
- :: Warranty: 5 years
Applications
- :: The Westgate SCX1.5-IC-UD-MCT5 is a lit inside corner module that turns SCX1.5 linear runs around inside corners, keeping the light continuous through the change in direction. It is ideal for perimeter layouts that follow room walls, cove-style designs and custom architectural shapes in offices, lobbies, conference rooms and retail spaces. Built-in LEDs and matching color temperature options keep the corner seamless with the rest of the run. This model features a matte white finish, while the SCX1.5-IC-UD-MCT5-BK offers the same module in matte black.
