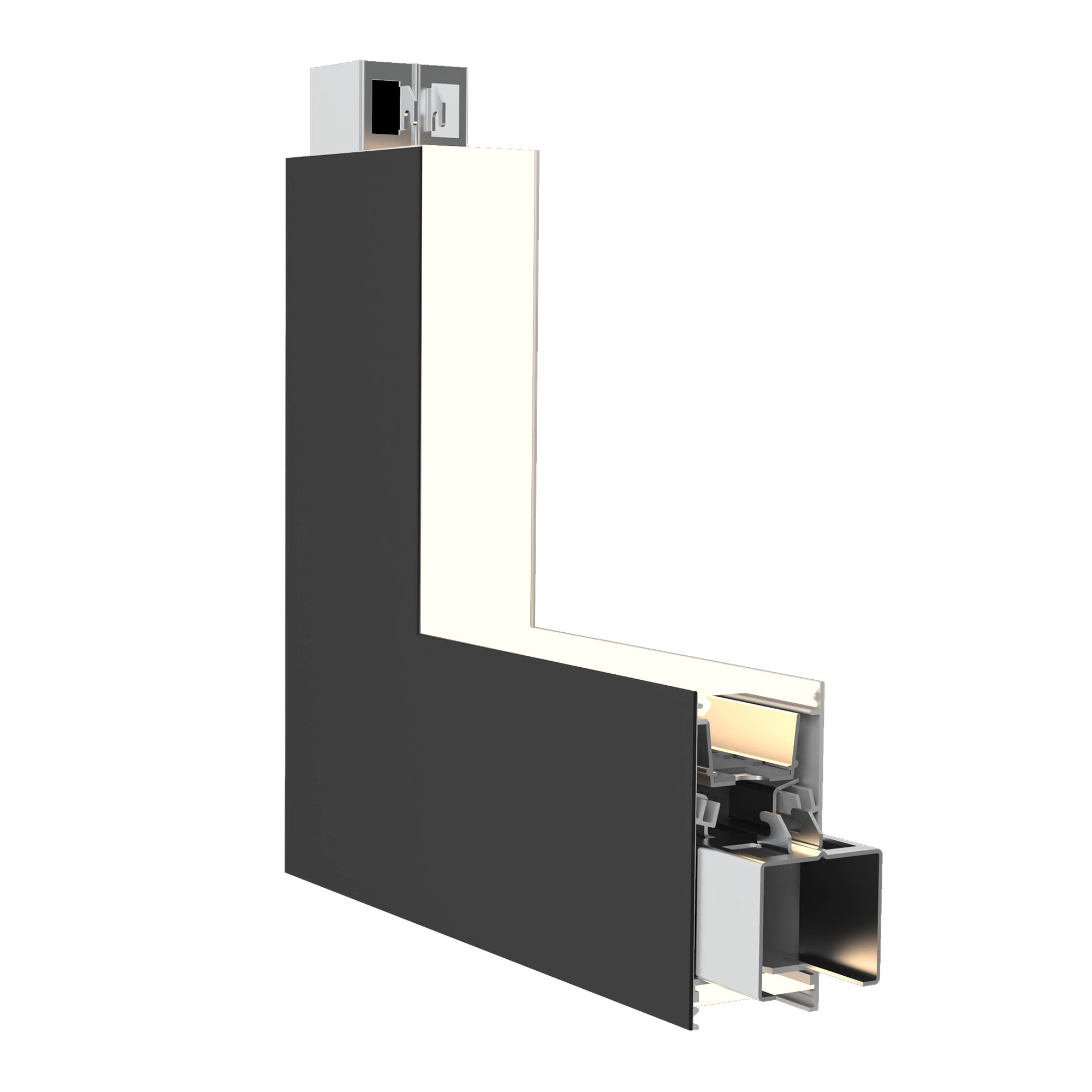

SCX1.5-IC-UD-MCT5-BK Matte Black Inside Corner Module for SCX1.5 Up/Down LED Linear Light, 5CCT Selectable

Where to Buy

Technical Specs

  • :: Inside Corner Module for SCX1.5 Series
  • :: Lumens: 629lm / 726lm / 787lm / 854lm
  • :: CCT: 2700K / 3000K / 3500K / 4000K / 5000K selectable
  • :: Up/down light distribution
  • :: Opal polycarbonate lens
  • :: Aluminum housing, Matte Black finish
  • :: Dimensions: 8.4" (L) x 8.4" (W) x 3.1" (H)
  • :: Seamless linking requires SCX1.5-CONKIT (sold separately)
  • :: 5-year warranty

Applications

  • :: The Westgate SCX1.5-IC-UD-MCT5-BK is a lit inside corner module for the SCX1.5 up/down linear lighting system. It turns runs around inside corners and follows room walls, ideal for perimeter layouts and cove-style designs, keeping the light continuous through the joint. Selectable color temperature matches the connected SCX1.5 fixtures. This module features a sleek Matte Black finish to match Matte Black SCX1.5 fixtures, and the same module is also available in Matte White.
