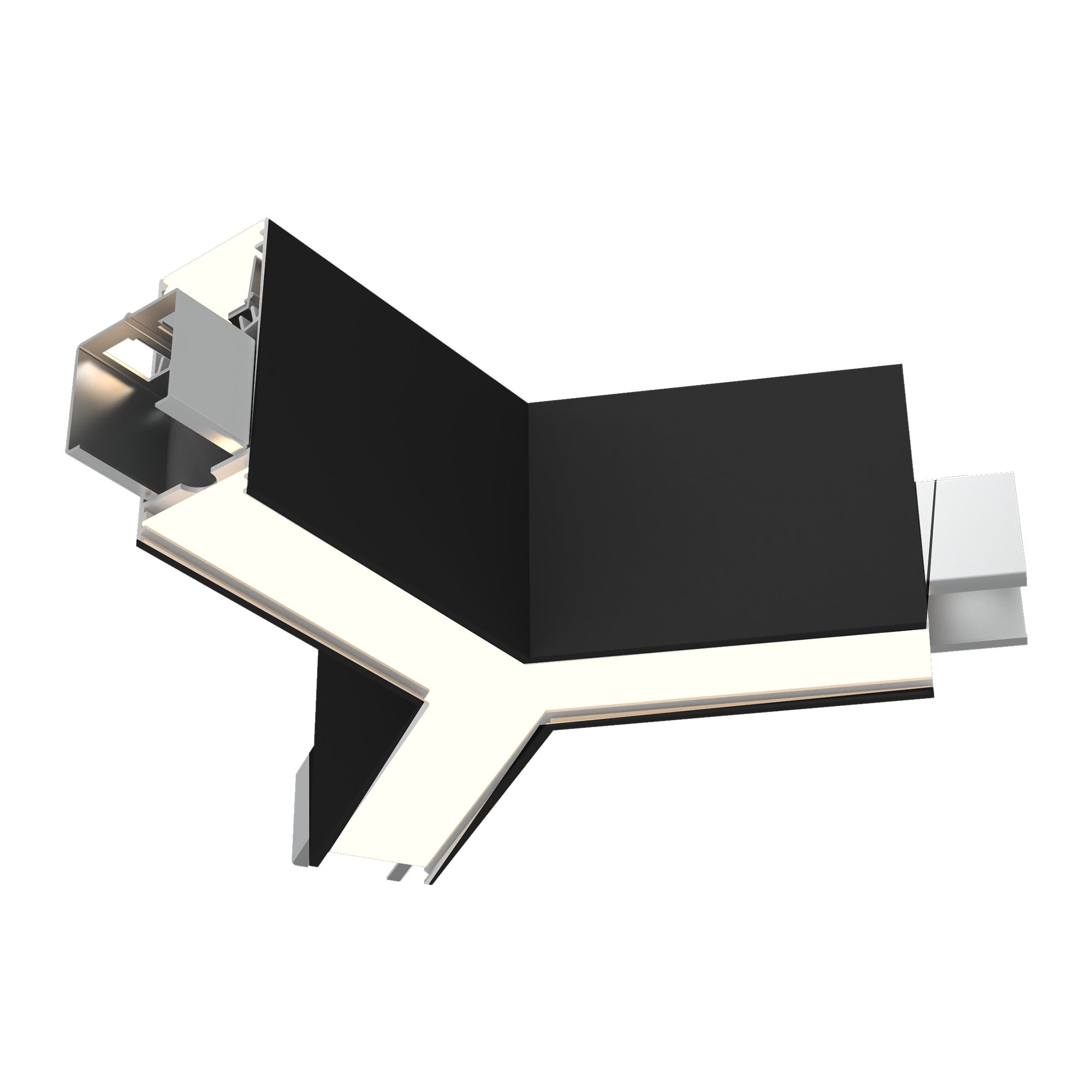

SCX1.5-Y-UD-MCT5-BK Matte Black Y Joint Module for SCX1.5 Up/Down LED Linear Light, 5CCT Selectable
Technical Specs
- :: Y Joint Module for SCX1.5 Series
- :: Lumens: 508lm / 575lm / 616lm / 660lm
- :: CCT: 2700K / 3000K / 3500K / 4000K / 5000K selectable
- :: Up/down light distribution
- :: Opal polycarbonate lens
- :: Aluminum housing, Matte Black finish
- :: Dimensions: 8.2" (L) x 7.1" (W) x 3.1" (H)
- :: Seamless linking requires SCX1.5-CONKIT (sold separately)
- :: 5-year warranty
Applications
- :: The Westgate SCX1.5-Y-UD-MCT5-BK is a lit Y joint module for the SCX1.5 up/down linear lighting system. It splits a run into three branches at 120°, ideal for honeycomb and other geometric patterns, keeping the light continuous through the joint. Selectable color temperature matches the connected SCX1.5 fixtures. This module features a sleek Matte Black finish to match Matte Black SCX1.5 fixtures, and the same module is also available in Matte White.
Features
