SCXCF-D48UD-MCTP4

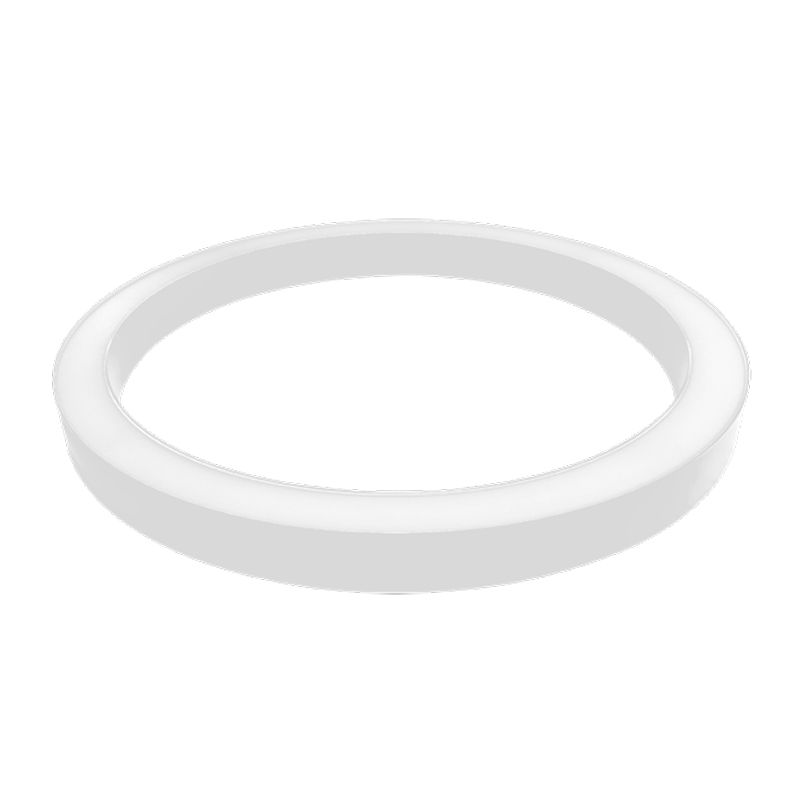

Full Circle 10ft. Chandelier, Up & Down Ratio Adjustable with Canopy & Cable, 80W/90W/100W, 3000K/3500K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V AC 50/60Hz
- :: Wattage: 80W/90W/100W
- :: LPW: 100 LM/W
- :: Aluminum Housing, White and Black Finish
- :: Three 10FT Adjustable Suspension Cables
- :: Opal Polycarbonate Lens - Direct and Indirect Light
- :: Operating Temperature: -46°F to 104°F
- :: IP Rating: IP20
- :: 5-Year Warranty
- :: Dimmable: 0~10V Dimming
- :: MCTP: Multi Color Temperature and Power (Selectable, The Switches Are Inside The Canopy)
- :: Total Lumens: 10000LM Max
- :: Color Temperatures: 3000K/3500K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80,90 Optional
- :: Beam Angle: 114°(H) x 114°(V)
- :: 50,000 Hours Rated Life
Applications
- :: Ideal For Office ,Architectural Lighting And Create Different Visual Experience.
