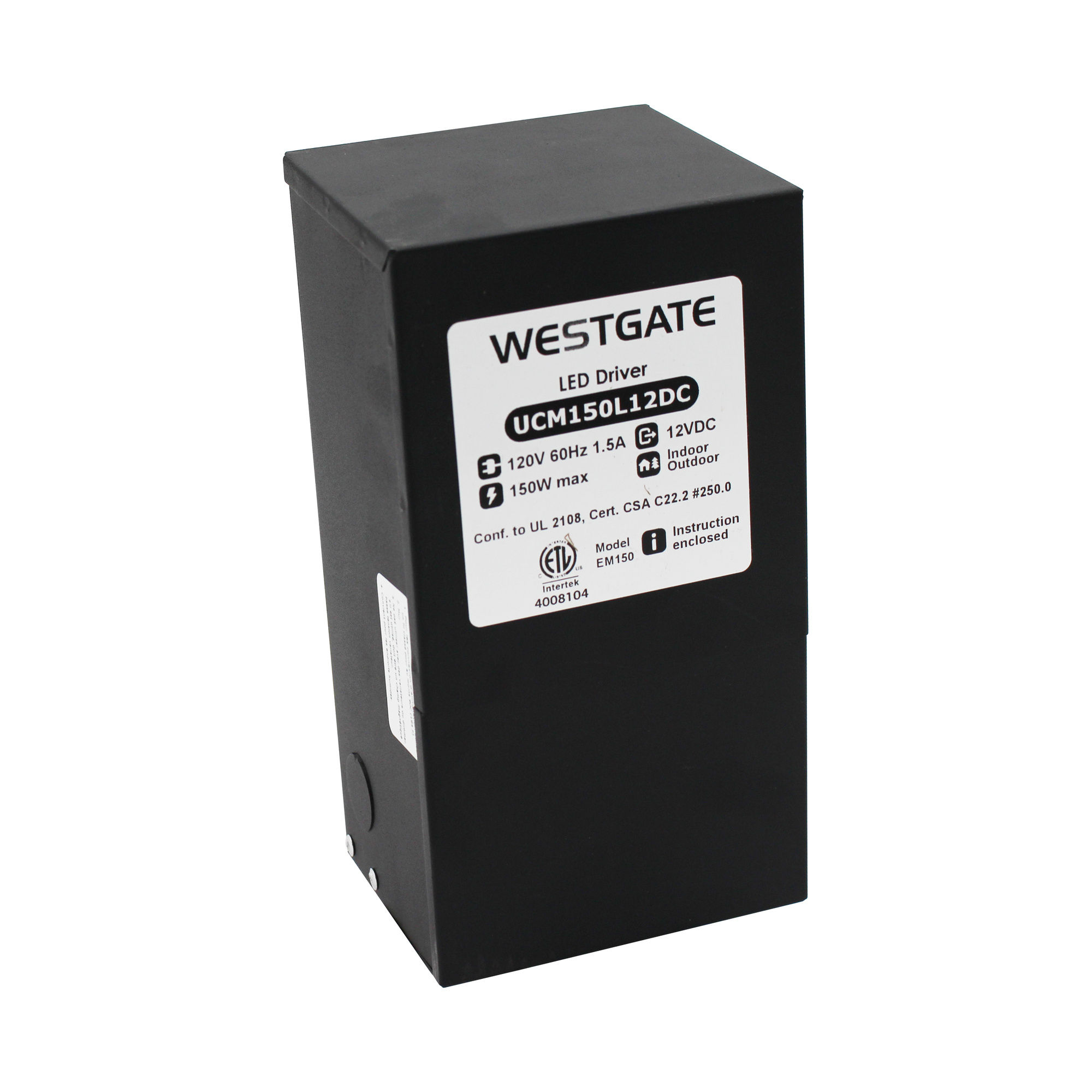

UCM-150L-12DC 150W 12VDC Magnetic Dimmable LED Driver

:: Type: Magnetic phase-cut dimmable driver, two-section bobbin (separated primary and secondary windings)
:: Input Voltage: 120V 60Hz
:: Max Input Current at Full Load: 1.5A
:: Output Voltage: 12VDC (12.7VDC no load / 11.5VDC fully loaded)
:: Max Total Wattage: 150W
:: Max Output Current: 12.5A
:: Efficiency: 90%
:: Dimming: Compatible with MLV, ELV, and CL low-voltage dimmers
:: Enclosure: Black powder-coated steel, NEMA 3R rated
:: Location Rating: Suitable for Wet Locations, outdoor rated
:: Temperature Class: B (130°C)
:: Leads Maximum Operating Temperature: 105°C
:: Input Leads: 18AWG 600V
:: Output Leads: 12AWG 300V
:: Protection: Manual-reset primary breaker 2A; secondary breaker 20A
:: Enclosure Temperature: Does not exceed 75°C at 45°C ambient, fully loaded
:: Wiring Compartment: 6 knockouts for 3/8-inch screw cable connectors
:: Weight: 8 lbs
:: Dimensions: 5-inch x 4-1/8-inch x 4-inch (per hotsheet; see FLAGS)
:: Certifications: ETL Listed; UL STD. 2108; CSA C22.2 No. 250.

:: The UCM-150L-12DC drives large 12-volt LED installations with smooth magnetic dimming and dependable outdoor-rated construction, well suited to long exterior ribbon runs, landscape and architectural lighting, and hard-wired projects that demand higher output. Its larger NEMA 3R housing and two-section bobbin support heavier loads. Within the 12V range, this 150W model steps well above the compact 20W and 50W drivers, sharing the high-capacity housing with the 300W UCM-300L-12DC.
