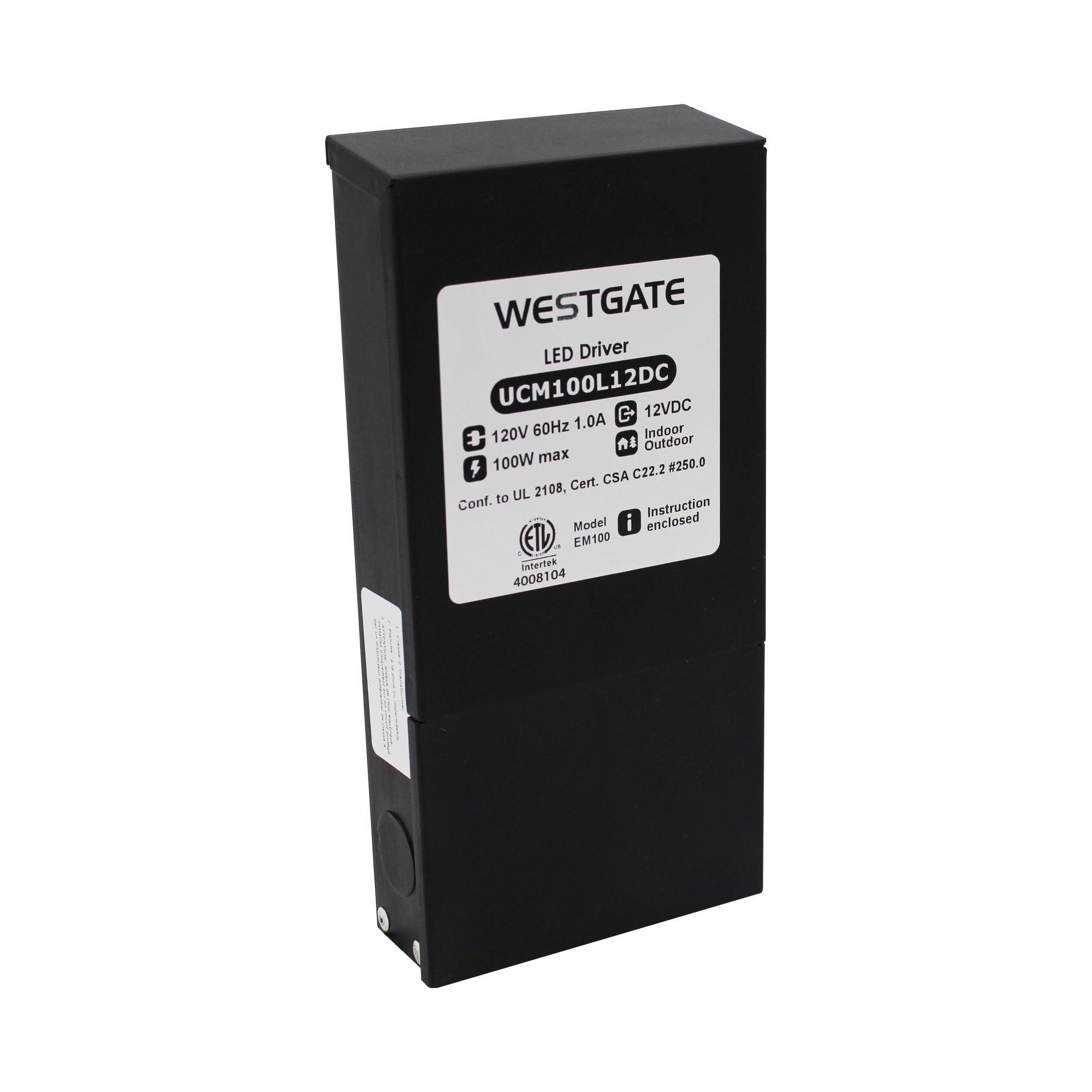

UCM-DC-SERIES UCM Series Magnetic Dimmable Low-Voltage LED Drivers
Technical Specs
- :: Type: Magnetic phase-cut dimmable low-voltage driver (transformer)
- :: Input Voltage: 120V 60Hz
- :: Output: Single circuit, 12VDC or 24VDC (by model)
- :: Wattage Range: 20W to 300W maximum (by model)
- :: Dimming: Compatible with MLV, ELV, and CL low-voltage magnetic dimmers (dimmer minimum load must be met)
- :: Efficiency: 83% to 90% (by model)
- :: Enclosure: Black powder-coated steel, NEMA 3R rated
- :: Location Rating: Suitable for Wet Locations, outdoor rated
- :: Temperature Class: B (130°C)
- :: Leads Maximum Operating Temperature: 105°C
- :: Input Leads: 18AWG 600V
- :: Output Leads: 18AWG 300V (20W to 60W) / 12AWG 300V (150W to 300W)
- :: Protection: Primary and secondary breakers (auto-reset on 20W to 60W; manual reset on 150W to 300W)
- :: Wiring Compartment: Knockouts for 3/8-inch screw cable connectors
- :: Certifications: ETL Listed; UL STD. 1310 Class 2 (20W to 60W models) / UL STD. 2108 (150W to 300W models); CSA C22.2
Applications
- :: The UCM Series powers low-voltage LED ribbon and strip installations with smooth, full-range magnetic dimming and a rugged outdoor-rated enclosure. Westgate built this line for wet-location and outdoor projects, under-cabinet and cove lighting, landscape and architectural accent runs, and any hard-wired installation where quiet, dependable low-voltage power is required. The compact housings tuck into low-profile spaces, while the 12V and 24V options and the wide 20W to 300W range let designers match the driver to nearly any LED load.
- Variations
- Q & A (1)
| Product Name | Max Load | Dimensions | Features | |
|---|---|---|---|---|
 UCM-20L-12DC  BRCH SPEC | 20W | 2-1/8” x 7-3/8” x 1-1/2” |  | |
 UCM-40L-12DC BRCH | 40W | 2-1/8” x 7-3/8” x 1-1/2” | | |
UCM-50L-12DC BRCH SPEC | 50W | 2-1/8” x 7-3/8” x 1-1/2” | | |
 UCM-100L-12DC BRCH | 100W | 4” x 8-1/4” x 1-1/2” | | |
 UCM-150L-12DC BRCH SPEC | 150W | 4-1/8” x 8” x 3-1/4” | | |
 UCM-300L-12DC SPEC BRCH | 300W | 4-1/8” x 8” x 3-1/4” | | |
UCM-20L-24DC BRCH SPEC | 20W | 2-1/8” x 7-3/8” x 1-1/2” | | |
UCM-40L-24DC BRCH SPEC | 40W | 2-1/8” x 7-3/8” x 1-1/2” | | |
UCM-50L-24DC BRCH SPEC | 50W | 2-1/8” x 7-3/8” x 1-1/2” | | |
UCM-100L-24DC BRCH | 100W | 4” x 8-1/4” x 1-1/2” | | |
UCM-150L-24DC BRCH SPEC | 150W | 4-1/8” x 8” x 3-1/4” | | |
UCM-300L-24DC SPEC BRCH | 300W | 5" x 4-1/8" x 4" | | |
UCM-96L-24V SPEC BRCH | 96W | 5" x 4-1/8" x 2" | |
