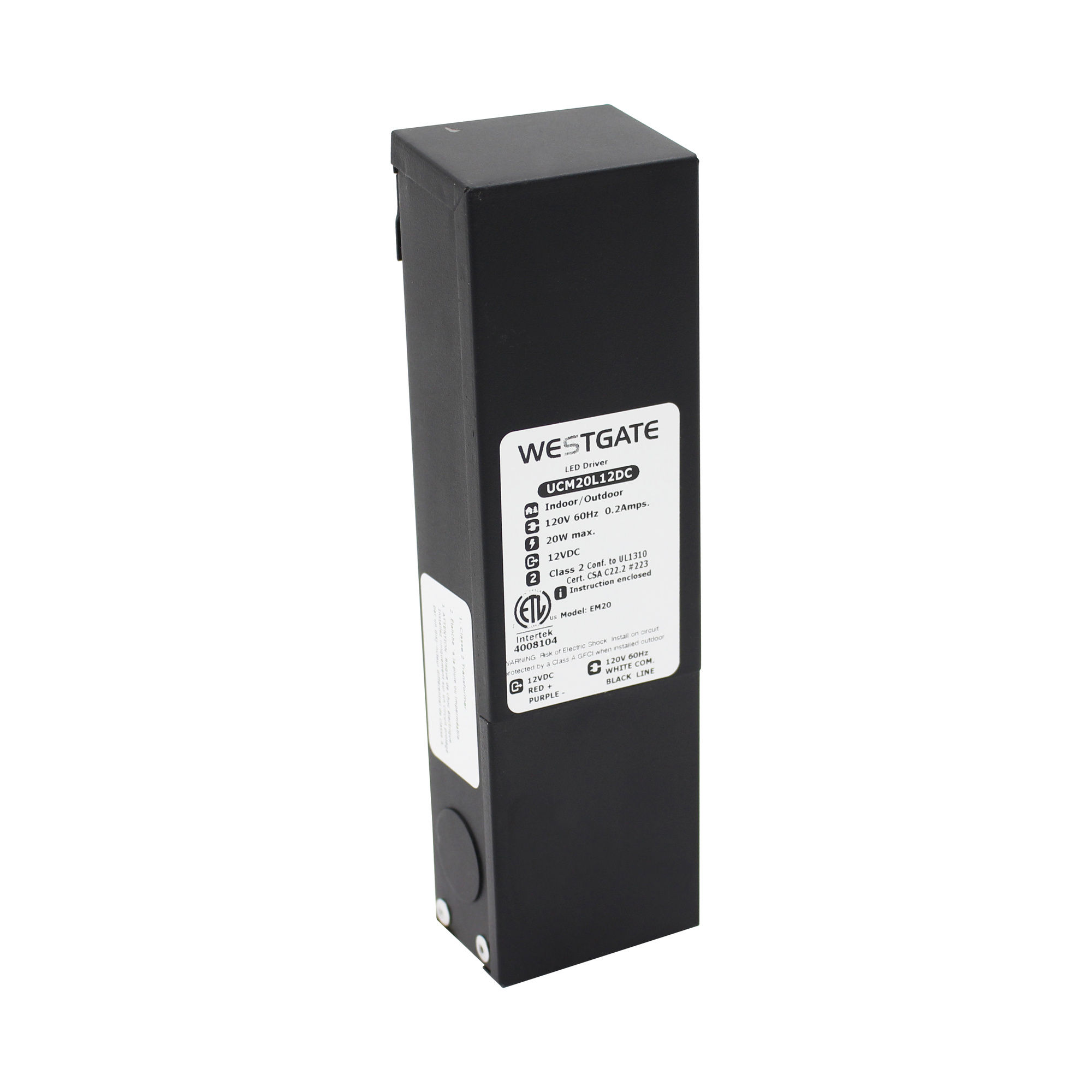

UCM-20L-12DC 20W 12VDC Magnetic Dimmable LED Driver

:: Type: Class 2 magnetic phase-cut dimmable driver
:: Input Voltage: 120V 60Hz
:: Max Input Current at Full Load: 0.2A
:: Output Voltage: 12VDC (13.2VDC no load / 11.6VDC fully loaded)
:: Max Total Wattage: 20W
:: Max Output Current: 1.7A
:: Efficiency: 85%
:: Dimming: Compatible with MLV, ELV, and CL low-voltage dimmers
:: Enclosure: Black powder-coated steel, NEMA 3R rated
:: Location Rating: Suitable for Wet Locations, outdoor rated
:: Temperature Class: B (130°C)
:: Leads Maximum Operating Temperature: 105°C
:: Input Leads: 18AWG 600V
:: Output Leads: 18AWG 300V
:: Protection: Thermal self-reset primary breaker 0.8A; secondary breaker 3A
:: Enclosure Temperature: Does not exceed 65°C at 45°C ambient, fully loaded
:: Wiring Compartment: 2 knockouts for 3/8-inch screw cable connectors
:: Weight: 1.9 lbs
:: Dimensions: 5-inch x 2-1/8-inch x 2-inch (per hotsheet; see FLAGS)
:: Certifications: ETL Listed; UL STD. 1310 Class 2; CSA C22.2 No. 223

:: The UCM-20L-12DC delivers reliable 12-volt power with smooth magnetic dimming, ideal for outdoor and wet-location LED ribbon runs, under-cabinet lighting, and compact accent installations where space is tight. Its NEMA 3R steel housing stands up to exterior conditions while staying whisper-quiet. Within the series, this is the smallest 12V model at 20W, suited to short low-load runs, differing from higher-wattage 12V drivers like the UCM-50L-12DC and UCM-150L-12DC that feed longer or denser LED loads.
