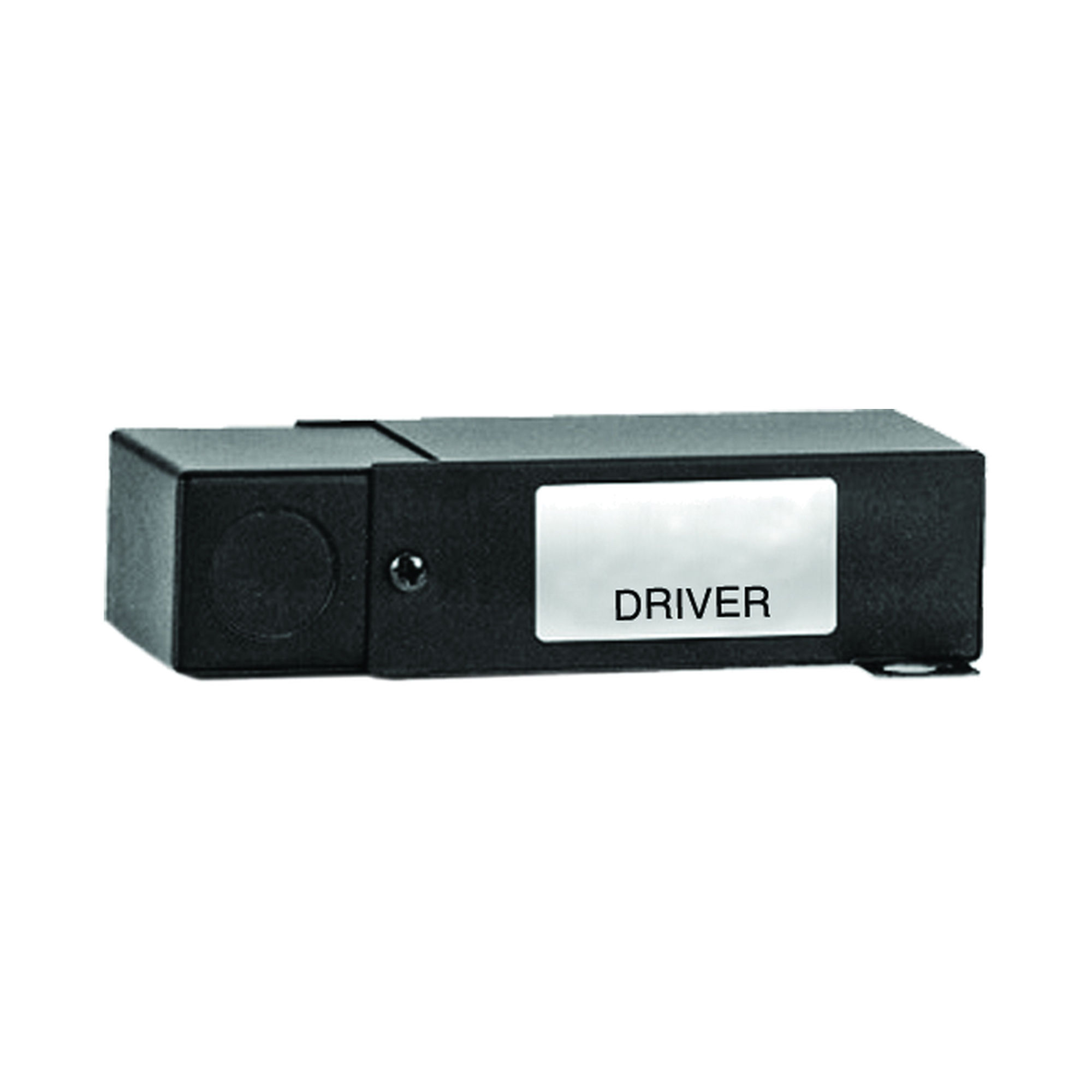

UCM-40L-24DC 40W 24VDC Magnetic Dimmable LED Driver

:: Type: Class 2 magnetic phase-cut dimmable driver
:: Input Voltage: 120V 60Hz
:: Max Input Current at Full Load: 0.4A
:: Output Voltage: 24VDC (26.4VDC no load / 23.5VDC fully loaded)
:: Max Total Wattage: 40W
:: Max Output Current: 1.7A
:: Efficiency: 85%
:: Dimming: Compatible with MLV, ELV, and CL low-voltage dimmers
:: Enclosure: Black powder-coated steel, NEMA 3R rated
:: Location Rating: Suitable for Wet Locations, outdoor rated
:: Temperature Class: B (130°C)
:: Leads Maximum Operating Temperature: 105°C
:: Input Leads: 18AWG 600V
:: Output Leads: 18AWG 300V
:: Protection: Thermal self-reset primary breaker 1.25A; secondary breaker 3A
:: Enclosure Temperature: Does not exceed 75°C at 45°C ambient, fully loaded
:: Wiring Compartment: 2 knockouts for 3/8-inch screw cable connectors
:: Weight: 2.1 lbs
:: Dimensions: 5-inch x 2-1/8-inch x 2-inch (per hotsheet; see FLAGS)
:: Certifications: ETL Listed; UL STD. 1310 Class 2; CSA C22.2 No. 223 (model EM50)

:: The UCM-40L-24DC provides dependable 24-volt power with full-range magnetic dimming for outdoor and wet-location LED ribbon, under-cabinet runs, and accent lighting that benefits from 24V efficiency over longer spans. Its NEMA 3R enclosure suits exterior and hard-wired projects. In the 24V lineup, this 40W model sits between the 20W UCM-20L-24DC and the 50W and 60W drivers, giving moderate runs added capacity in the same compact housing.
