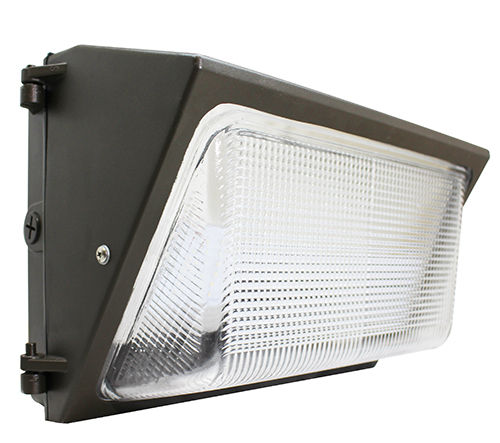

WML-60CW
LED WALL PACKS, 120-277V, 60W, 5000K
Technical Specs
- :: Die-cast aluminum with powder coat finish (Dark Bronze), optimized for LED
- :: same footprint as traditionalHID wall paks
- :: Prismatic borosilicate glass lens
- :: Four 1/2" hubs: 1 top. 1 on each side, 1 rear
- :: Chip: Lumileds LEDs
- :: CRI: 80
- :: Power Factor: 95%
- :: Operating Temp:-4°F to 104°F
- :: 70,000 hour rated life
- :: 7-year warranty
- :: Suitable for Wet Locations, IP54
Applications
- :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- :: Replace existing HID flood lights/ wall packs
- :: Great for use with photocell
